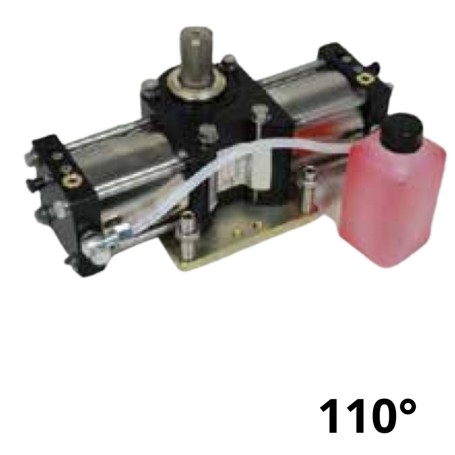

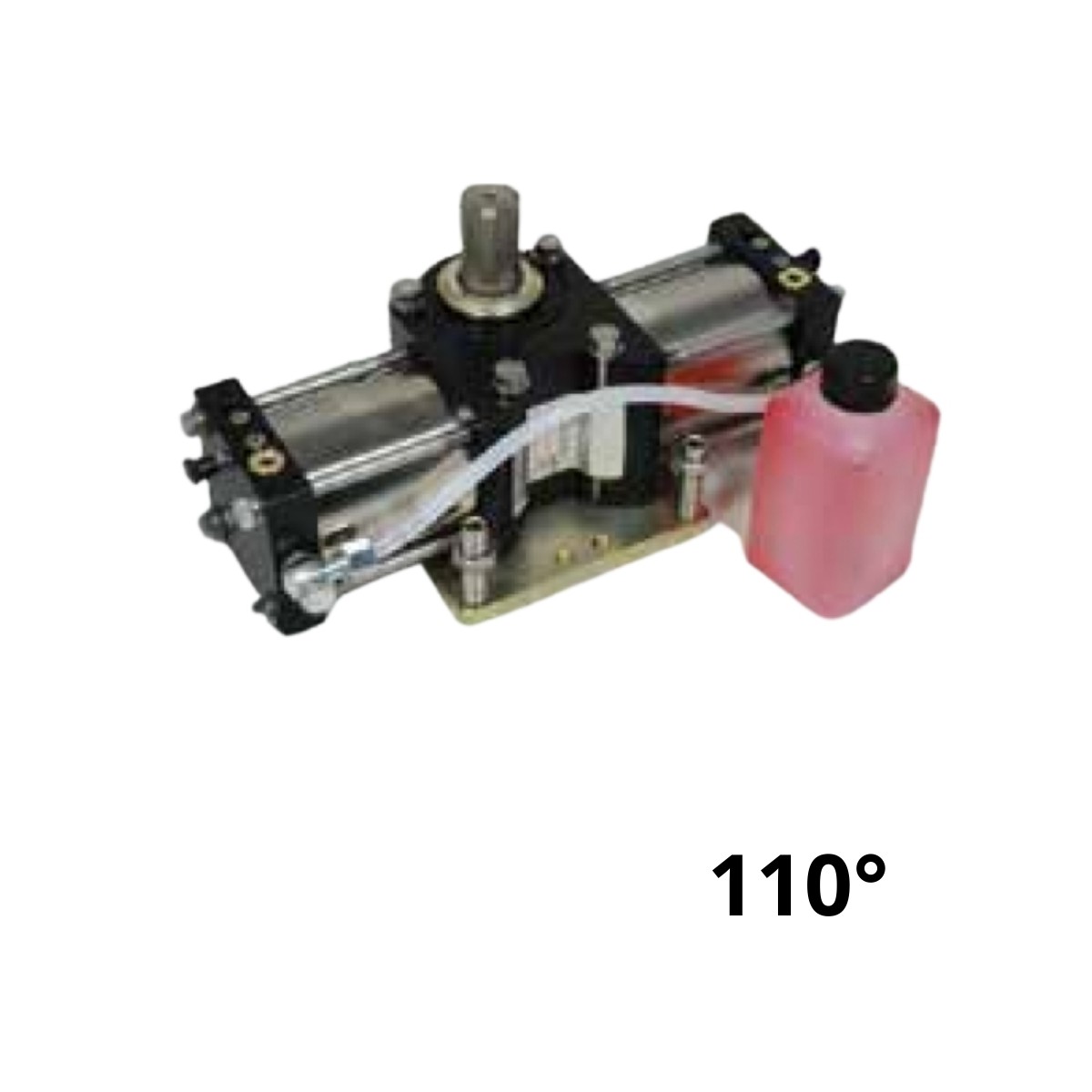

UNI-HYD-110 – AT175 APRIMATIC compatible hydraulic jack with opening/closing slowdowns

The UNI-HYD-110 is a latest-generation hydraulic jack designed to replace the AT175 APRIMATIC operator directly and without modification.
Thanks to the identical output pinion and the corresponding dimensions, assembly is immediate and does not require structural adaptations or modifications on the existing system.

This jack is equipped with both opening and closing slowdowns, a feature that ensures smooth, silent movement and longer system life. It is the ideal solution for those who need a reliable and compatible spare part, maintaining the performance and improving the security of the automatic gate.

Key features:

• Direct compatibility with APRIMATIC AT175

• Same sprocket and same size as the original

• Integrated opening and closing deceleration

• Installation without modification to the existing system

• Robust construction for intensive use

• Reliability and long life

Specifications:

• Power supply: 230 V

• Opening angle: 110°

• Thrust force up to 250 Nm

• Supported leaf weight: up to 500 Kg

• Max leaf length: 2.5 m

• 90° opening time: 16 seconds

• Degree of protection: IP67

• Operating temperature: -20°C ÷ +55°C

• Manual key release for emergency

• Supplied with leveling screws and hydraulic oil can (without canister and spline attachment)
