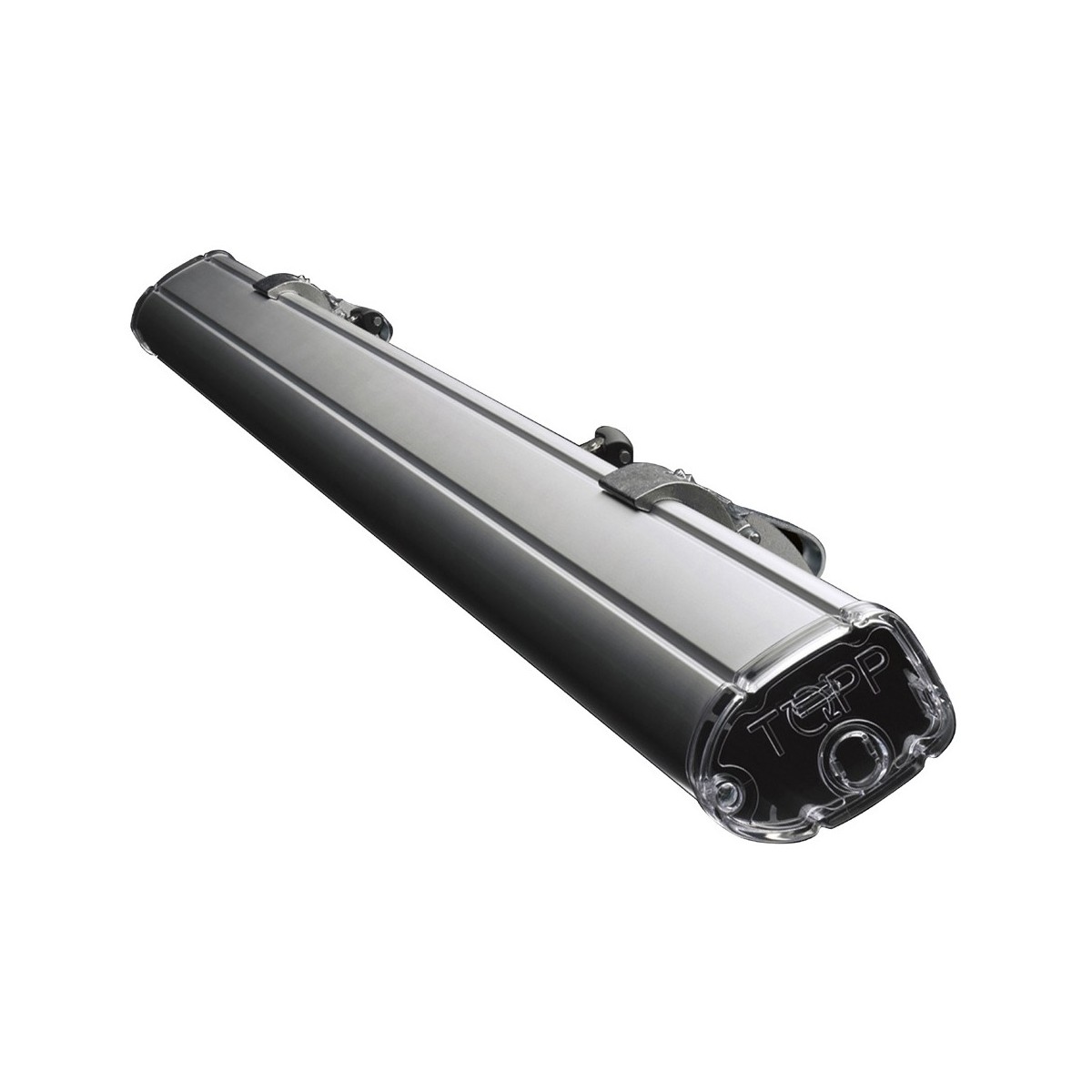

Double chain motor actuator for windows TOPP C240 230V 3A5000005579 360mm
Double chain actuator C240 230V - 2 thrust points (Length from 3010mm to 4000mm) Stroke 36cm. Application Protrude
Lowest price within 30 days before promotion. €404.23
Fast delivery
We ship available products within 24/48 hours
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
TOPP
Item Number: 3A5#000005579
MOD.: C240 230V
TYPE: ACTUATOR
LINE: C240
GENERAL DESCRIPTION SERIES C240:
Double chain actuator
Thrust force 400 N - Stroke 360 mm
Electric actuator TOPP model C240 with double articulated chain with double mesh, contained in elegant extruded aluminum with length, on request, from 1200 mm to 4000 mm, complete with support and accessories for protruding opening.
Operating at 230 V ~ 50 Hz, or alternatively at 24 VDC. Maximum applicable load 400 N. Quick coupling attachments to the frame. Max stroke 360 mm.
CE marked luminaire.
Advantages:
Customization of the length of the extrusion according to the width of the window (international patent).
Cable supplied with possibility of output from both sides.
Innovative design.
SPECIFICATIONS:
Supply voltage: 230V~50Hz
Maximum applicable thrust load: 400 N
Maximum applicable tensile load: 300 N
Stroke: 360 mm
Absorption: 0,22 A
No-load travel speed: 8 mms
Empty stroke duration: 46 s
Double electrical insulation: yes
Type of service: S2 of 4 min
Operating temperature: - 5°C + 50°C
Degree of protection of electrical devices: IP 30
Adjustment of the connection to the frame: not necessary
Parallel connection of 2 or more actuators: yes
End switch: Electronic at the opening, with amperometric absorption at the end
Item Number: 3A5#000005579
MOD.: C240 230V
TYPE: ACTUATOR
LINE: C240
GENERAL DESCRIPTION SERIES C240:
Double chain actuator
Thrust force 400 N - Stroke 360 mm
Electric actuator TOPP model C240 with double articulated chain with double mesh, contained in elegant extruded aluminum with length, on request, from 1200 mm to 4000 mm, complete with support and accessories for protruding opening.
Operating at 230 V ~ 50 Hz, or alternatively at 24 VDC. Maximum applicable load 400 N. Quick coupling attachments to the frame. Max stroke 360 mm.
CE marked luminaire.
Advantages:
Customization of the length of the extrusion according to the width of the window (international patent).
Cable supplied with possibility of output from both sides.
Innovative design.
SPECIFICATIONS:
Supply voltage: 230V~50Hz
Maximum applicable thrust load: 400 N
Maximum applicable tensile load: 300 N
Stroke: 360 mm
Absorption: 0,22 A
No-load travel speed: 8 mms
Empty stroke duration: 46 s
Double electrical insulation: yes
Type of service: S2 of 4 min
Operating temperature: - 5°C + 50°C
Degree of protection of electrical devices: IP 30
Adjustment of the connection to the frame: not necessary
Parallel connection of 2 or more actuators: yes
End switch: Electronic at the opening, with amperometric absorption at the end
