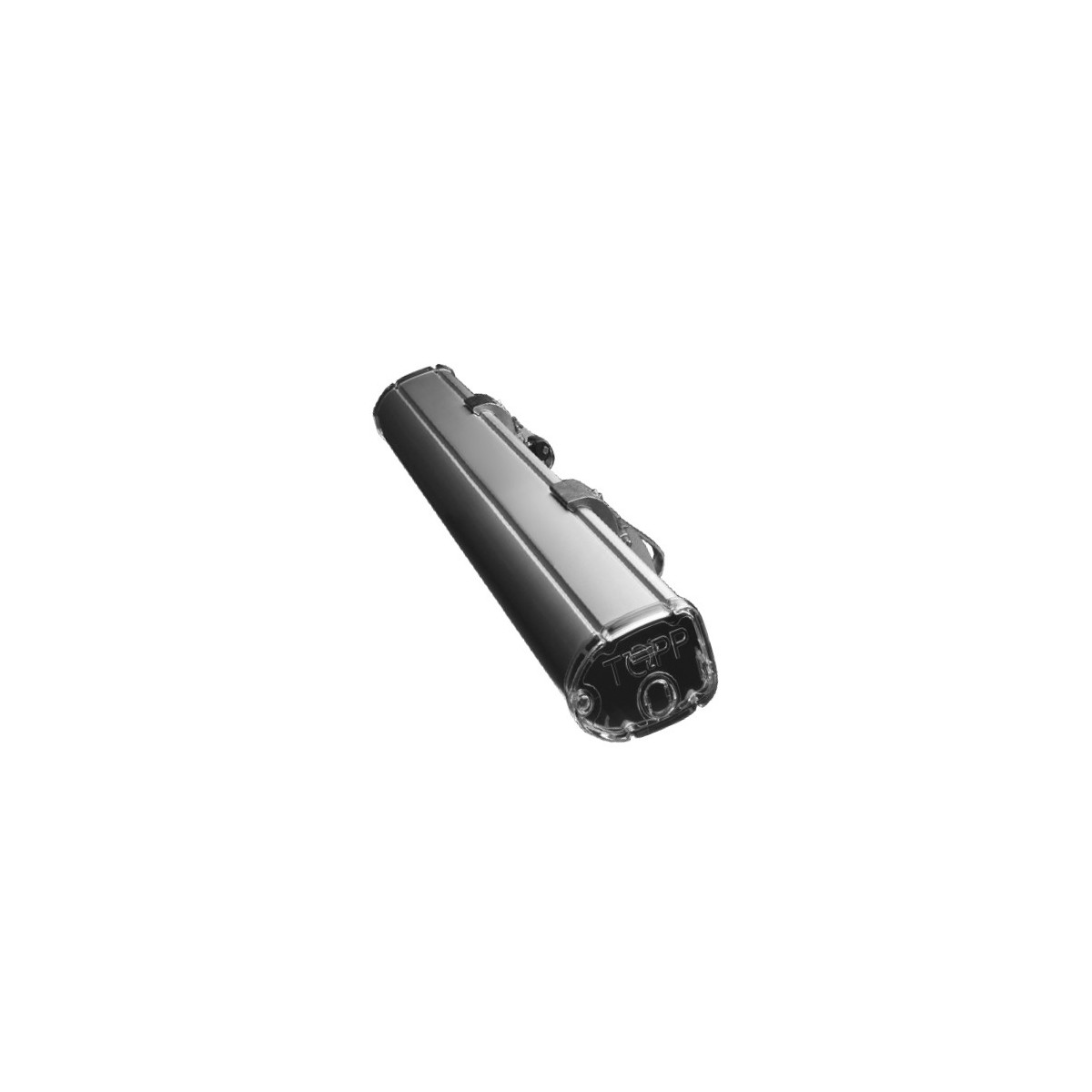

Chain motor actuator for vasistas windows TOPP C130 230V 3A6000005753

TOPP

Item Number: 3A6#000005753
MOD.: C130 230V
TYPE: ACTUATOR
LINE: C130

GENERAL DESCRIPTION SERIES C130:

Chain actuator
Thrust force 300 N - Max stroke 360 mm

Electric actuator TOPP model C130 with double link articulated chain, contained in elegant extruded aluminum with length, on request, from 600mm to 1200mm, complete with support and accessories for protruding opening.
Operation at 230V 50Hz, or, alternatively, at 24V d.c. Maximum applicable load 300N. Quick attachment to the frame. Stroke 360mm.
CE marked luminaire.

Advantages:
Customization of the length of the extrusion according to the width of the window (international patent).
Cable supplied with possibility of output from both sides.
Innovative design.

SPECIFICATIONS:
Supply voltage: 230V~50Hz
Maximum applicable thrust load: 300 N
Maximum applicable tensile load: 200 N
Stroke: 360 mm
Absorption: 0,12 A
No-load travel speed: 8 mm/s
Empty stroke duration: 46 s
Double electrical insulation: yes
Type of service: S2 of 4 min
Operating temperature: - 5°C + 50°C
Degree of protection of electrical devices: IP 30
Adjustment of the connection to the frame: not necessary
Parallel connection of 2 or more actuators: yes
End switch: Electronic at the opening, with amperometric absorption at the end
