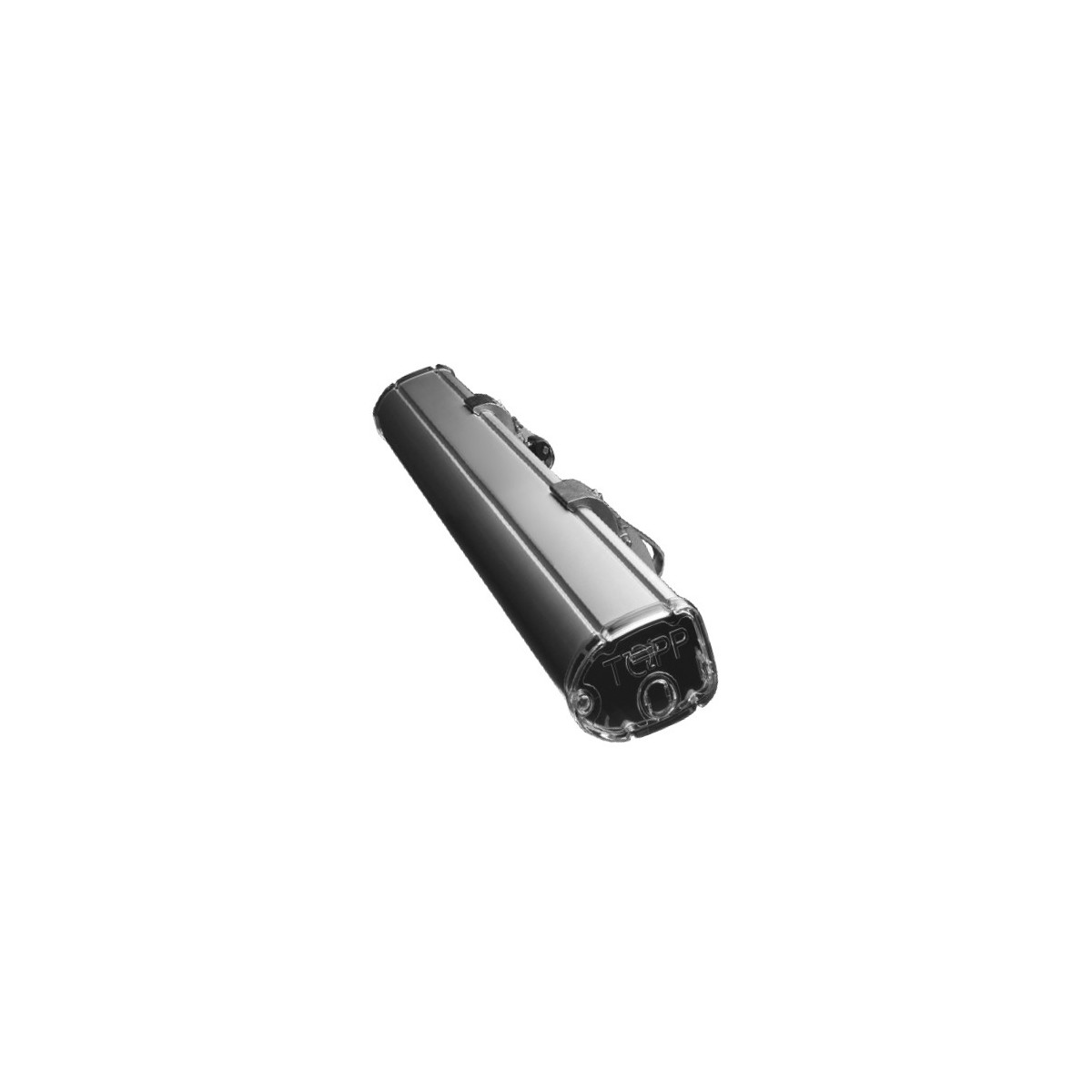

Chain motor actuator for vasistas windows TOPP C130 24V 3A6000005597
Chain actuator C130 24V - 1 push point (Length from 910mm to 1200mm) Stroke 360mm. Application Protrude
Lowest price within 30 days before promotion. €149.38
Fast delivery
We ship available products within 24/48 hours
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
TOPP
Item Number: 3A6#000005597
MOD.: C130 24V
TYPE: ACTUATOR
LINE: C130
GENERAL DESCRIPTION SERIES C130:
Chain actuator
Thrust force 300 N - Max stroke 360 mm
Electric actuator TOPP model C130 with double link articulated chain, contained in elegant extruded aluminum with length, on request, from 600mm to 1200mm, complete with support and accessories for protruding opening.
Operation at 230V 50Hz, or, alternatively, at 24V d.c. Maximum applicable load 300N. Quick attachment to the frame. Stroke 360mm.
CE marked luminaire.
Advantages:
Customization of the length of the extrusion according to the width of the window (international patent).
Cable supplied with possibility of output from both sides.
Innovative design.
SPECIFICATIONS:
Supply voltage: min 21V ~ max 28VDC
Maximum applicable thrust load: 300 N
Maximum applicable tensile load: 200 N
Stroke: 360 mm
Absorption: 0,43 A
No-load travel speed: 7,5 mm/s
Empty stroke duration: 48 s
Double electrical insulation: -
Type of service: S2 of 4 min
Operating temperature: - 5°C + 50°C
Degree of protection of electrical devices: IP 30
Adjustment of the connection to the frame: not necessary
Parallel connection of 2 or more actuators: yes
End switch: Electronic at the opening, with amperometric absorption at the end
Item Number: 3A6#000005597
MOD.: C130 24V
TYPE: ACTUATOR
LINE: C130
GENERAL DESCRIPTION SERIES C130:
Chain actuator
Thrust force 300 N - Max stroke 360 mm
Electric actuator TOPP model C130 with double link articulated chain, contained in elegant extruded aluminum with length, on request, from 600mm to 1200mm, complete with support and accessories for protruding opening.
Operation at 230V 50Hz, or, alternatively, at 24V d.c. Maximum applicable load 300N. Quick attachment to the frame. Stroke 360mm.
CE marked luminaire.
Advantages:
Customization of the length of the extrusion according to the width of the window (international patent).
Cable supplied with possibility of output from both sides.
Innovative design.
SPECIFICATIONS:
Supply voltage: min 21V ~ max 28VDC
Maximum applicable thrust load: 300 N
Maximum applicable tensile load: 200 N
Stroke: 360 mm
Absorption: 0,43 A
No-load travel speed: 7,5 mm/s
Empty stroke duration: 48 s
Double electrical insulation: -
Type of service: S2 of 4 min
Operating temperature: - 5°C + 50°C
Degree of protection of electrical devices: IP 30
Adjustment of the connection to the frame: not necessary
Parallel connection of 2 or more actuators: yes
End switch: Electronic at the opening, with amperometric absorption at the end
