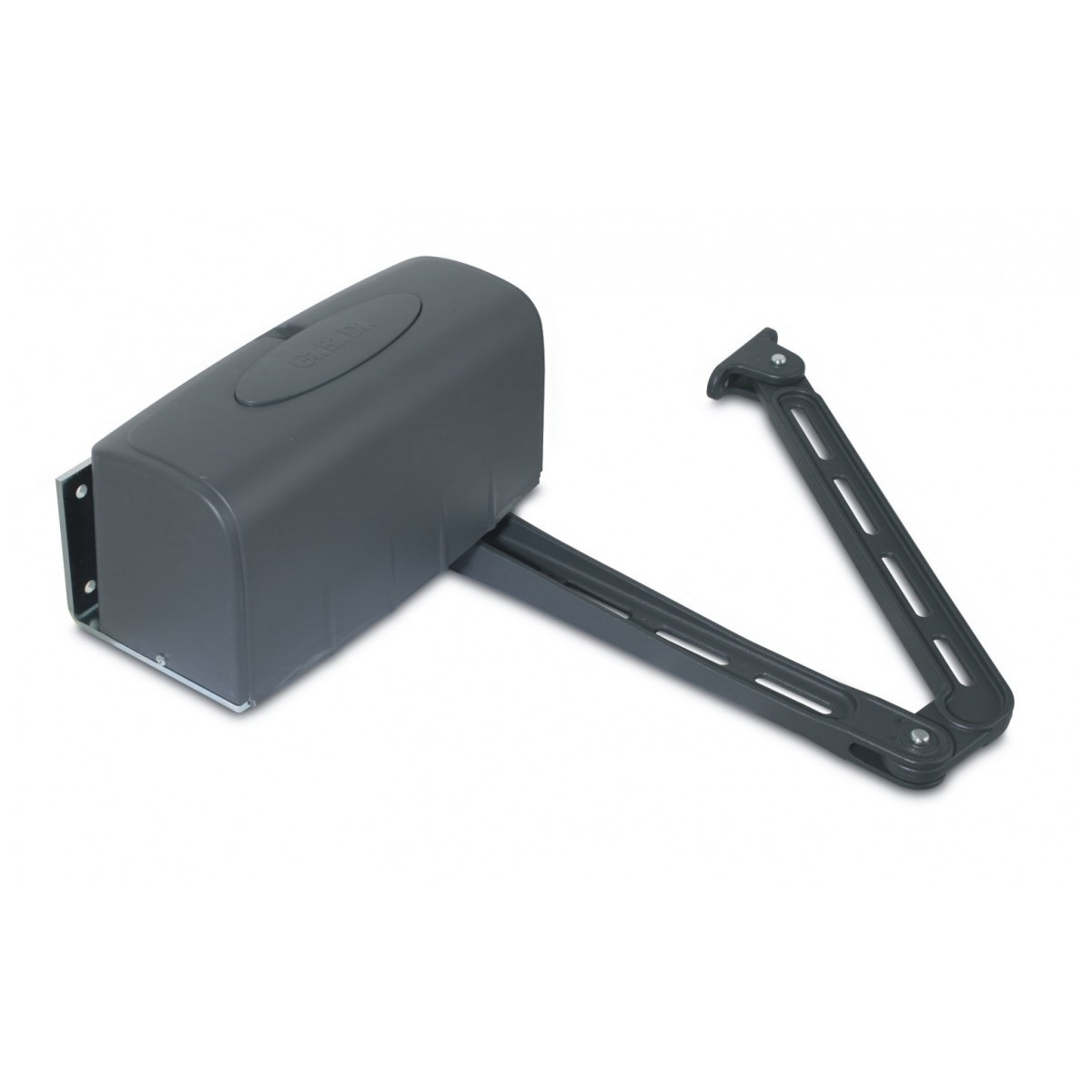

ART5000 (30510) – Electromechanical GIBIDI articulated arm operator for swing gates up to 3 meters

The GIBIDI ART5000 operator (SKU 30510) is part of the ART series, a professional range of electromechanical articulated arm motors designed for medium-sized swing gates. Perfect for residential applications, it guarantees consistent performance, long life and ease of assembly.

Quick and easy installation

Thanks to the dedicated fixing plate, ART5000 is installed quickly without welding. The limit switches are integrated and pre-wired, further simplifying installation and reducing working time.

Quiet, fast and smooth on the go

The care taken in the construction of the gears and the use of selected materials ensure extremely quiet handling. In the low voltage version, the opening speed can be adjusted precisely and safely.

Robust construction and maximum safety

Built entirely of steel and bronze-aluminum alloy, the ART5000 is designed to last over time.
It integrates electronic force and speed adjustments and can be used with remote wall release, useful when the motor is difficult to access.

Versatile for any type of installation

With the appropriate accessories, it is possible to install the ART series even on large pillars and obtain openings of up to 130°, making it an extremely versatile operator.

Specifications

• Utilization: Residential

• Frequency of use: 0.3

• Motor power supply: 230 Vac – 50/60 Hz

• Power consumption: 200 W

• Degree of protection: IP53

• Shaft rotation speed: 7.8°/s

• Maximum thrust force: 250 Nm

• Force adjustment: Electronics

• Speed adjustment: Electronics (24 Vdc versions only)

• Maximum leaf length: 3 m *

• Operating temperature: –20°C / +60°C

• Encoder / Limit Switch: A/C limit switch

• Lubrication: Grease GBD WH-01

• Operator weight: 11.1 kg

* Actual length may vary depending on attachment points and system conditions.
