High performance 24V brushless ROGER BH23284/22848 sliding gate automation kit for intensive use

The ROGER BH23284/22848 kit is a professional solution for the automation of sliding gates, designed for installations where high performance, intensive use and continuity of service are required.

The system uses a 36V brushless motor, a technology that allows for extremely precise motion control, greater energy efficiency and a longer lifespan than traditional brushed motors. This translates into less maintenance, greater reliability and consistent performance even under load.

The advanced electronic management, combined with the sensorless digital encoder, guarantees optimal control of speed and torque, as well as extremely precise obstacle detection for plant safety.

The kit is ideal for advanced residential, condominium and light industrial contexts, where the gate is used frequently during the day.

Key features:

• High efficiency 36V brushless motor
• Intensive use up to high daily cycles
• Integrated sensorless digital encoder
• Smooth and quiet movement
• Irreversible gearbox for increased safety
• Advanced electronic torque control
• High maintenance-free service life on the brushes

Technical data:

• Line power supply: 230V AC – 50/60 Hz
• Standby consumption: ≤ 0.5 W
• Motor power: 36V
• Power: 160 W
• Frequency of use: Intensive use
• Torque: 50 – 280 Nm
• Operating temperature: -20°C / +55°C
• Degree of protection: IP44
• Gearbox type: irreversible
• Manoeuvring speed: 1 – 1.9 rpm
• Opening time: 12 – 20 s
• Limit switch: mechanical stop when opening and closing
• Encoder: digital sensorless 48 PPR
• Daily manoeuvring cycles (24h): up to 1900

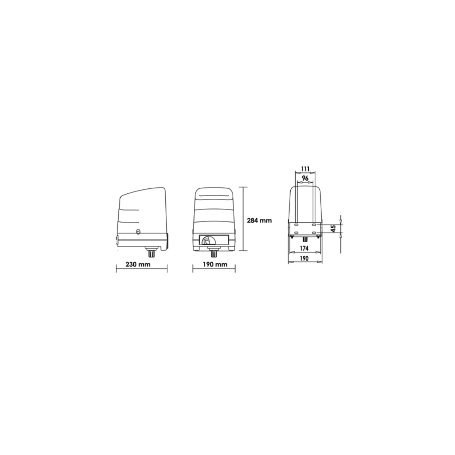

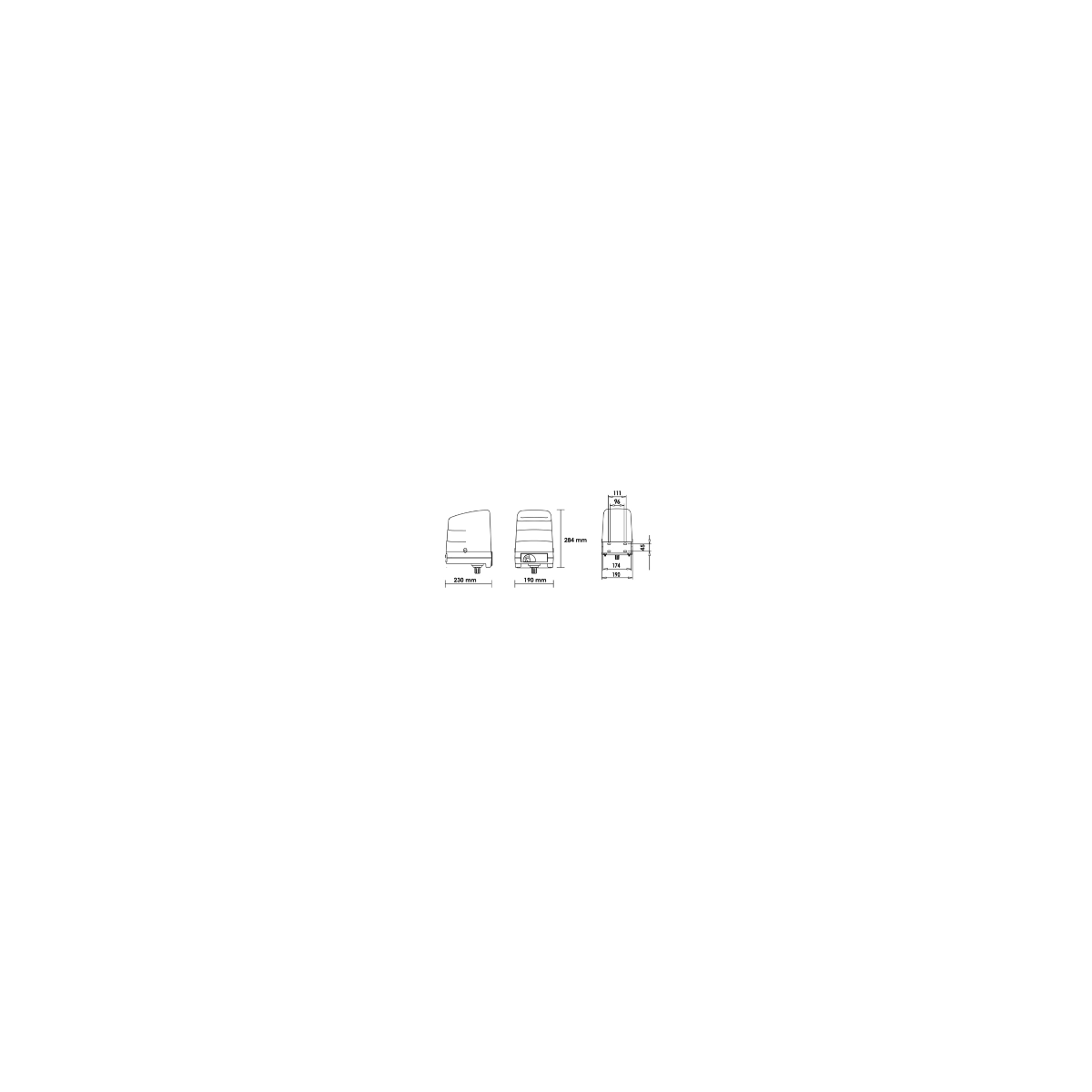

• Dimensions (L x W x H): 230 x 190 x 284 mm
• Packed weight: 31.9 kg

Operational advantages:
The brushless motor completely eliminates the typical wear of the brushes, drastically reducing maintenance and increasing reliability in the long run. The advanced electronic management allows controlled, safe and precise movement even in conditions of intensive use.

Recommended Applications:

• High Frequency Residential Sliding Gates
• Condominiums
• Light industrial contexts
• Professional installations

Technical note:
Before installation, check the weight, length and smoothness of the gate. Installation recommended by qualified personnel only.
