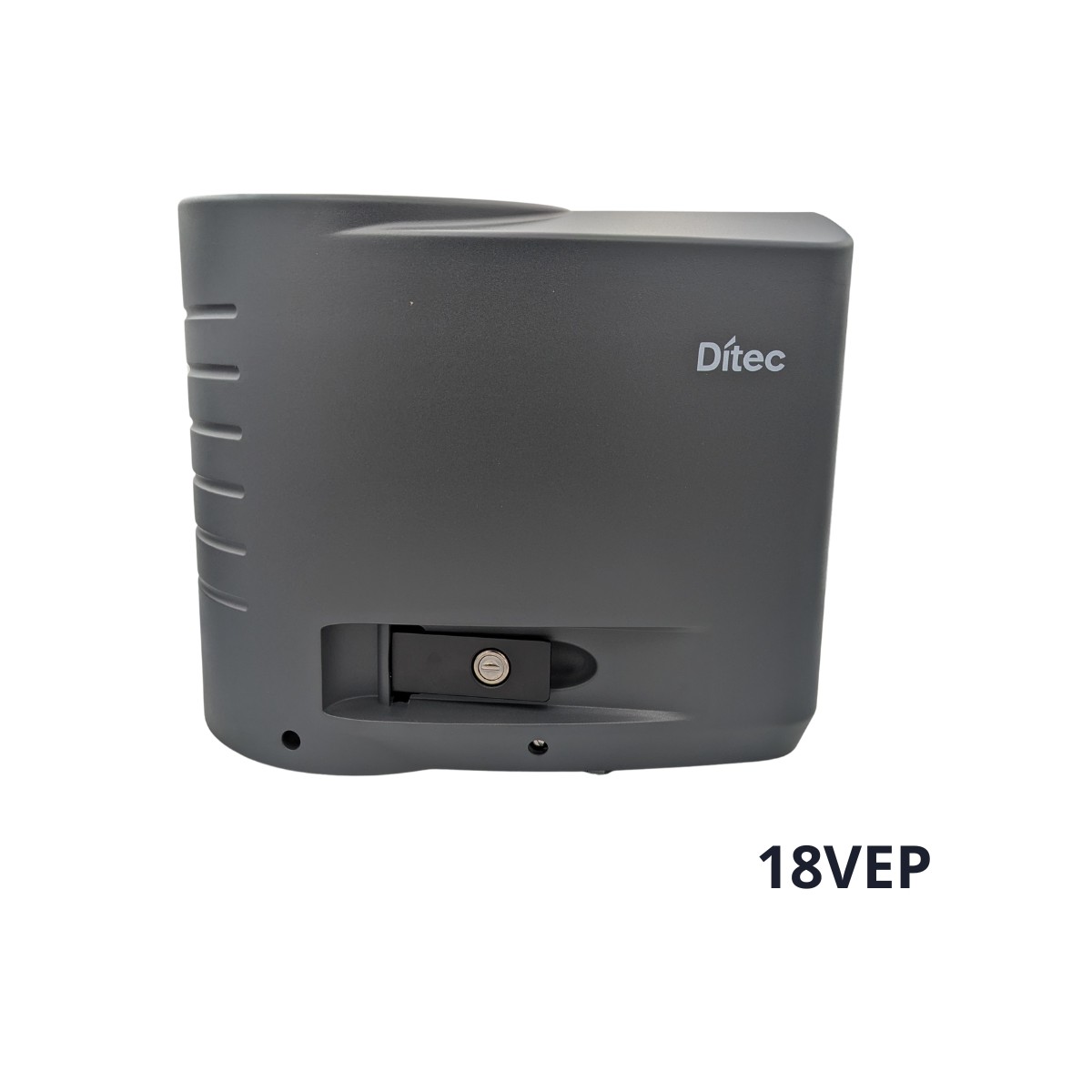

DITEC ENTREMATIC CROSS18VE - Motor for Sliding Gate up to 1800 kg

The DITEC ENTREMATIC CROSS18VE motor is the ideal solution for the automation of sliding gates up to 1800 kg, designed to ensure high performance in intensive applications. Equipped with a built-in LOGIC M control panel, it ensures fast learning and optimal stroke management via magnetic limit switch. Reliability is guaranteed by the IP 24 D degree of protection and the ability to operate in a wide range of temperatures, from -20°C to +55°C.

The opening and closing speed reaches 0.2 m/s, with a maximum thrust of 1200 N, ensuring safety and speed in daily operations. The system provides a manual key release for additional security. The compact dimensions (440x205x375 mm) and the included foundation plate make it easy to install.

Main technical features:

• Capacity: 1800 kg
• Power supply: 230 Vac - 50 Hz
• Power consumption: 3 A
• Class of service: 4 - intense
• Intermittent: S2 = 30 min, S3 = 50%
• Maximum travel: 20 meters

Rely on the DITEC ENTREMATIC CROSS18VE motor for a sliding gate that is always efficient and safe!
