Motor kit ION 24V for sliding gate max 600 KG DITEC ENTREMATIC DITION6L

DITEC ENTREMATIC DITION6L NADITION6L

RESIDENTIAL APPLICATION KIT 600 KG, QUICK LEARNING ION MOTOR 6 DITEC ENTREMATIC 24V

Integrated LCU48 control panel,

MOTOR KIT DITEC 24V DITION6L

FOR SLIDING GATE UP TO 600 KG

433 MHz RADIO RESIDENTIAL APPLICATIONS

with foundation plate

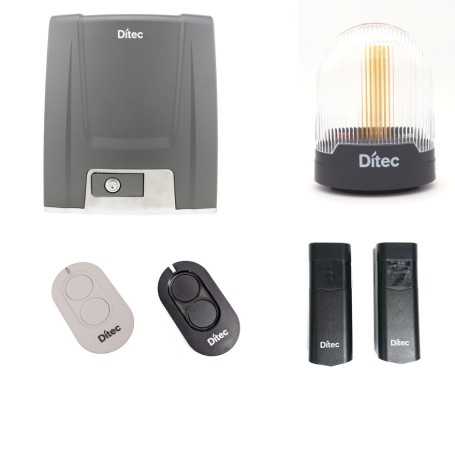

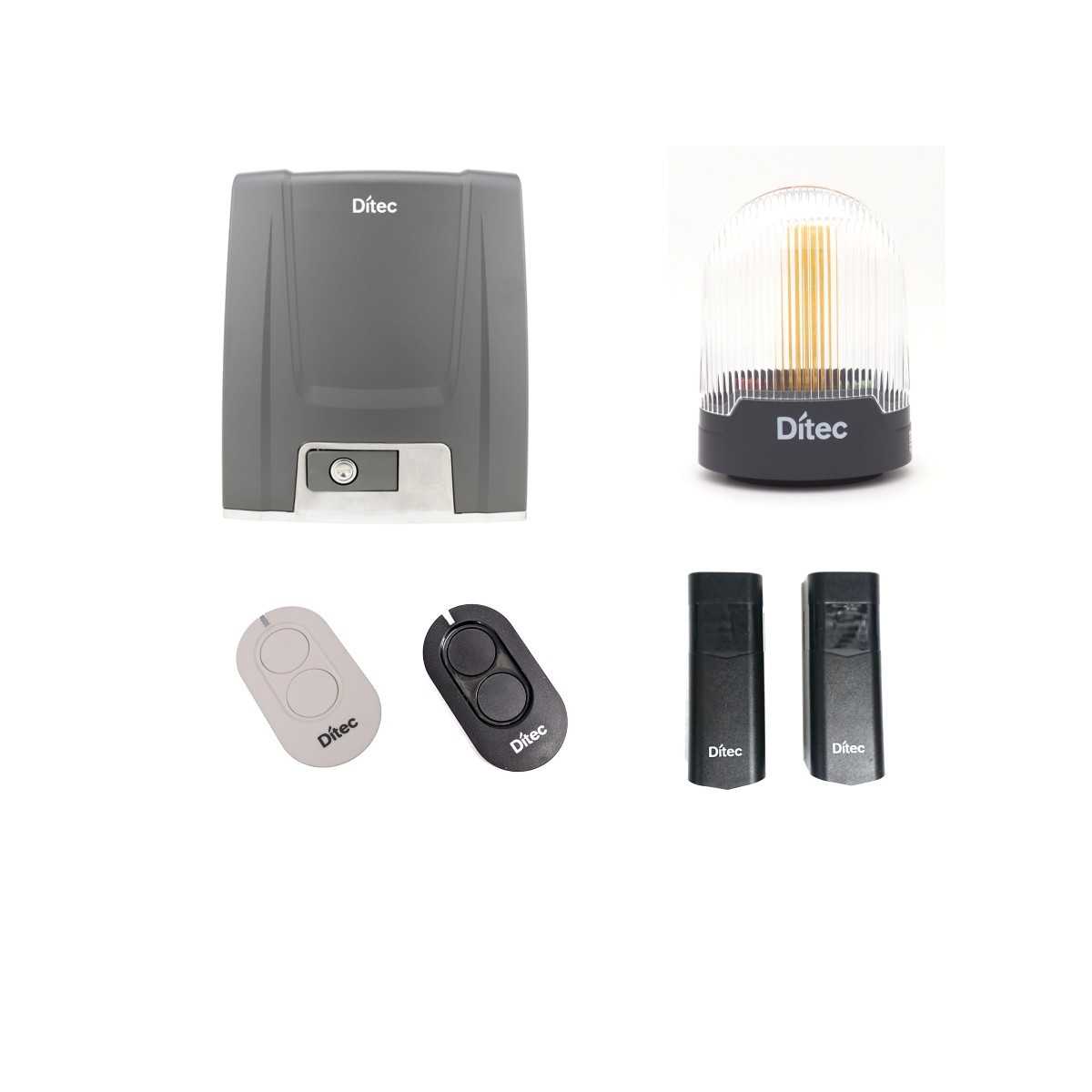

Kit composition :

1 gearmotor ION6

1 built-in LCU48 control panel with radio receiver

2 x 2Ch rolling code remote controls (1xZEN2 + 1xZEN2W)

1 pair of LIN2 photocells

1 flashing FL24 complete with antenna and 5m coaxial cable

1 warning panel E109B

Description ION 6

Load capacity 600 KG

Stroke management VIRTUAL ENCODER

Maximum opening 12 Mt

Frequent service class tested up to 150,000 cycles

Power supply 230 Vac - 50/60 Hz

Motor power supply 24 Vac 50/60 Hz

Power consumption 0.6 A

Thrust 800 N starting point

Opening and closing speed 0,1 - 0,3 m/s

Release for manual KEY opening

Operating temperature -20°C / +55°C (-35°C / +55°C with NIO activated)

Protection degree IP 44

Control panel LCU48

DIMENSIONS 260x195x300 mm

Warranty 24 Months
