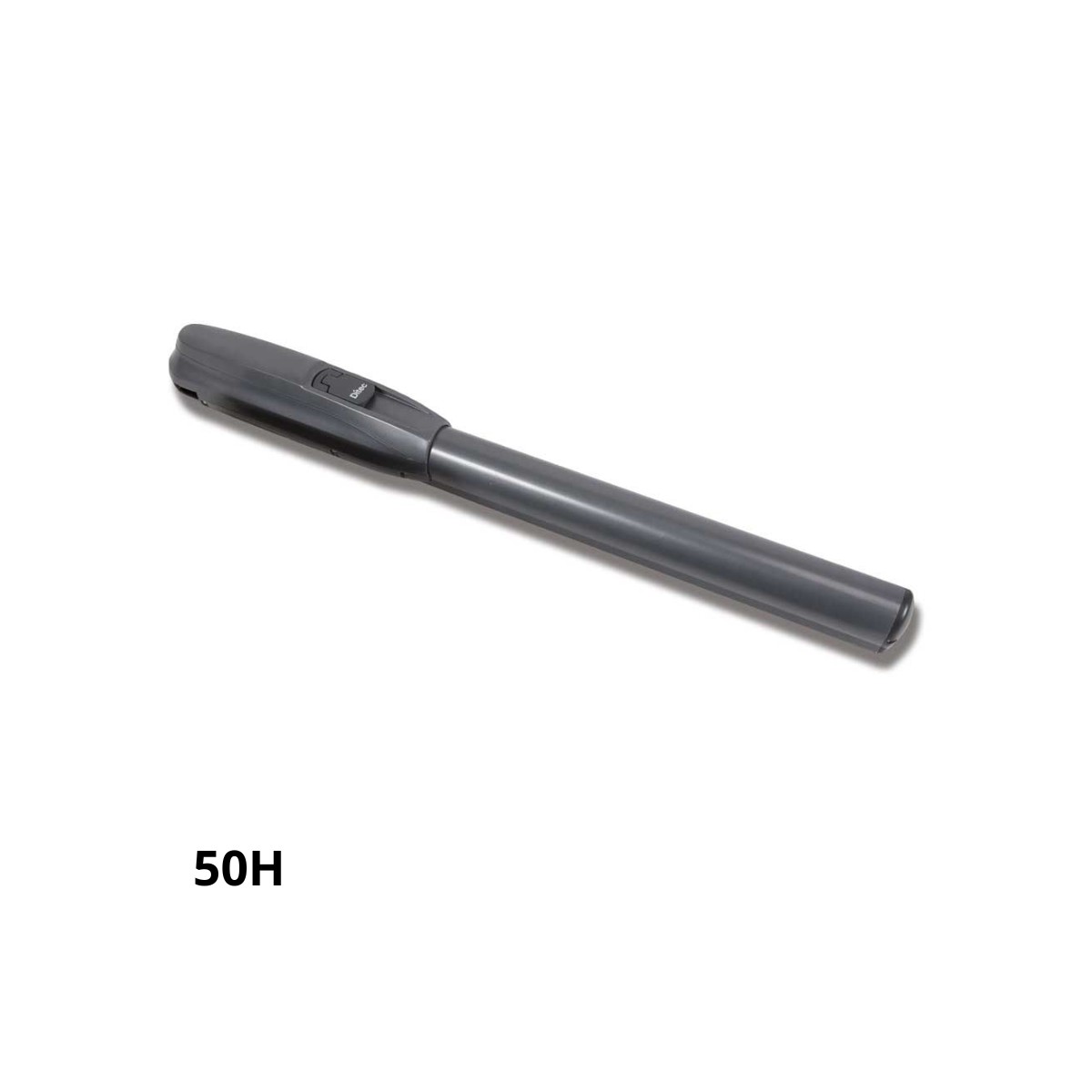

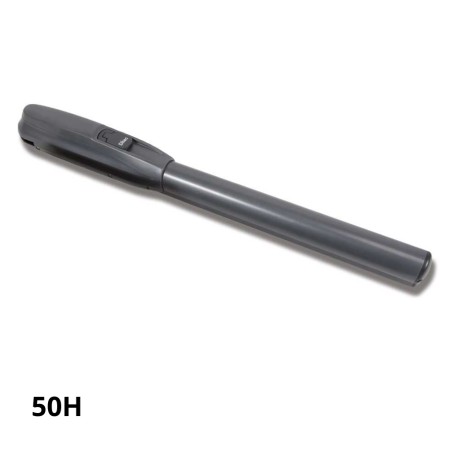

24 Vdc irreversible electromechanical motor for swing gates up to 5 m NAPWR50H

The DITEC-ENTREMATIC PWR50H is a 24 Vdc irreversible electromechanical actuator, part of the PWR range, ideal for swing gate automations up to 5 m in length and 800 kg in capacity

Main features

• Application: for swing gates up to 5 m in length, maximum 800 kg

• Power supply: 24 Vdc

• Type: Irreversible, with integrated mechanical limit stops

• Thrust: 6 000 N

• Adjustable aperture: 14 ÷ 80 s for 90°

• Protection: IP44 and operating temperature of −35°C to +55°C

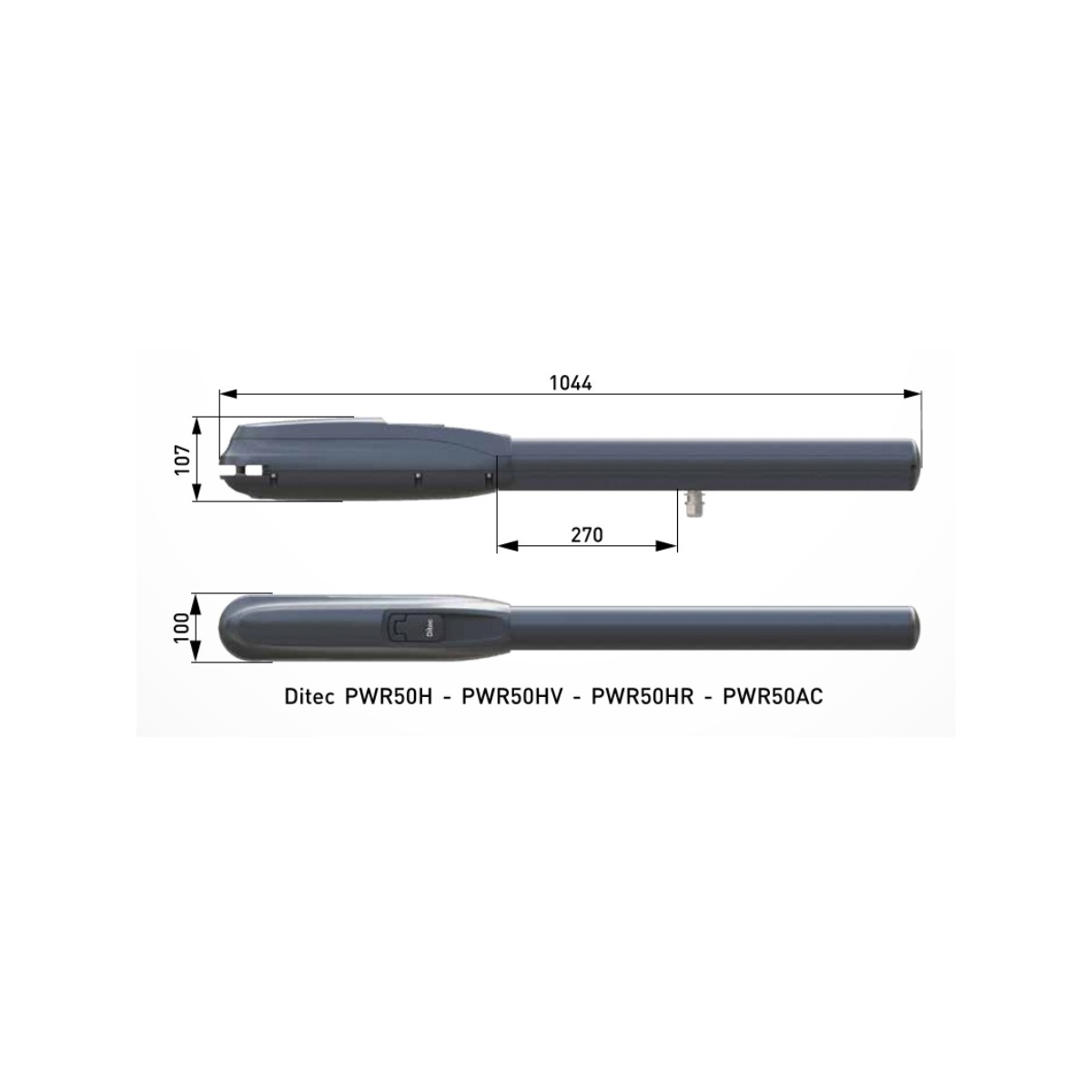

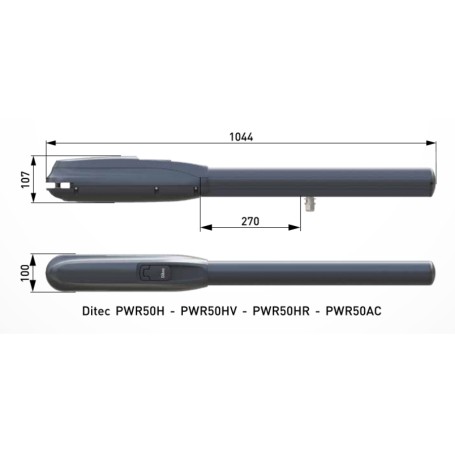

• Dimensions: approx. 100 × 107 × 1 044 mm

• Maximum aperture: 110°

• Installation and maintenance:

  • Removable cover for quick access to adjustment screw

  • Presence of dust brushes that protect the direct screw

  • Mechanical stop stops already mounted for opening and closing

  • Manual key release with minimal effort

  • Reduction of installation time by up to 60 % thanks to template with spirit level and pre-drilled brackets

Advantages

• Solidity and robustness: die-cast aluminium structure resistant to twisting and cutting

• Quick installation: pre-drilled brackets, template with spirit level for precise and quick assembly

• Easy maintenance: access without removing the actuator, dust protection, easy lubrication

• Safety: 24 Vdc virtual encoder for constant force monitoring and obstacle detection, with automatic reversal or stop in the event of an obstacle

• Operational reliability: designed for intensive use, up to 450 000 cycles
