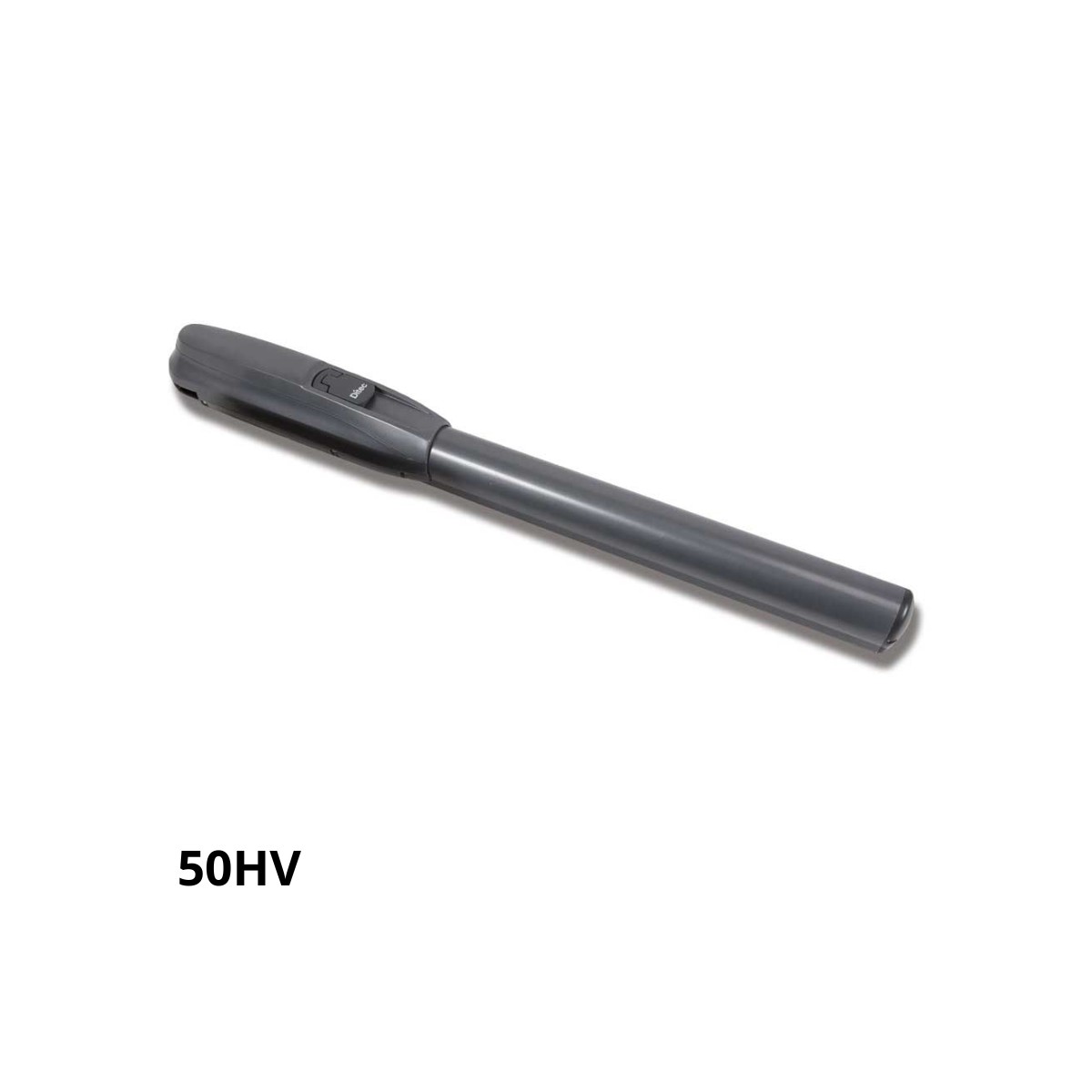

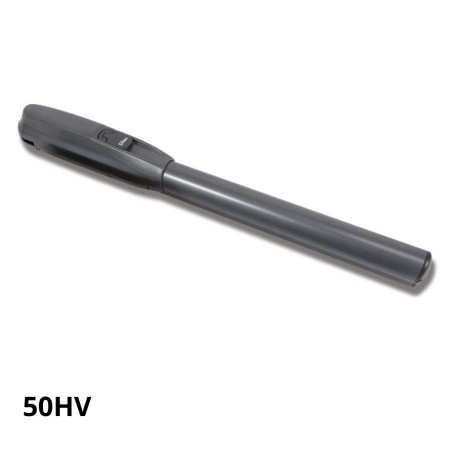

24 V irreversible electromechanical actuator for swing gates up to 5 m with pre-mounted magnetic limit switches NAPWR50HV

The DITEC-ENTREMATIC PWR50HV is a 24 Vdc irreversible electromechanical actuator designed for the automation of swing gates up to 5 meters in length and 800 kg in weight.
This HV version stands out for the presence of pre-assembled magnetic limit switches, which simplify and speed up installation, ensuring maximum precision in adjusting the opening and closing positions.

Built with robust and durable materials, the PWR50HV offers quiet, reliable and safe operation, thanks to electronic control via virtual encoder and obstacle detection system.

Standard equipment

• PWR50HV actuator with pre-mounted magnetic limit switches

• Robust mounting brackets for stable mounting

• Mechanical stop stops (PWRFM) for stroke adjustment

• Dust brushes for screw protection

Main features

• Maximum sash length: 5 m

• Maximum capacity: 800 kg (1.75 m) – 280 kg (5 m)

• Thrust: 6,000 N

• Opening speed: 14÷80 s for 90°

• Maximum stroke: 500 mm

• Maximum actuator opening: 120°

• Degree of protection: IP44

• Operating temperature: –20°C / +55°C (up to –35°C with NIO function on)

• Weight: 10.5 kg

• Motor power: 24 Vdc

• Rated power: 65 W – maximum 288 W

• Maximum current: 12 A

• Service class: Intensive use, up to 600,000 cycles

• Manual unlocking: key, quick and safe

• Compatible control panel: LCU40H

Strengths

• Pre-assembled magnetic limit switches: save time during installation and precise adjustment.

• Robust construction: die-cast aluminum body with dust and water protection.

• Intensive use: ideal for condominium, commercial or industrial contexts with a high number of cycles.

• Active safety: virtual encoder for continuous position monitoring and obstacle detection.

• Simplified maintenance: Immediate access to the set points without disassembling the actuator.
