Gearmotor Actuator Motor for swing gate 230V FAAC 415 104415

FAAC 104415 415

EAN 8055195000788

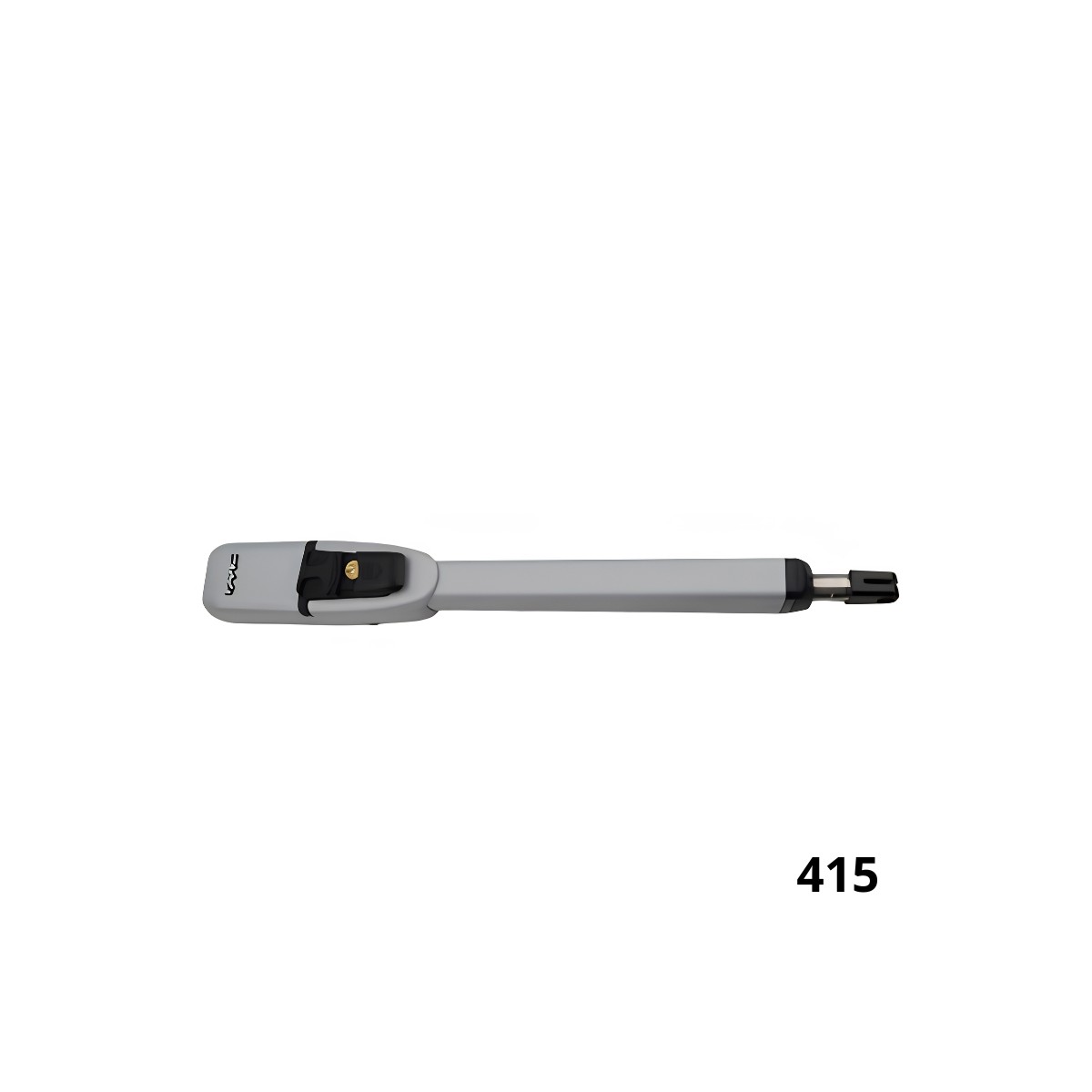

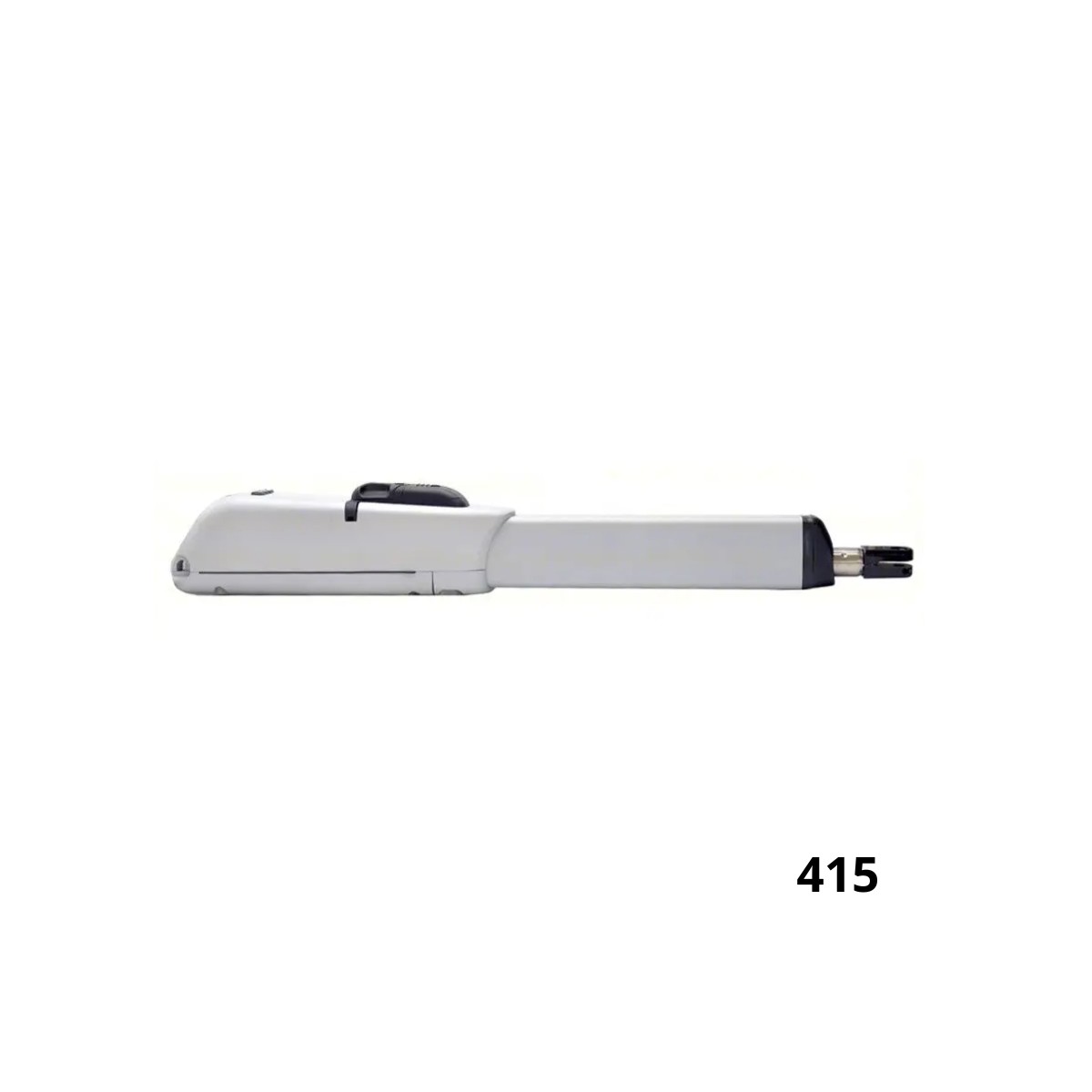

Original gearmotor for swing automations FAAC 415

Actuators 415 230V stroke 300mm for hinged doors up to 3 meters maximum length per leaf.

First choice operator for quality and reliability for hinged doors, produced entirely by FAAC, a historic automation brand.

Mechanics with internal kinematics composed of bronze crown, steel worm screw and an extra reduction compared to other pistons,

front stainless steel stem that allows a better job being anchored very far from the hinge of the door.

Aluminum body with an actuator weight of 8Kg.

Sturdy brackets with screw-in feedback.

Floating rear and front fork in aluminium.

Release system with ratchet and European protection key.

Compatible with hinged door control panels FAAC 452MPS, 462DF, 455D, E045, E145, E045S, E145S

SPECIFICATIONS:

Mains supply voltage: 220-240V~50/60Hz

Electric motor: Asynchronous single-phase

Max power: 300 W

Max thrust force: 3000 N (*)

Rod speed: 16 mm/s (*)

Rod travel: 300 mm

Max door opening angle: 110°

Operating ambient temperature: -20°C ÷ +55°C

Thermoprotection: 140°C

Degree of protection: IP54

Weight: 7,8 Kg

Usage Frequency: S3 - 30%

Max leaf width: 2.5 m (3 m with electric lock)

Fixing brackets: Rear attachment to weld/screw - front connection to weld/screw

Dimensions (WxDxH): 836 x 101 x 147 mm

Electronic equipment: Not included

Warranty 24 Months
