Gearmotor Actuator motor for swing gate 230V FAAC 415 L 104417

FAAC 104417 415 L

EAN 8055195000801

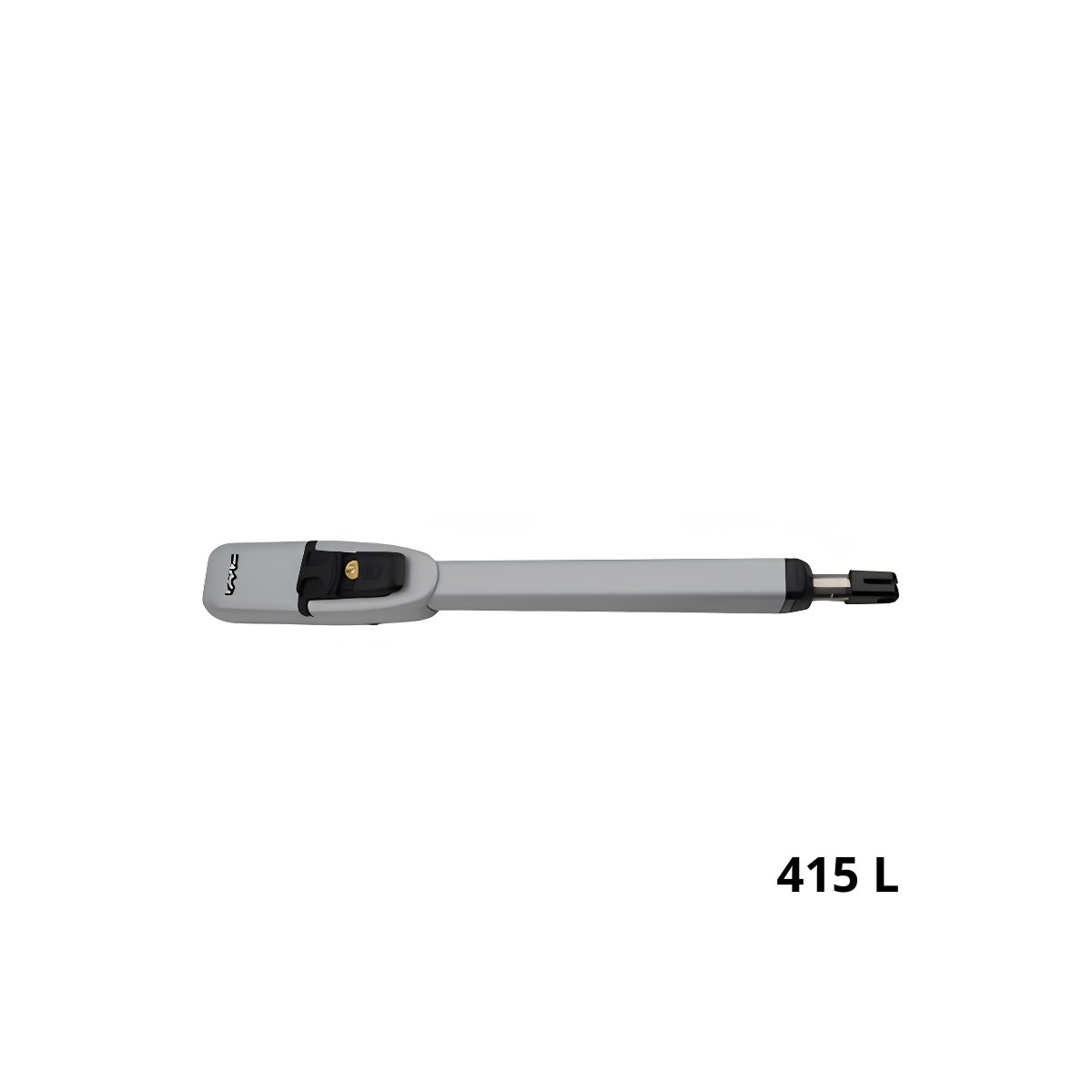

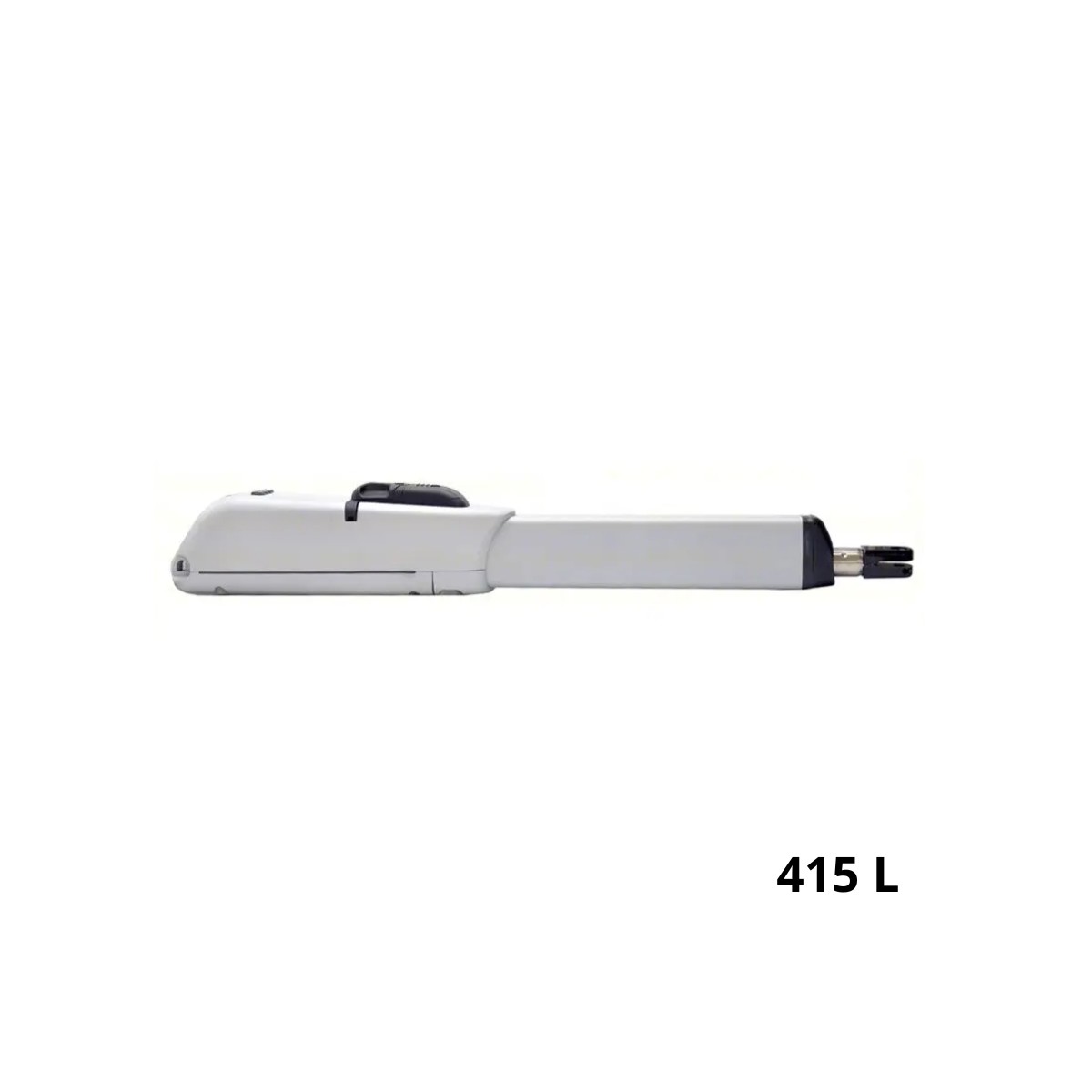

Original gearmotor for swing automations FAAC 415 L

Actuators 415 230V stroke 400mm for hinged doors up to 4 meters maximum length per leaf.

First choice operator for quality and reliability for hinged doors, produced entirely by FAAC, a historic automation brand.

Mechanics with internal kinematics composed of bronze crown, steel worm screw and an extra reduction compared to other pistons,

front stainless steel stem that allows a better job being anchored very far from the hinge of the door.

Aluminum body with an actuator weight of 8Kg.

Sturdy brackets with screw-in feedback.

Floating rear and front fork in aluminium.

Release system with ratchet and European protection key.

Compatible with hinged door control panels FAAC 452MPS, 462DF, 455D, E045, E145, E045S, E145S

SPECIFICATIONS:

Mains supply voltage: 220-240V~50/60Hz

Electric motor: Asynchronous single-phase

Max power: 300 W

Max thrust force: 3000 N (*)

Rod speed: 16 mm/s (*)

Rod stroke: 400 mm

Max door opening angle: 110°

Operating ambient temperature: -20°C ÷ +55°C

Thermoprotection: 140°C

Degree of protection: IP54

Weight: 7,8 Kg

Usage Frequency: S3 - 30%

Max leaf width: 2.5 m (3 m with electric lock)

Fixing brackets: Rear attachment to weld/screw - front connection to weld/screw

Dimensions (WxDxH): 836 x 101 x 147 mm

Electronic equipment: Not included

Warranty 24 Months
