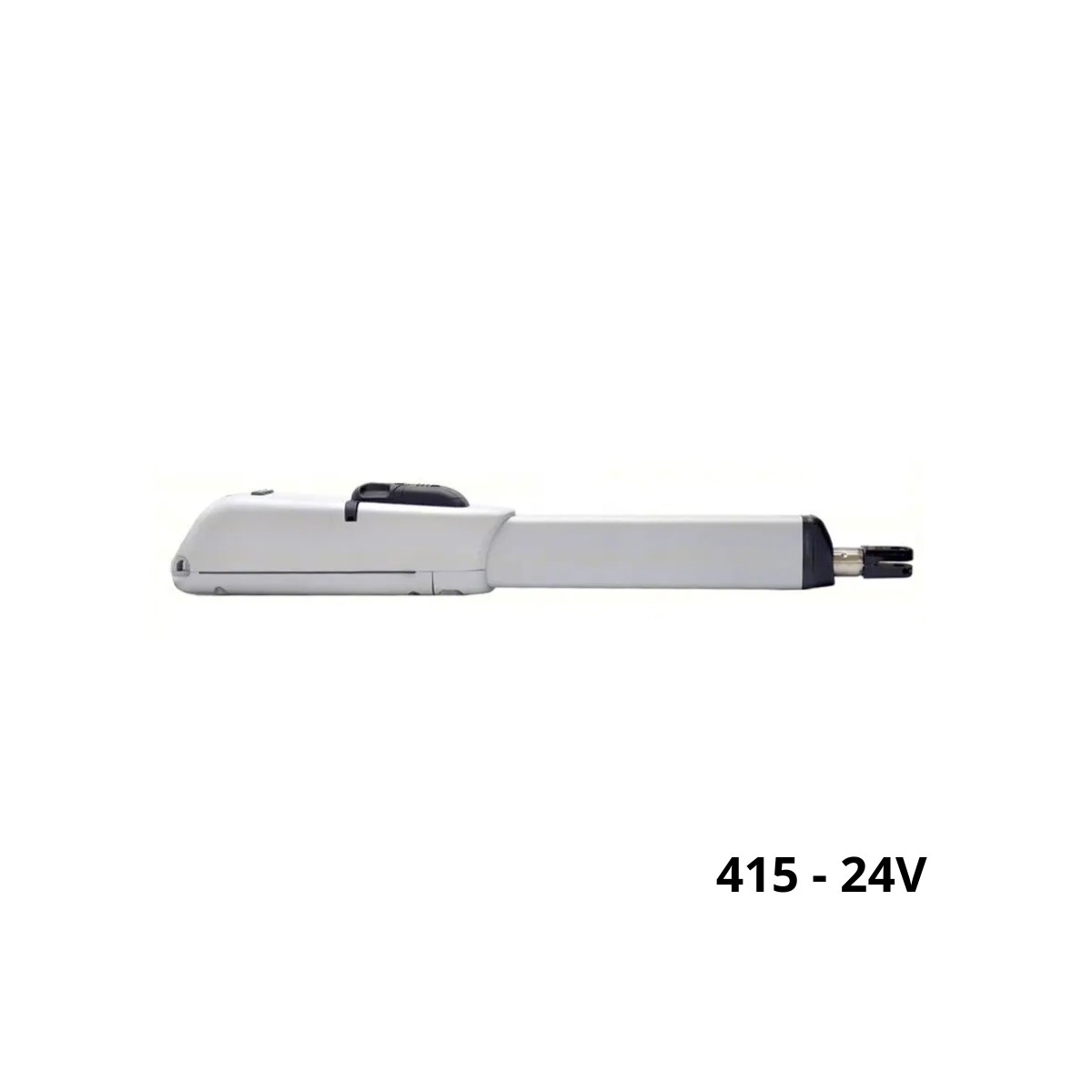

Gearmotor Actuator Motor for swing gate 24V FAAC 415 1044151

FAAC 1044151 415 - 24V

EAN 8055195013535

Original gearmotor for swing automations FAAC 415 24V.

24V 300mm stroke actuator for hinged doors up to 3 meters maximum length per leaf.

First choice operator for quality and reliability for hinged doors, produced entirely by FAAC, a historic automation brand.

Mechanics with internal kinematics composed of bronze crown, steel worm screw and an extra reduction compared to other pistons,

front stainless steel stem that allows a better job being anchored very far from the hinge of the door.

Aluminum body with an actuator weight of 8Kg.

Sturdy brackets with screw-in feedback.

Floating rear and front fork in aluminium.

Release system with ratchet and European protection key.

SPECIFICATIONS:

Mains supply voltage: 220-240V~50/60Hz

Electric motor: With 24V brushes

Max power: 70 W

Max thrust force: 2800 N

Rod speed: 16 mm/s

Rod travel: 300 mm

Max door opening angle: 110°

Operating ambient temperature: -20°C ÷ +55°C

Degree of protection: IP54

Weight: 7,8 Kg

Frequency of use: Continuous use

Max leaf width: 2,5 m (3 with electric lock)

Fixing brackets: Rear attachment to weld/screw - front connection to weld/screw

Dimensions (WxDxH): 836 x 101 x 147 mm

Electronic equipment: Not included

Warranty 24 Months
