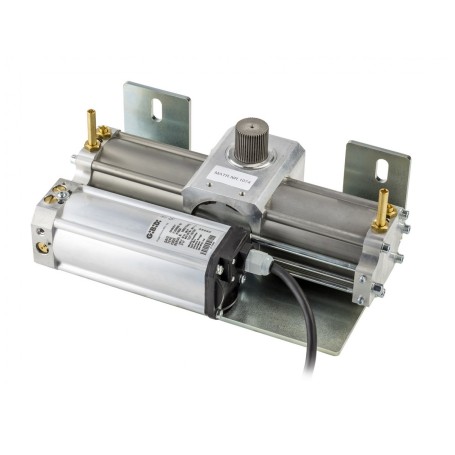

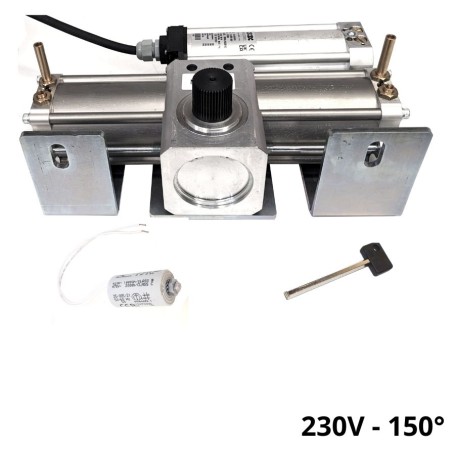

Underground Hydraulic Operator for Hinged Gates GIBIDI FLOOR 850 81500

The FLOOR 850 operator is a model of hydraulic underground operator with a 230V motor suitable for intensive use and for leaves with a maximum width of 3 m. This model has been produced by GIBIBI for a few years and is not to be confused with the FLOOR 880 which is the version that opens 180°.

All the old hydraulic motors of the FLOOR family have always had 180° openings, so the natural replacement is the FLOOR 880. This model, on the other hand, the FLOOR 850 not only has a smaller opening but also has a different speed. Therefore, if you had to replace the old FLOOR in the case of a double leaf, you would have different speeds.

What are the features of the FLOOR 850 by GIBIDI?

• Use: INTENSIVE
• Frequency of use: 0.4
• Motor power supply: 230 Vac - 50/60 Hz
• Power consumption: 190W
• Degree of protection: IP67
• Shaft rotation speed: 6°/s
• Max. thrust force: 320 Nm
• Force Adjustment: HYDRAULICS
• Speed Adjustment: YES
• Max. leaf length: 3.0 m
• Max. door opening: 150°
• Operating Temp.: -20°C +60°C
• Encoder/Limit Switch: LIMIT SWITCH - Optional
• Lubrication: GBD OIL PH-03
• Operator weight: 17 kg
