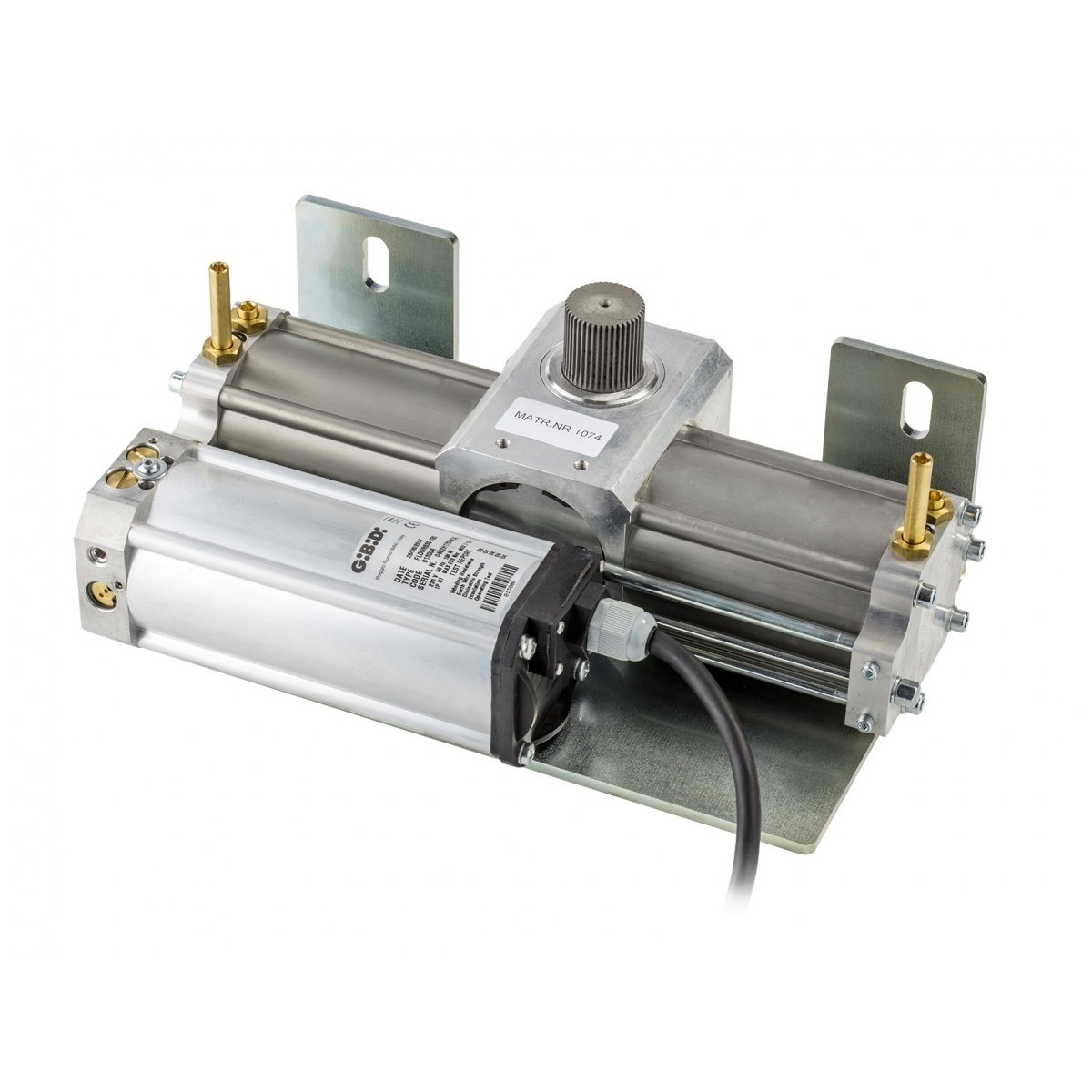

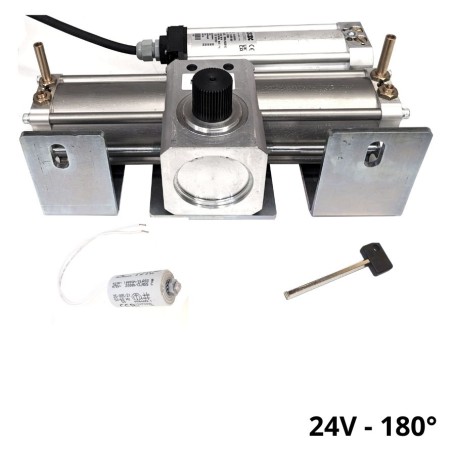

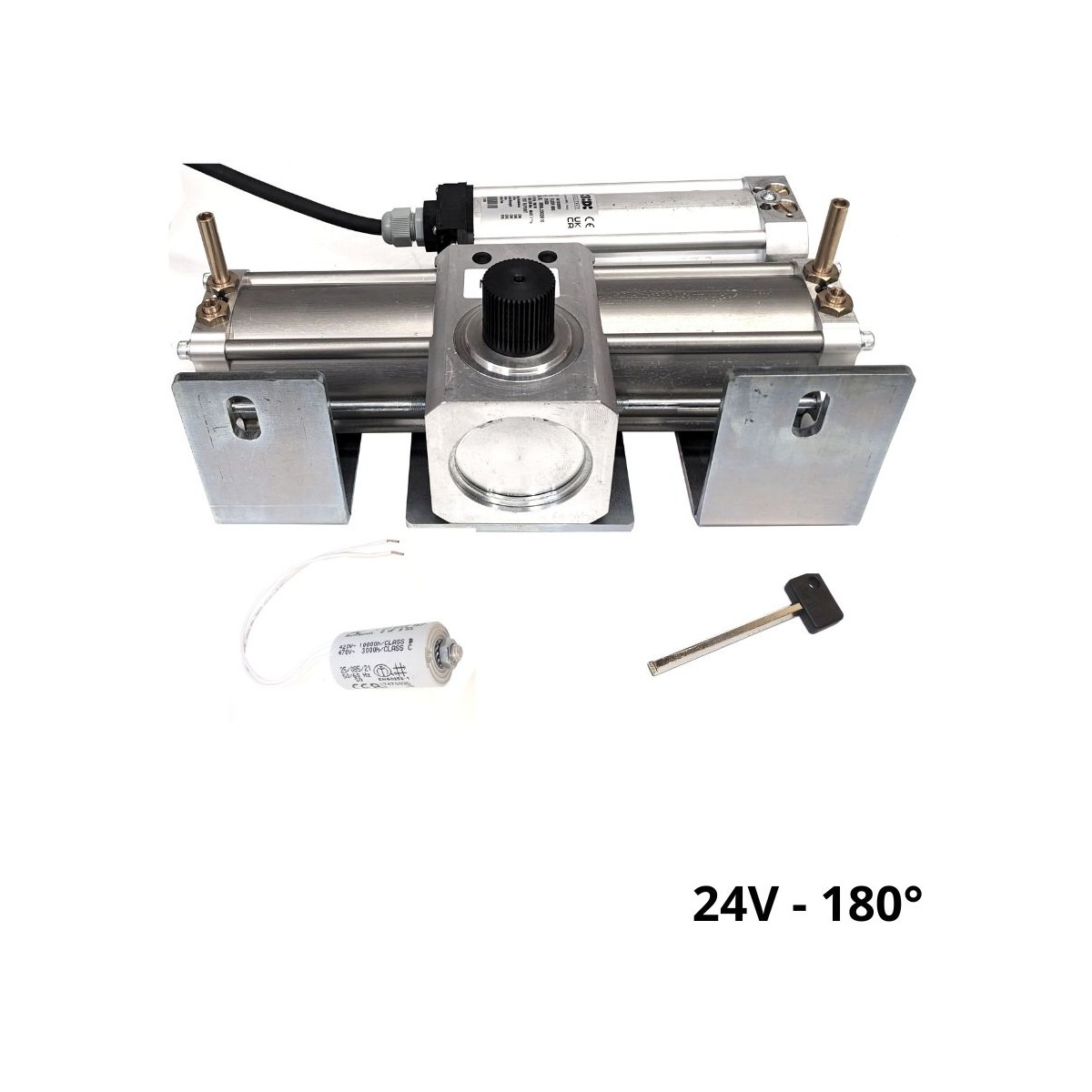

Underground Hydraulic Operator for Hinged Gates GIBIDI FLOOR 884 81824

GIBIDI

Item Number: 81824
MOD.: FLOOR 884

GENERAL DESCRIPTION FLOOR SERIES:

Hydraulic operators at 230Vac and 24Vdc underground dedicated to swing gates of medium size and weight. Suitable for both residential and intensive use.

EASY TO INSTALL
Thanks to the special self-supporting foundation case. Ambi-right engine. Unique fixing system that allows you to recover even fixing errors of the doors.

SILENT AND FAST
Only 12 seconds to open the gate! Extremely quiet thanks to the use of selected materials and careful finishes of the gears. In the 24Vdc version possibility to adjust the opening speed.

TECHNOLOGICAL AND SAFE
FLOOR contains the best closed-circuit hydraulic technology without air.

Complete with speed and force regulators and also valves for selecting reversible, irreversible or mixed mode.

In the 24Vdc version it is possible to adjust the anti-crushing sensitivity for greater safety of the system as required by EN12453. European profile unlock key.

A COMPLETE AND RELIABLE RANGE
FLOOR is even more robust in the new version with opening up to 150° and 180°.

It meets all the aesthetic requirements for your gate and is reliable thanks to the use of high quality materials and extensive quality tests.

SPECIFICATIONS:
Use: INTENSIVE
Usage Frequency: 0.8
Motor power supply: 24 Vdc
Power consumption: 120W
Degree of protection: IP67
Shaft rotation speed: 7°/s
thrust force: 300 Nm
Force regulation: ELECTRONICS
Speed regulation: YES
leaf length: 2.5 m *
door opening: 180°
Operating time: -20°C +60°C
Encoder/Limit Switch: LIMIT SWITCH - Optional
Lubrication: GBD OIL PH-03
Operating weight: 16 kg
