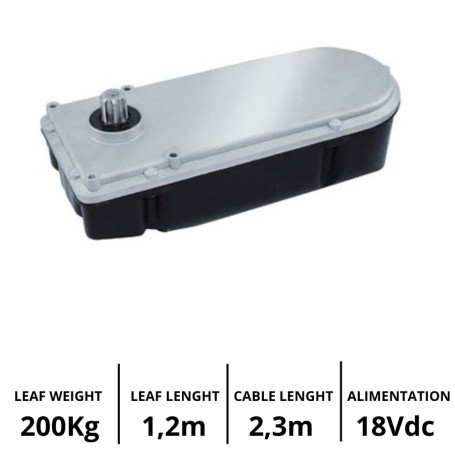

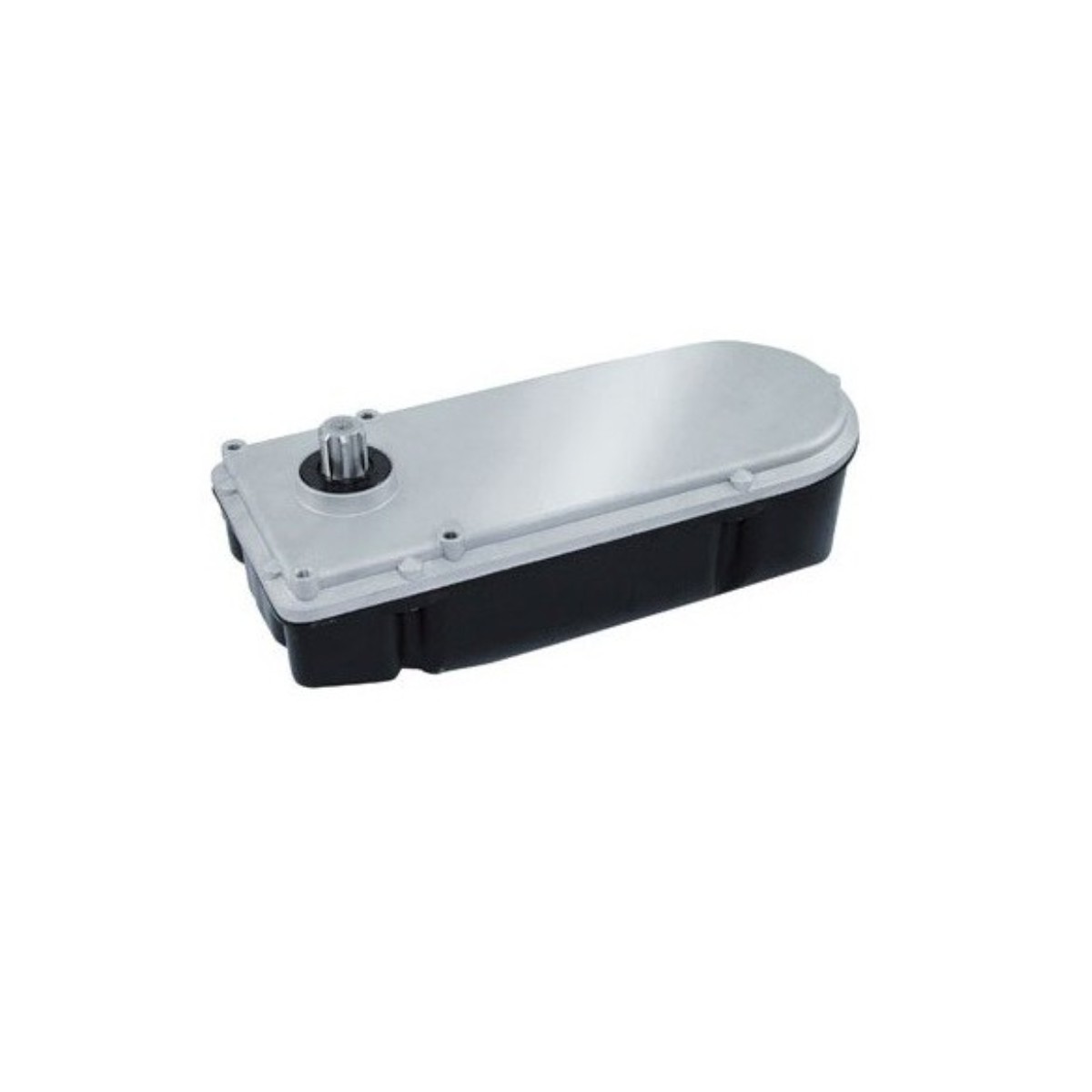

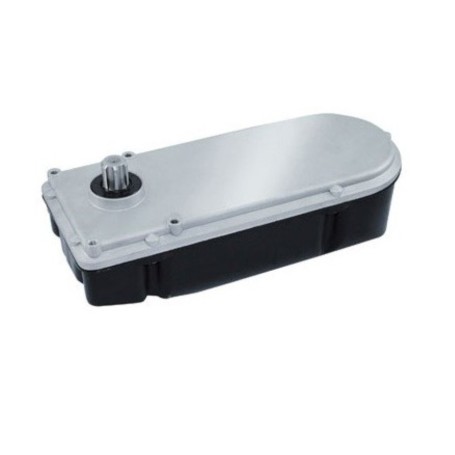

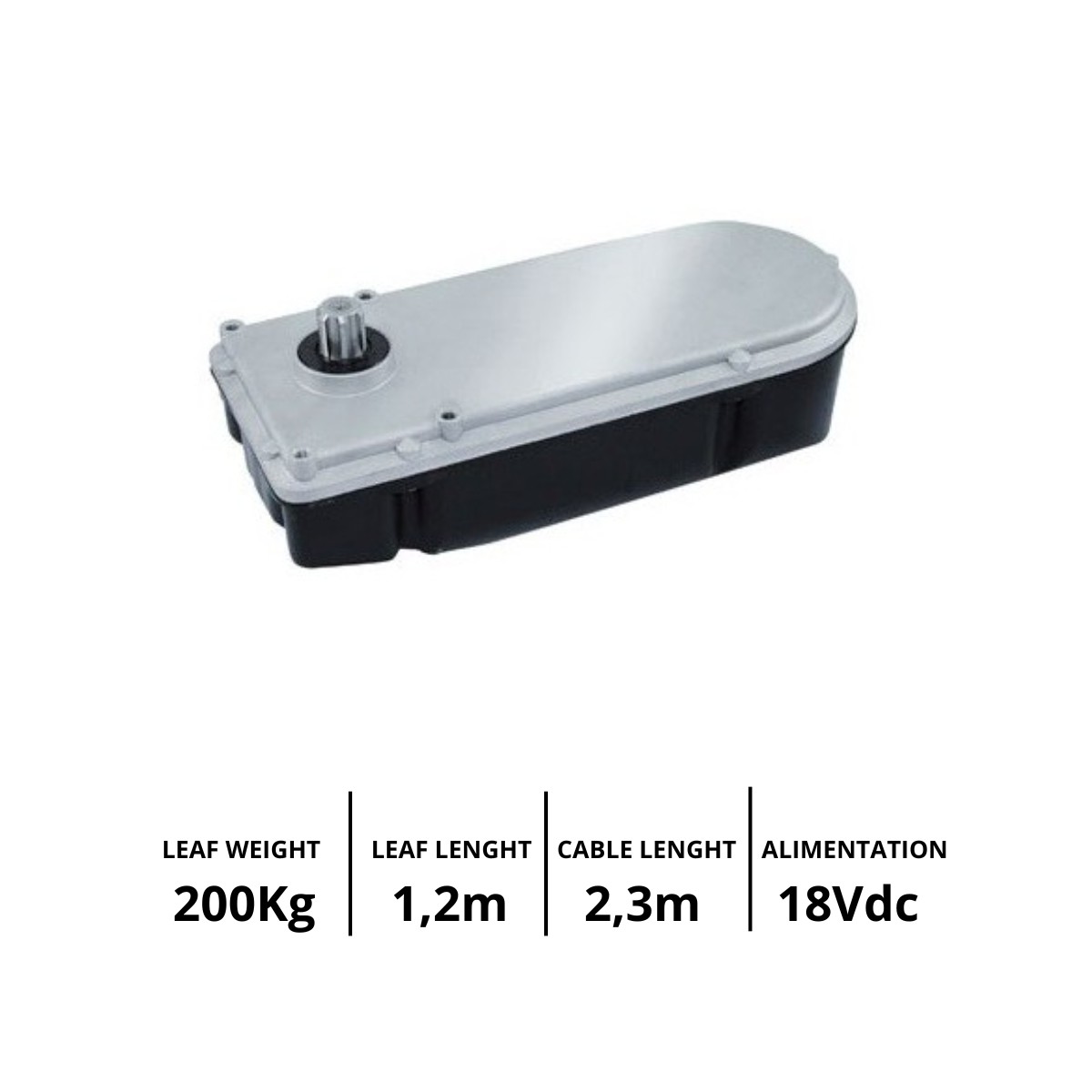

R18BENCVEL – Fast 18V Underground Gear Motor for Hinged Doors up to 1.2 m TAU

The R18BENCVEL is an electromechanical underground low voltage gearmotor designed for residential automations of swing leaves up to 1.2 meters. Thanks to 18 V DC technology, it ensures high speed, continuous operation and advanced safety with obstacle detection.

The fast version allows a complete opening in about 9 seconds, perfect for pedestrian entrances or gates that require speed and intensive use cycles. The optical encoder ensures precise, smooth and self-learning movement of the stroke.

Main features

• Motor power: 18 V DC

• Intensive and continuous use

• Max. sash length: 1.2 m

• Max sash weight: 200 kg

• Installation: underground

• Technology: Optical encoder

• Fast version for opening in approx. 9 s

• Connection cable: 2.3 m

• Reliable and compact electromechanical geared motor

Benefits

• Extremely compact and invisible motor

• Completely unaltered gate aesthetics

• Door opening without rotation limits (360°) and without additional accessories

• Crush safety with obstacle detection

• Complies with EN 12445 – EN 12453

• Possibility of operation in the event of a power failure with optional batteries

• Above-average movement speed for underground systems

• Auto travel storage via optical encoder

Important Notes

• Foundation box and release system NOT included

• Ideal for automating pedestrian leaves or small gates with the need for quick opening
