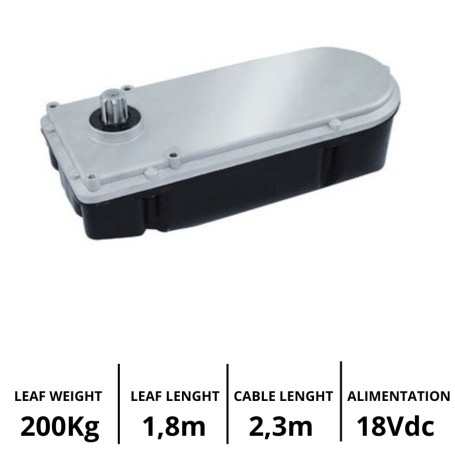

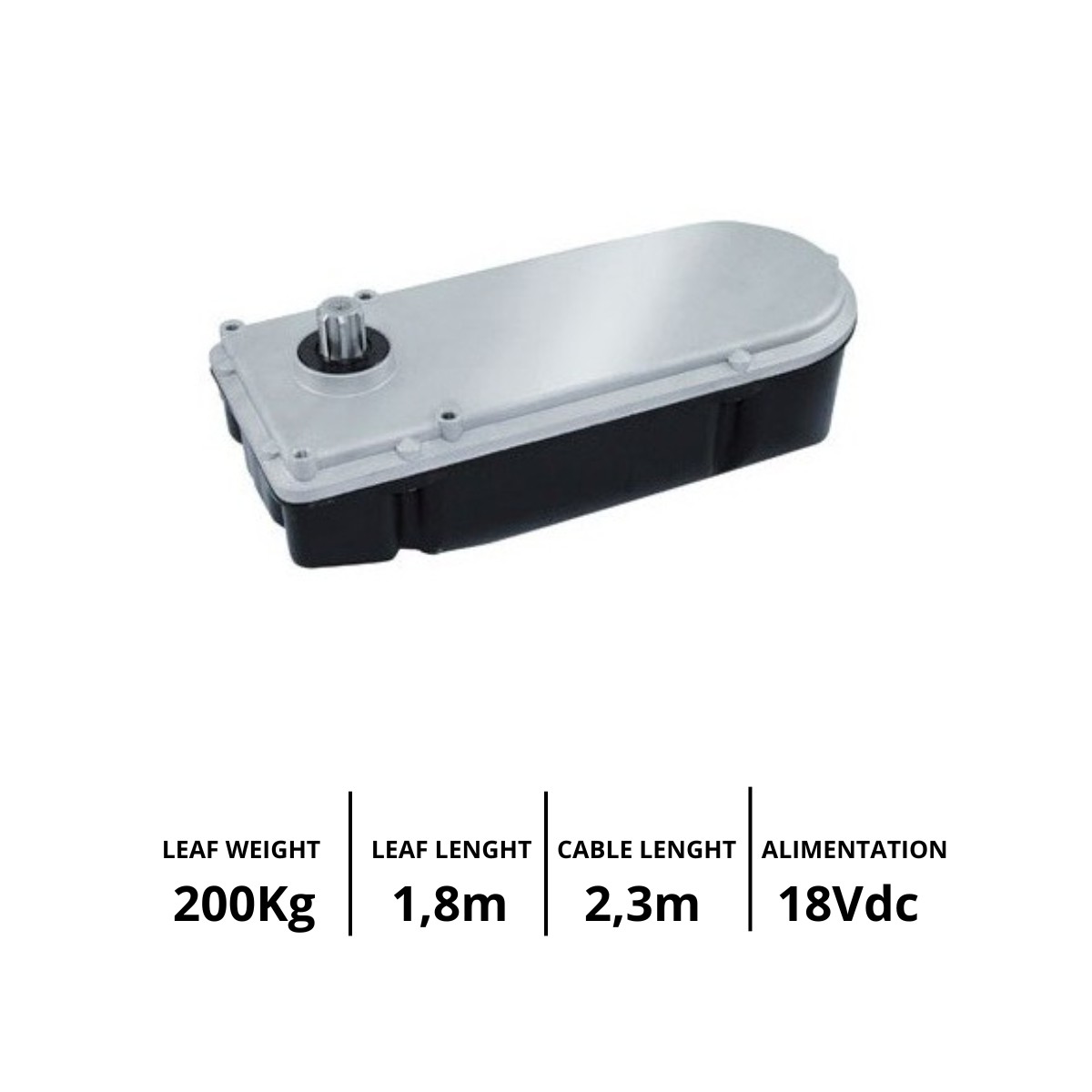

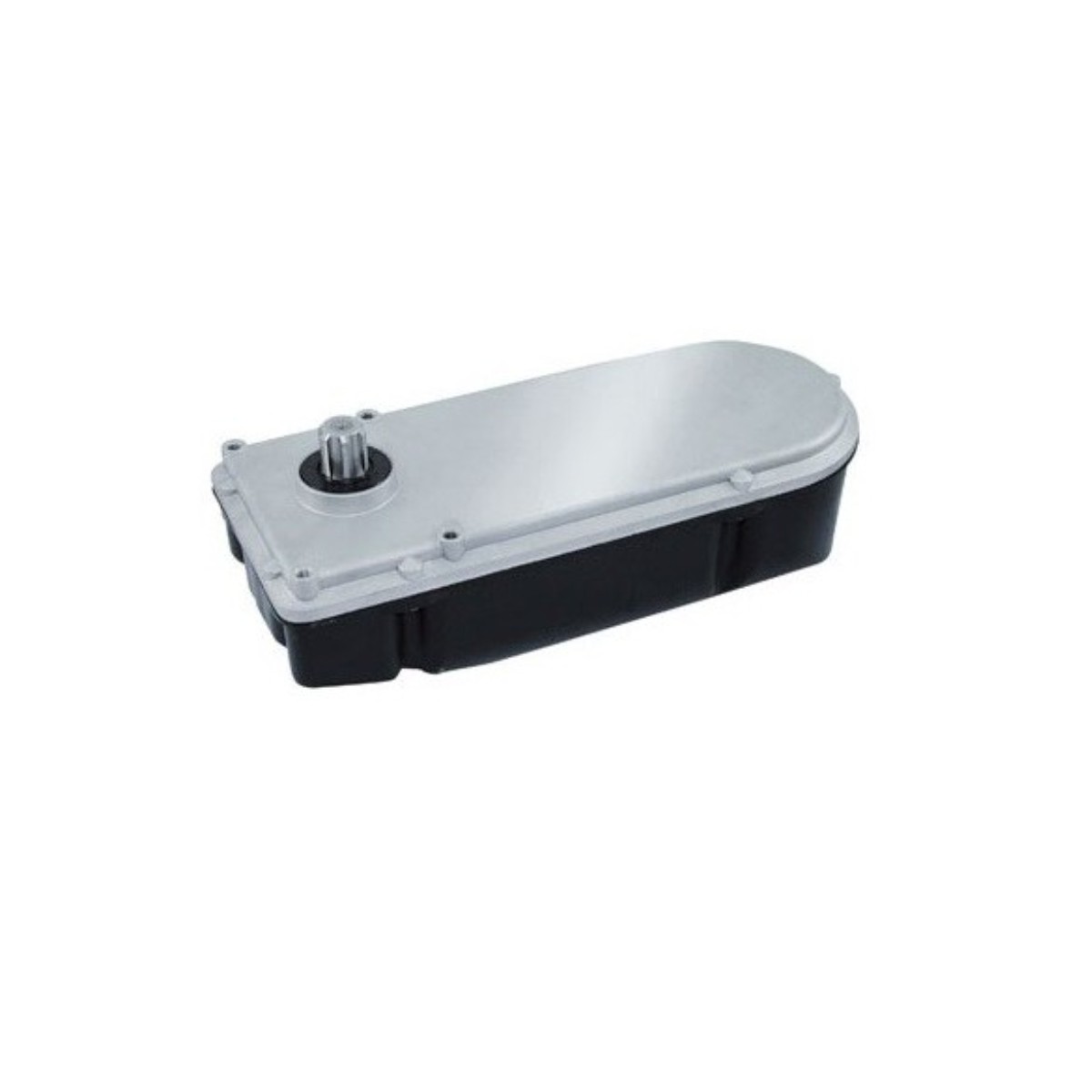

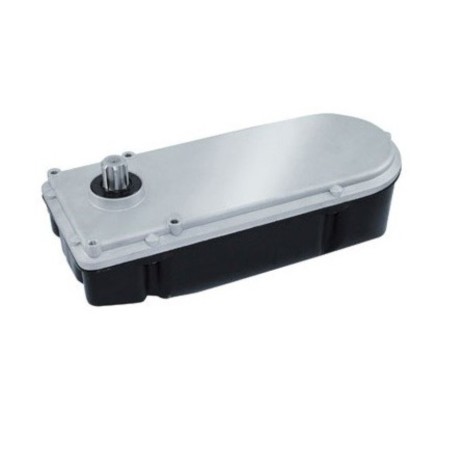

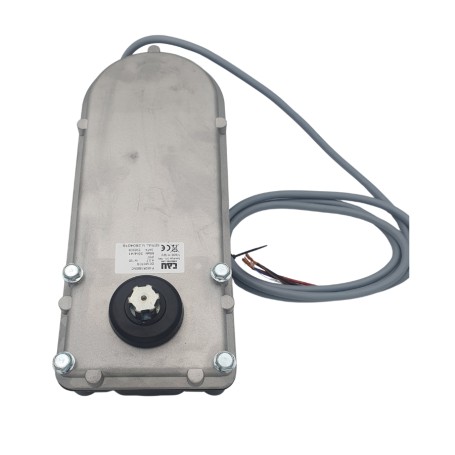

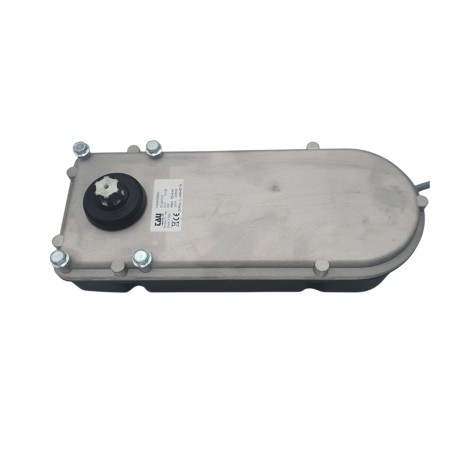

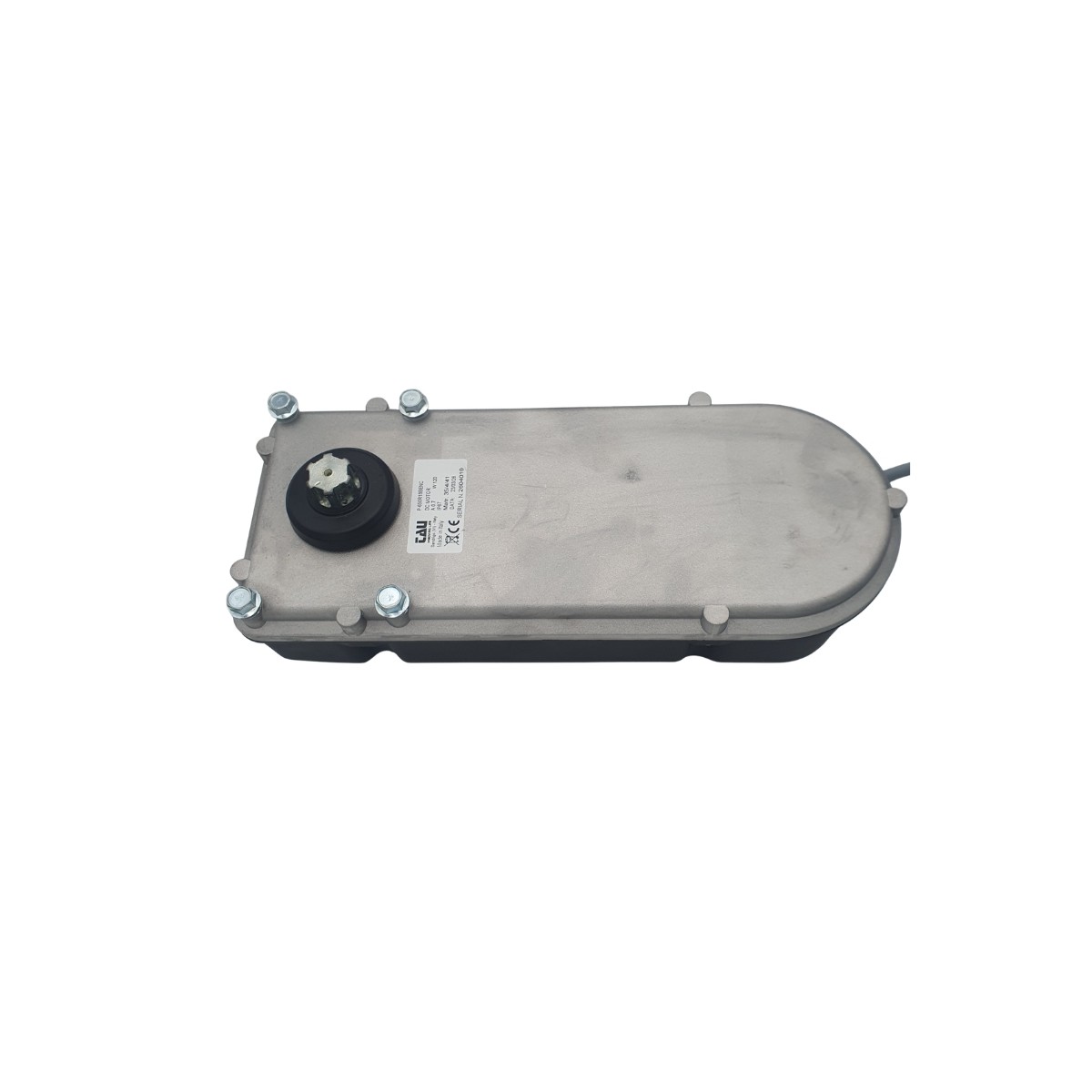

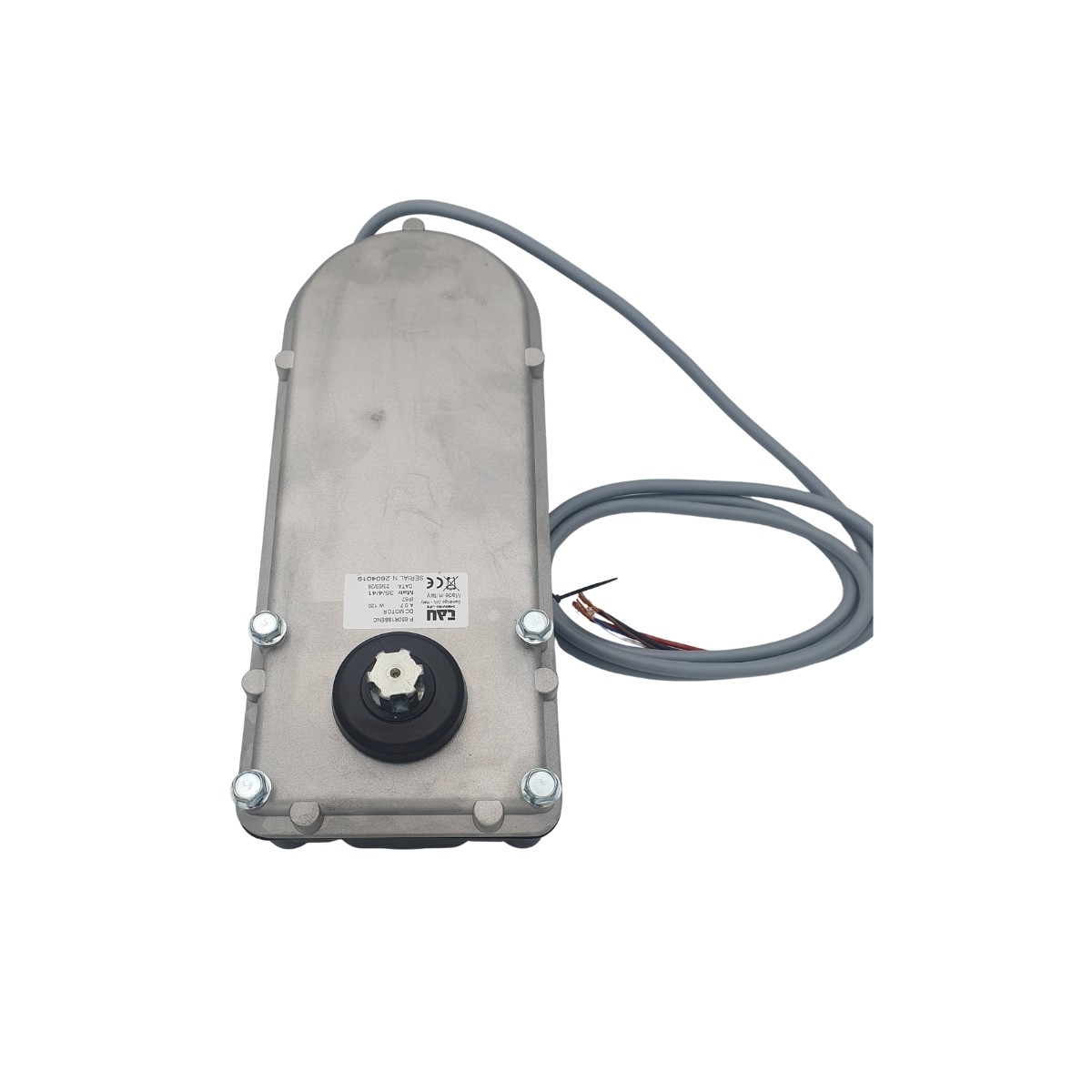

R18BENC – 18V Underground Gearmotor with Encoder for Swing Doors up to 1.8 m TAU

The P-650R18BENC is an underground electromechanical gearmotor designed to automate residential swing leaves up to 1.8 meters. Thanks to its 18V DC low-voltage technology, it offers maximum safety, high performance and continuous operation ideal for intensive cycling.

The integrated optical encoder allows a smooth, precise and self-learning movement of the stroke, while the underground installation completely preserves the aesthetics of the gate. The door can be opened up to 360° without requiring additional accessories.

Technical features

• Motor power: 18 V DC – intensive use

• Maximum leaf length: 1.8 m

• Maximum leaf weight: 200 kg

• Installation: underground

• Technology: Optical encoder

• Aperture: Approx. 13 seconds

• Connection cable: 2.3 m

• Robust and quiet electromechanical motor

Benefits

• Compact and invisible motor

• Completely intact entrance aesthetics

• Continuous opening (360°)

• Maximum safety with obstacle detection

• Complies with EN 12445 – EN 12453

• Optional battery operation possible

• Intensive use, ideal for frequent daily access

• Auto Stroke Storage with Optical Encoder

Important Notes

• Foundation box and release system not included

• Compatible with 18V DC low voltage control panels

• Perfect for residential entrances with the need for high frequency of maneuvering
