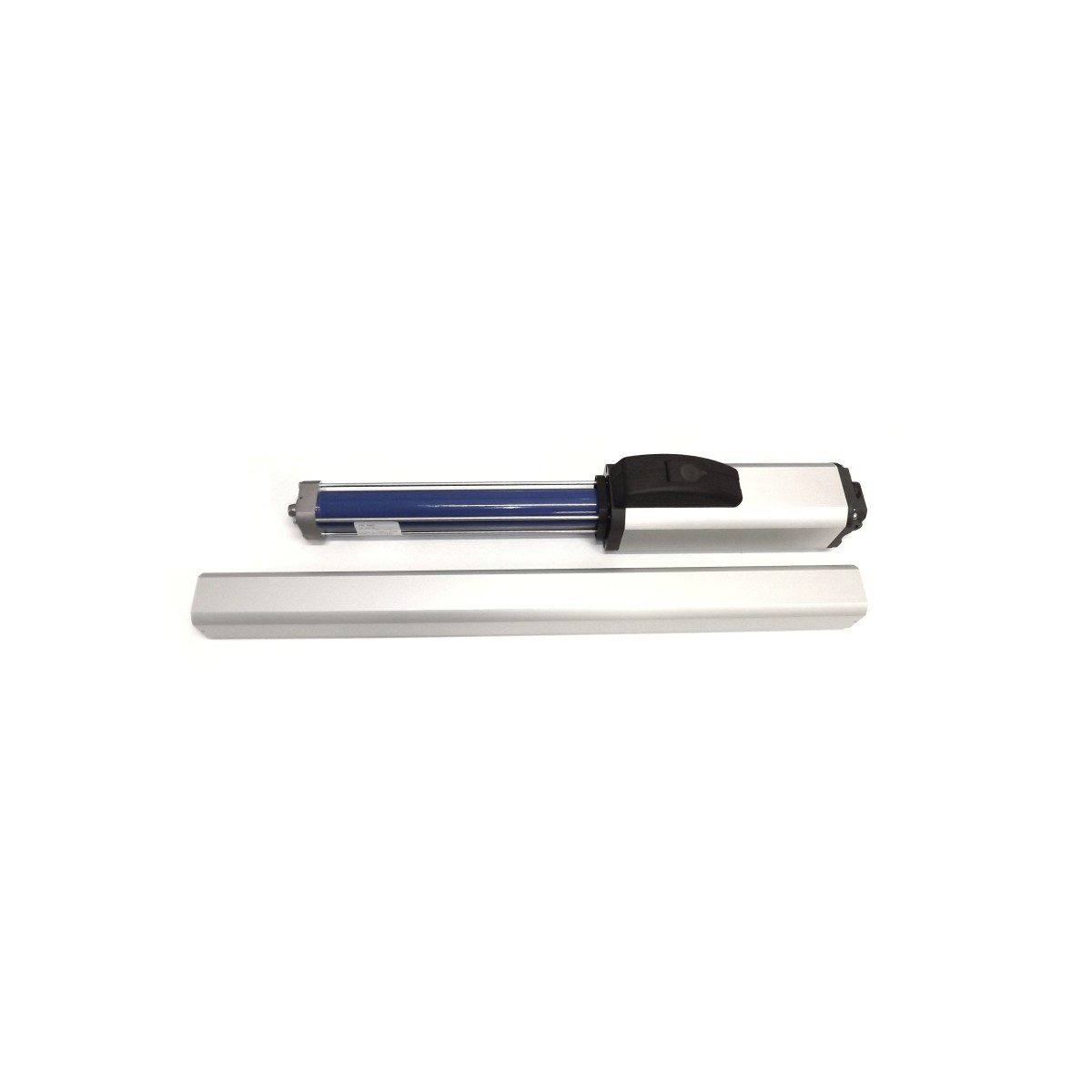

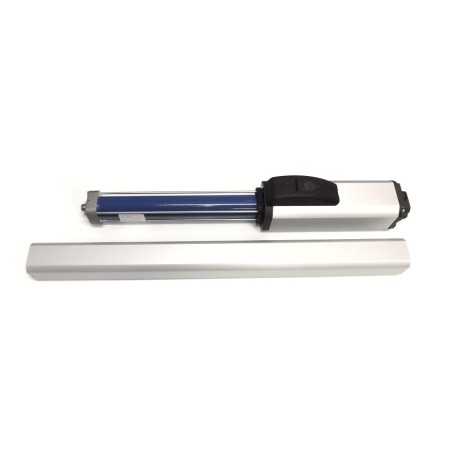

Hydraulic Hydraulic Motor Actuator Compatible APRIMATIC XT44 ZT44 ZT4 SF

Hydraulic operator without lock (requires electric lock)

The APRIMATIC 's XT and ZT series operators are no longer produced and are no longer available on the market. Despite this, there are still many implants that make great use of it. Our hydraulic motors are able to perfectly replace these old pistons without modifying the brackets, the central or the system in general.

Perfectly compatible with APRIMATIC, No modification to existing brackets is required.

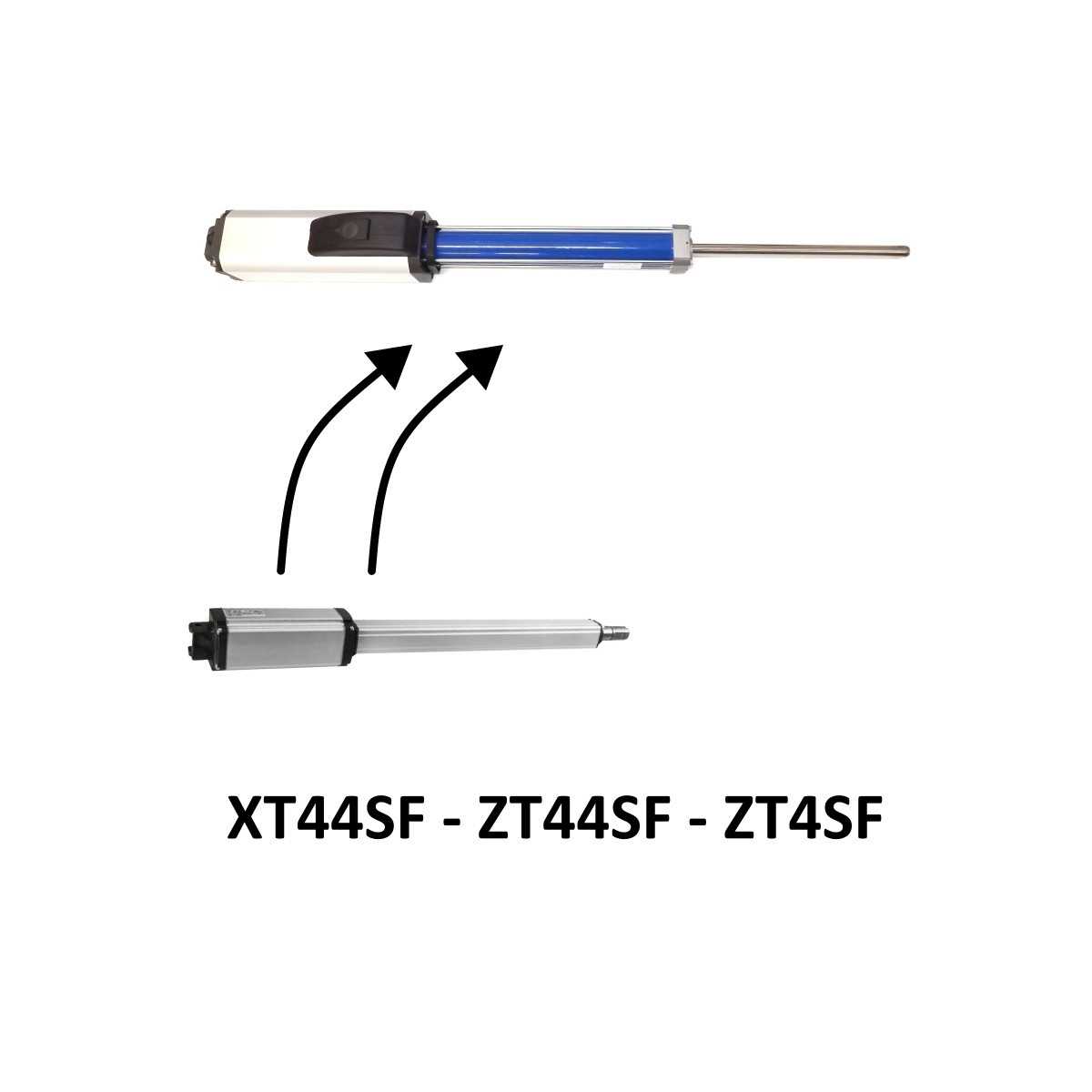

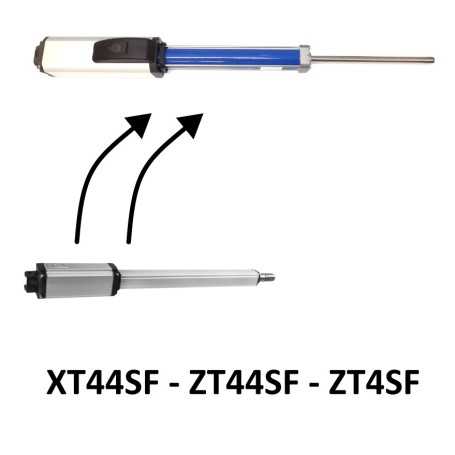

In particular, this engine version is compatible with the following older APRIMATIC models:

• XT44SF
• ZT44SF
• ZT4SF

What will I find in the box?

Once you have purchased the new operator, a product will arrive directly at your home that contains everything you need to be able to replace the old APRIMATIC that is not working. In particular, in the package you will find:

• capacitor
• Front joint
• Rear fork
• cable
• Carter
• Unlock key

(excluding front and rear weld connections) The anchoring brackets are not present precisely because it is not necessary to replace them with the old APRIMATIC.

Specifications:

• Mains supply voltage 220-240V~ 50/60 Hz
• Single-phase asynchronous electric motor
• Max power 220 W
• Max thrust force 5000 N
• Max no-load rod speed 15 mm/s
• Motor-pump unit flow rate 1 lpmw
• Rod stroke 275 mm
• Max sash opening angle 110°
• Operating ambient temperature -20°C ÷ +55°C
• Thermo-protection 120°C
• IP55 degree of protection
• Weight 7 Kg
• Frequency of use 55 cycles/hour
• Max leaf width 3 m
