TOPP
Item Number: 3A29901
MOD.: C40 230V
TYPE: ACTUATOR
LINE: C40
GENERAL DESCRIPTION C40 SERIES:

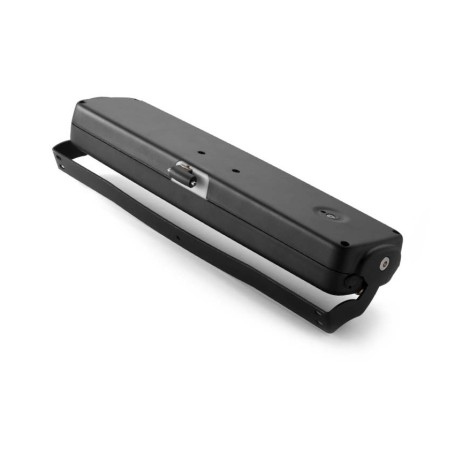

Chain actuator
Thrust force 400 N - Max stroke 500 mm adjustable

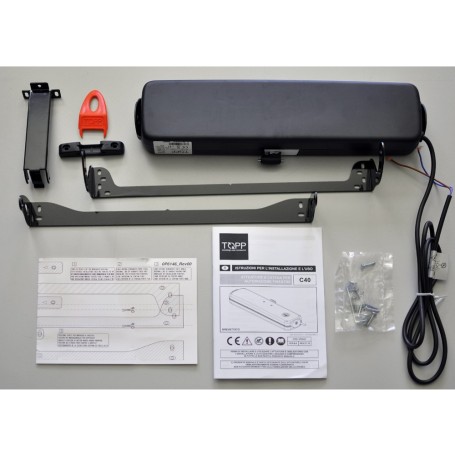

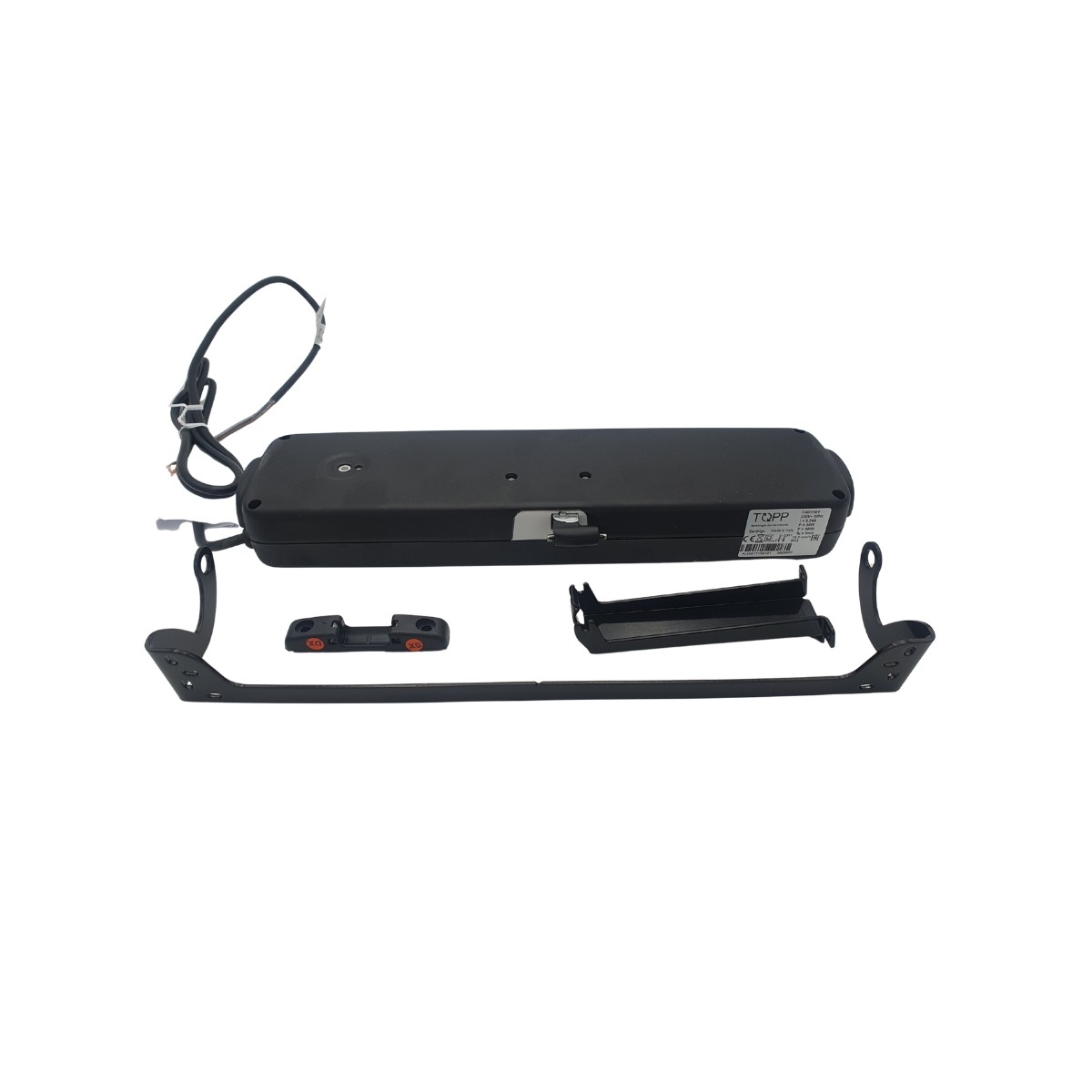

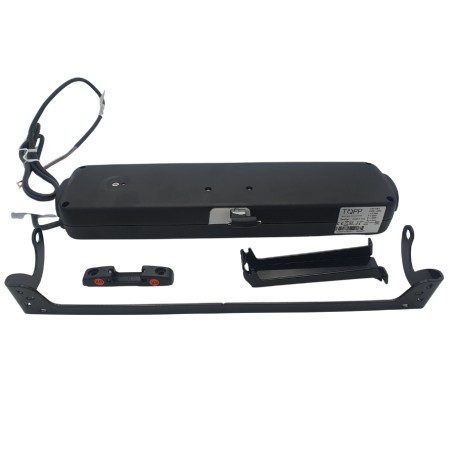

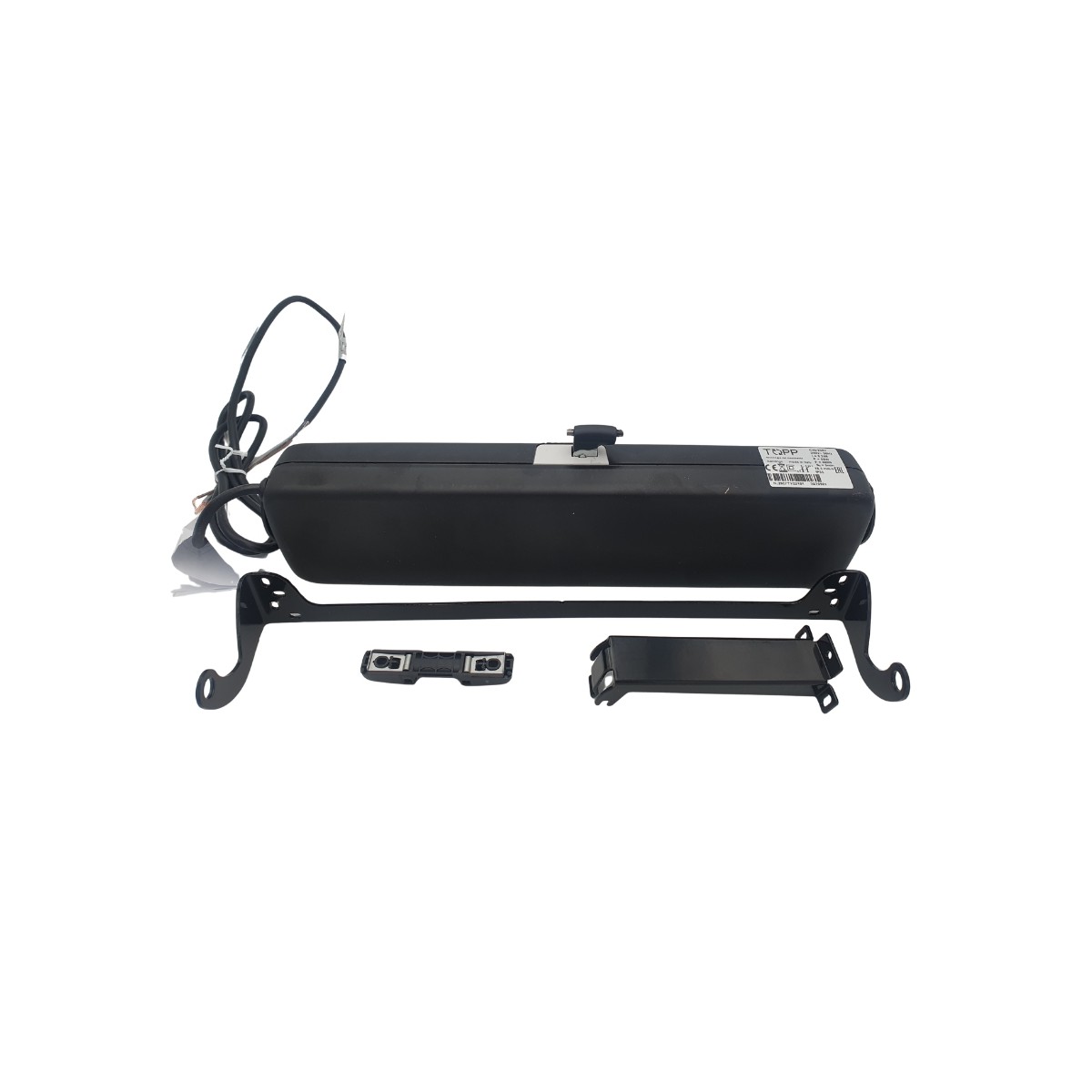

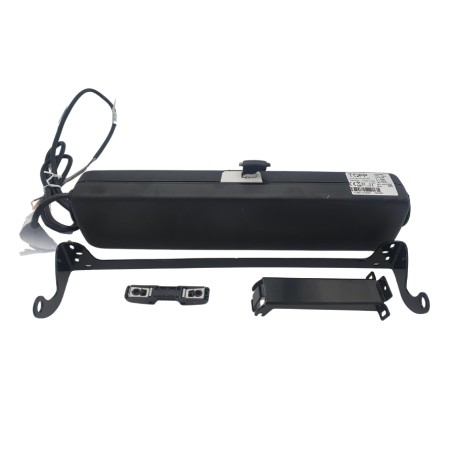

Electric actuator TOPP model C40 with double mesh articulated chain, contained in a special casing, complete with support and accessories for protruding or vasistas opening. Operation 230V 50 Hz, or, alternatively, 24 VDC. Maximum applicable load 400N.
Quick attachment to the frame. Maximum stroke of 500 mm with adjustment of the stroke in 7 positions (100, 150, 200, 250, 300, 400, 500 mm) by means of a special adjustment knob. Limit switch in electronic closure with current absorption. Safety device for reducing the tractive force in the last 10 cm of the stroke. Degree of protection of electrical devices IP 55. On request, available version S prepared for synchronization and simultaneous operation of multiple actuators installed on a single window.
CE marked luminaire.
Advantages:
Possibility of adjusting the stroke in 7 positions of 100 or 500mm.
Limit switch in closing with current absorption to avoid adjustments in closing and to remedy any errors in positioning the actuator.
High degree of protection IP55.
SPECIFICATIONS:
Supply voltage: 230V~50Hz
Maximum applicable thrust load: 400 N
Maximum applicable tensile load: 400 N
Strokes (selectable at any time): 100 - 150 - 200 - 250 - 300 - 400 - 500 mm
Absorption: 0,24 A
No-load travel speed: 18.5 mms
Empty stroke duration: 27 s
Double electrical insulation: yes
Type of service: S2 of 5 min
Operating temperature: - 5°C + 50°C
Degree of protection of electrical devices: IP 55
Adjustment of the connection to the frame: not necessary
Parallel connection of 2 or more actuators: yes
Connecting multiple C40s on the same window: S version
Chain position check: yes
End switch: Electronic at the opening, with amperometric absorption at the end
Acoustic device for incorrect mounting signalling: yes
Dimensions: 387,6x95x50 mm
Installed luminaire weight: 1,9 kg
Item Number: 3A29901
MOD.: C40 230V
TYPE: ACTUATOR
LINE: C40
GENERAL DESCRIPTION C40 SERIES:
Chain actuator
Thrust force 400 N - Max stroke 500 mm adjustable
Electric actuator TOPP model C40 with double mesh articulated chain, contained in a special casing, complete with support and accessories for protruding or vasistas opening. Operation 230V 50 Hz, or, alternatively, 24 VDC. Maximum applicable load 400N.
Quick attachment to the frame. Maximum stroke of 500 mm with adjustment of the stroke in 7 positions (100, 150, 200, 250, 300, 400, 500 mm) by means of a special adjustment knob. Limit switch in electronic closure with current absorption. Safety device for reducing the tractive force in the last 10 cm of the stroke. Degree of protection of electrical devices IP 55. On request, available version S prepared for synchronization and simultaneous operation of multiple actuators installed on a single window.
CE marked luminaire.
Advantages:
Possibility of adjusting the stroke in 7 positions of 100 or 500mm.
Limit switch in closing with current absorption to avoid adjustments in closing and to remedy any errors in positioning the actuator.
High degree of protection IP55.
SPECIFICATIONS:
Supply voltage: 230V~50Hz
Maximum applicable thrust load: 400 N
Maximum applicable tensile load: 400 N
Strokes (selectable at any time): 100 - 150 - 200 - 250 - 300 - 400 - 500 mm
Absorption: 0,24 A
No-load travel speed: 18.5 mms
Empty stroke duration: 27 s
Double electrical insulation: yes
Type of service: S2 of 5 min
Operating temperature: - 5°C + 50°C
Degree of protection of electrical devices: IP 55
Adjustment of the connection to the frame: not necessary
Parallel connection of 2 or more actuators: yes
Connecting multiple C40s on the same window: S version
Chain position check: yes
End switch: Electronic at the opening, with amperometric absorption at the end
Acoustic device for incorrect mounting signalling: yes
Dimensions: 387,6x95x50 mm
Installed luminaire weight: 1,9 kg
- Family TOPP
- C40
- Color
- Black
- Max torque
- 400N
- Max stroke
- 500 mm
- Model
- Single
- Electric motor
- 230V
