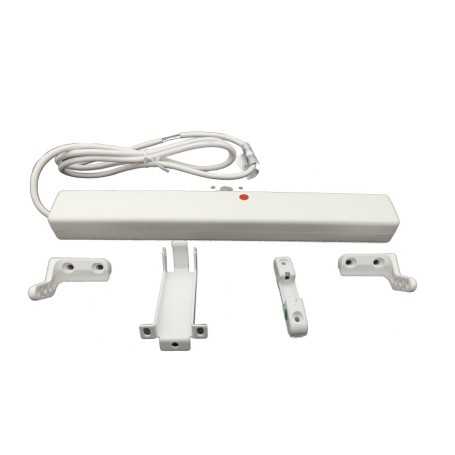

Chain motor actuator for vasistas windows TOPP C20 230V 3A39902 WHITE

C20 SERIES GENERAL DESCRIPTION:

Chain Actuator
Thrust force 300 N - Max stroke 360 mm

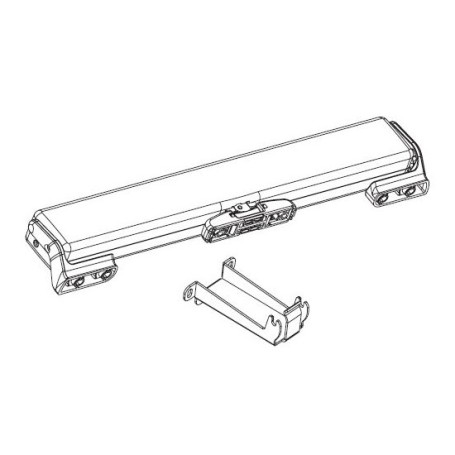

Electric actuator TOPP model C20 with double-link articulated chain, contained in a special casing, complete with support and accessories for protruding or bottom-hung opening.
Operation 230 V 50 Hz. Maximum applicable load 300 N. Quick coupling connection to the frame. Stroke adjustable from the outside by means of a selection switch with stops at 240 and 360 mm. CE marked device.

Advantages:
Double-link chain with very high resistance to peak loads.
High stroke combined with small actuator dimensions to allow applications that require minimal space requirements (international patent on the chain path).
Closing limit switch with current absorption to avoid closing adjustments and obviate any errors in the positioning of the actuator.

SPECIFICATIONS:

• Supply Voltage: 230V~50Hz
• Maximum load that can be applied in thrust: 300 N
• Maximum tensile load: 200 N
• Strokes (selectable at any time): 240 and 360 mm
• Power consumption: 0.12 A
• No-load travel speed: 8 mms
• No-load stroke duration: 46 s
• Double Electrical Insulation: Yes
• Type of service: S2 of 4 min
• Operating Temperature:-5°C + 50°C
• Degree of protection for electrical devices: IP 30
• Adjustment of the connection to the frame: not necessary
• Parallel connection of 2 or more actuators: yes
• Limit switch: Electronic in opening, amperometric absorption in closing
• Dimensions: 362x48x34 mm
• Weight: 0.970 kg
