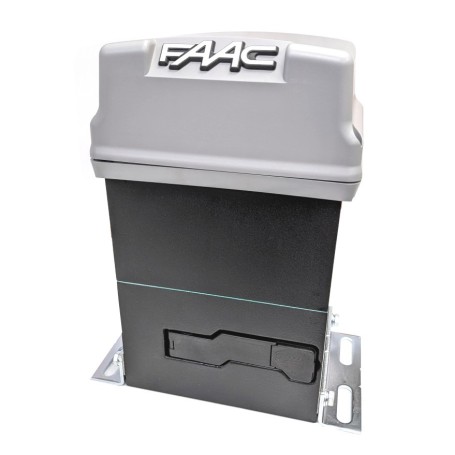

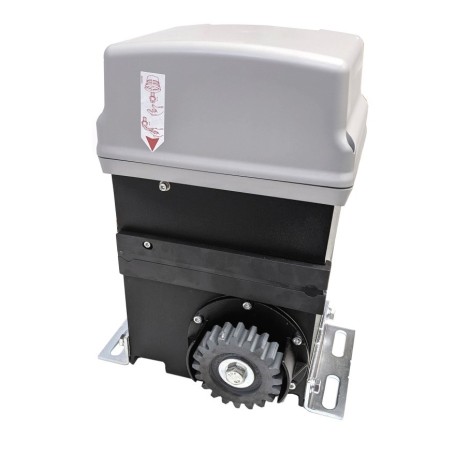

Sliding motor FAAC 844 C Z16 230V – Code 109925 (replaces 109837)

The FAAC 844 C Z16 (code 109925) is the new gearmotor for sliding gates up to 1800 kg, designed to replace the previous model 844 E R Z16 (code 109837). The C version introduces significant improvements in terms of electronics, safety and performance.

It is equipped with the integrated E781 electronic board , which allows simplified programming via dedicated display and buttons. The high-resolution magnetic encoder allows precise motion control, with smooth acceleration and deceleration ramps and adjustable sensitivity for obstacle detection.

The motor is compatible with Simply Connect and FDS radio technologies, offering the possibility of remote management and integration with advanced systems.

Specifications:

• Power supply: 230V AC – 50/60 Hz

• Power consumption: 230 W

• Maximum leaf weight: 1800 kg

• Maximum sash length: 40 m

• Leaf speed: 9.5 – 12 m/min

• Maximum thrust force: 1300 N

• Pinion: Z16 module 4

• Limit switch: Magnetic

• Encoder: High-resolution magnetic

• Degree of protection: IP44

• Operating temperature: -20°C ÷ +55°C

• Stopping distance: 30 mm

• Electronic board: Built-in E781

• Compatibility: Simply Connect, radio FDS

• Safety edge inputs: 2 (NC or 8.2 kΩ)

• Unit weight: 16.9 kg

• Dimensions: 275 x 191 x 336 mm

• Oil type: FAAC HP OIL

• Frequency of use: 70%

Package Contents:

• FAAC 844 C Z16 gearmotor with integrated E781 board

• Sprocket Z16

• Manual release key

• Cover casings

• Limit switch magnets

• Installation Manual

The FAAC 844 C Z16 is the ideal solution for the automation of large sliding gates, offering reliability, safety and ease of installation.
