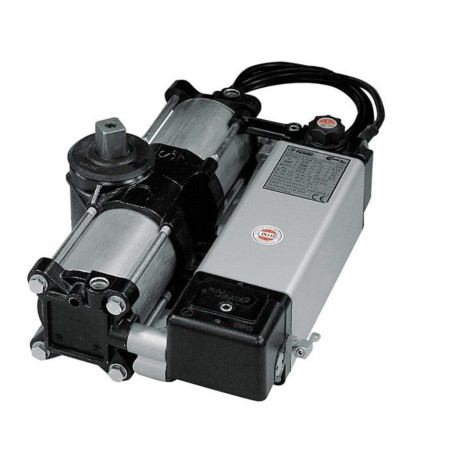

Left underground actuator for swing gates FADINI COMBI 740 175° 769N3SXL

GENERAL DESCRIPTION COMBI 740 175° SERIES:

FOR SWING GATES
Hydraulic actuator with underground mounting
For residential and industrial use

DISCREET, STRONG AND INVISIBLE
Compact hydraulic actuator consisting of hydraulic power unit and integrated jack, housed inside the treated steel foundation box (3 mm thick with electrolytic galvanizing), to ensure high resistance to corrosion. Foundation box available in AISI 304 stainless steel. It does not require any special maintenance.

HYDRAULIC
Wide range of versions (right and left) to meet any type of installation: reversible without hydraulic block, with bidirectional hydraulic lock (irreversible), with self-braking hydraulic slowing in opening and closing and with flow regulator. Anti-crushing safety guaranteed by the by-pass valves on the actuator. Shaft rotation up to 110° or up to 175°; Safe and quiet movement.

SURE
Emergency release control in pressed steel, easy to operate both from the inside and from the outside by means of a special key with ergonomic handle.

TESTED & CERTIFIED
CE marking with type tests.


PRODUCT DESCRIPTION FADINI 769N3SXL:

VERSION: Left
BIDIRECTIONAL HYDRAULIC LOCK (irreversible): not available
SELF-BRAKING DECELERATION: not available
FLOW REGULATOR: not available
MAX LENGTH OF SINGLE LEAF (m): 3
MAX WEIGHT OF SINGLE LEAF (kg): 700


Each code includes a hydraulic actuator complete with power cable. For codes containing the letter "N" (without hydraulic lock - reversible) the use of an electric lock is required. For leaves longer than 2 m, the use of an electric lock is required.



SPECIFICATIONS:

Mains power supply (Vac - Hz): 230 - 50
Power consumption (W): 250
Current consumption (A): 1.2
Power output (kW/HP): 0.18 / 0.25
Working Torque (Nm): 250-400
Operating Temperature(°C): -20 ÷ +80
IP rating: 67
Oil Type: 708L
