Control board control board for gates FADINI ELPRO 27 7047L

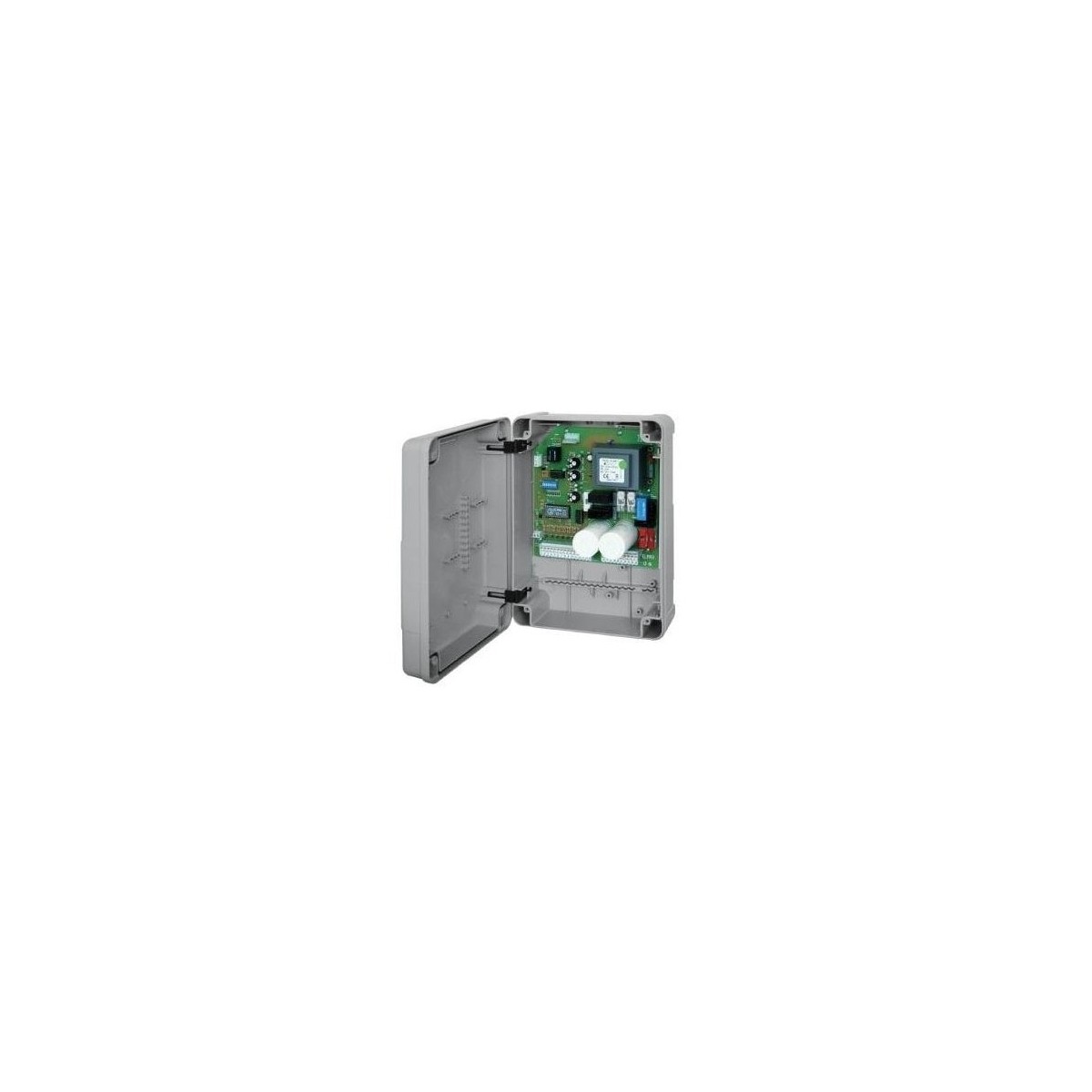

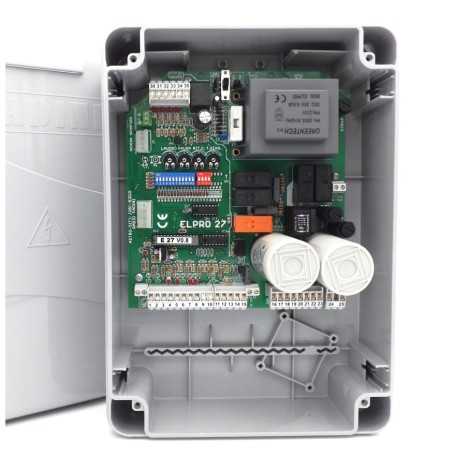

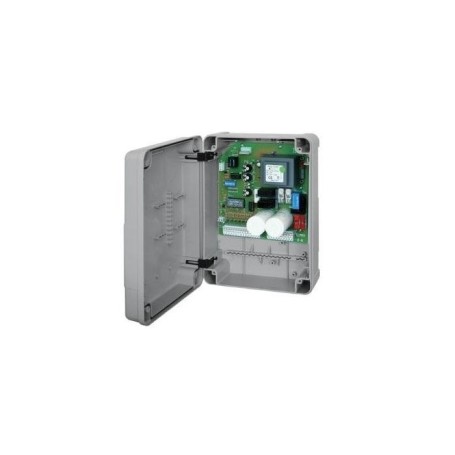

Control unit complete with watertight box for swing gates with or without limit switches. The programming is very simple and takes place through the use of dip-switches and trimmers, therefore with an old logic but consolidated over time.

The main functions of this control unit are: intuitive adjustments via trimmer and dip-switch: electric lock power supply, photocell self-test (DSA), safety edge self-test (DACS), traffic light predisposition for up to three lights, time memorization, automation status signaling. Container dimensions 210x295x110 mm. IP 64 protection cable. Operating temperature -20°C +55°C

This control board is compatible with the following systems in the FADINI:

• HINDI 880
• MEC 800
• APROLI 280
• COMBI 740
• COMBI 787
• DRIVE 700

What are the main features of the ELPRO 27 by FADINI?

• 1PH board power supply (Vac - Hz): 230 - 50/60
• 3PH Board Power (Vac - Hz): -
• Max motor power (W): 750
• Courtesy light output (Vac - W): 230 - 100
• Photocell/selector/radio receiver output (Vac): 24
• Indicator light output (Vac - W): 24 - 3
• Output for DSA control (Vac - mA): 24 - 150
• Flashing Output (Vac - W): 230 - 25
• Working Time(s): 0 - 120 (Sliding)
