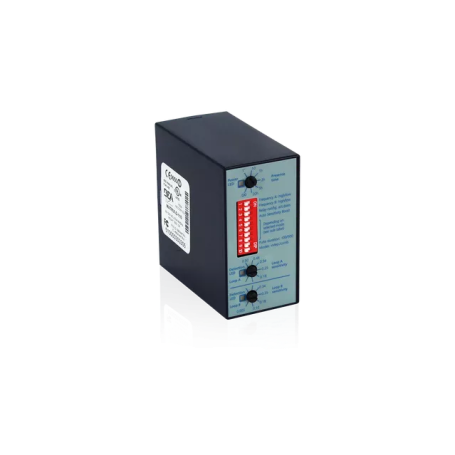

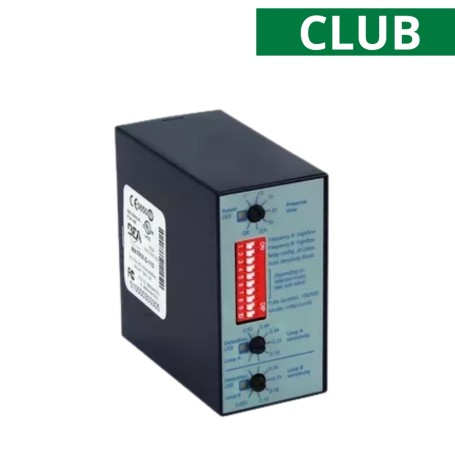

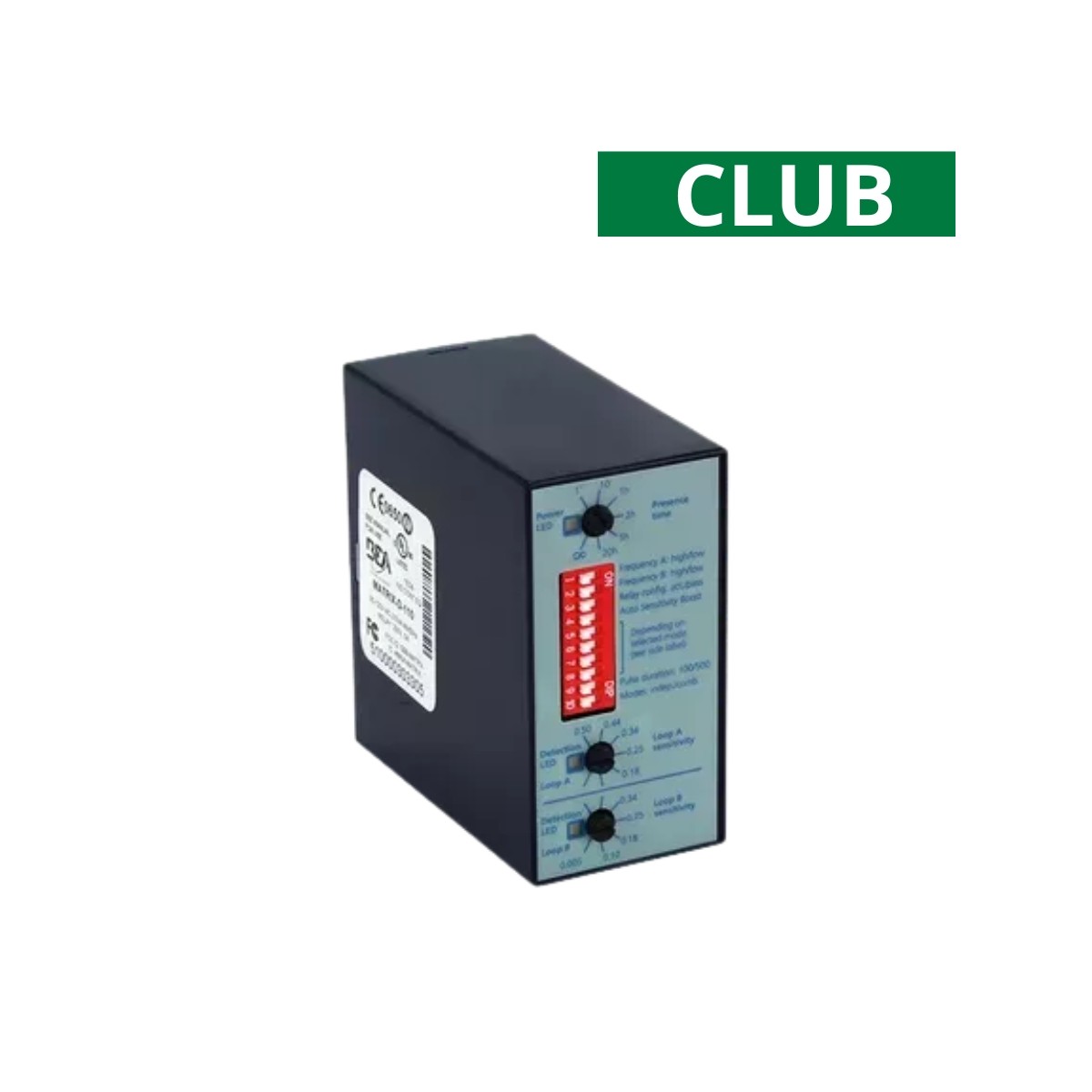

BEA MATRIX – D 12-24 | Inductive loop detector 2 channels 12-24V DC

The BEA MATRIX – D 12-24 is an inductive loop presence detector designed to detect vehicles and metal objects in industrial and commercial applications. It is particularly suitable for the automation of industrial doors, driveways and road barriers, where high reliability in detection is required.

The device monitors two independent loops and also allows the control of the direction of transit of vehicles thanks to the two-channel configuration. The presence of 4 selectable frequencies allows you to avoid interference between adjacent turns or with other devices installed nearby.

The ASB (Automatic Sensitivity Boost) function automatically increases sensitivity, making detection effective even in critical conditions, such as vehicles with low ground clearance or forklift forks. Thanks to the standard connection via an 11-pin connector, the BEA MATRIX is compatible with most control panels on the market.

Robust and reliable, it is designed to operate in a wide temperature range, making it suitable for harsh industrial environments.

Technical features
• Power supply: 12-24 V DC
• Number of channels: 2
• Outputs: 2 relays
• Maximum switching current: 5 A
• Frequencies: 4 selectable frequencies
• Frequency levels: 2 per channel
• ASB function for automatic sensitivity increase
• Direction of travel detection possible
• Connection type: 11-pole connector
• Housing: pluggable, 11-pin
• Degree of protection: IP40
• Operating temperature: -30 °C to +40 °C

Typical Applications
• Automatic industrial doors
• Road barriers
• Vehicular access control
• Vehicle and industrial vehicle detection
