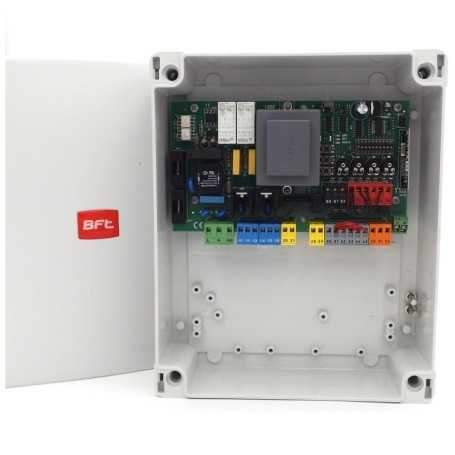

Control board central unit for 230V operator motors BFT ALENA SW2 D113811 00004

Control panel with dip switches and potentiometers for one or two operators of 230V/800W used in swing gates and industrial folding doors with management of a sensitive edge and the possibility of checking the safety inputs.

It can handle the slowing down of the gate in both the opening and closing phases.

It can also manage the connection with an EBP electric lock or with an ECB (with ME add-on card). The radio receiver is incorporated with rolling code technology.

The terminal blocks are coloured and removable to make wiring easier.

Application: control panel for 1 or 2 operators in 230V for electromechanical swing gates or industrial folding doors.

Board power supply: 230V single-phase

Operator power supply: 230V 400W max per operator

Main features: removable terminal blocks with new color standard, dip switch and potentiometer programming, built-in two-channel receiver, slowdown management and pedestrian control only from radio control.

Main functions: 3/4 step logic, pedestrian opening, safety devices verified in self-diagnosis

Compatibility: ALTAIR P, ALTAIR and ARIES.

Equipped with watertight outdoor box.

Replaces the previous ALENA ACL2 version D111811 00002

SPECIFICATIONS:

SAFETY INPUTS

• Photocell
• Active Coast
• Resistive Coast
• Photocell verified
• Verified Active Coast
• Stop
• CONTROL INPUTS
• Start
• Open

OUTPUTS

• Flashing light 230V - 40W
• Maximum power: 400+400 W
• Board power supply: 220-230 V
• N. Max Radio Controls: 63
• Programming: DIP+TRIMMER
• Accessory power supply: 24V - 0.2A
