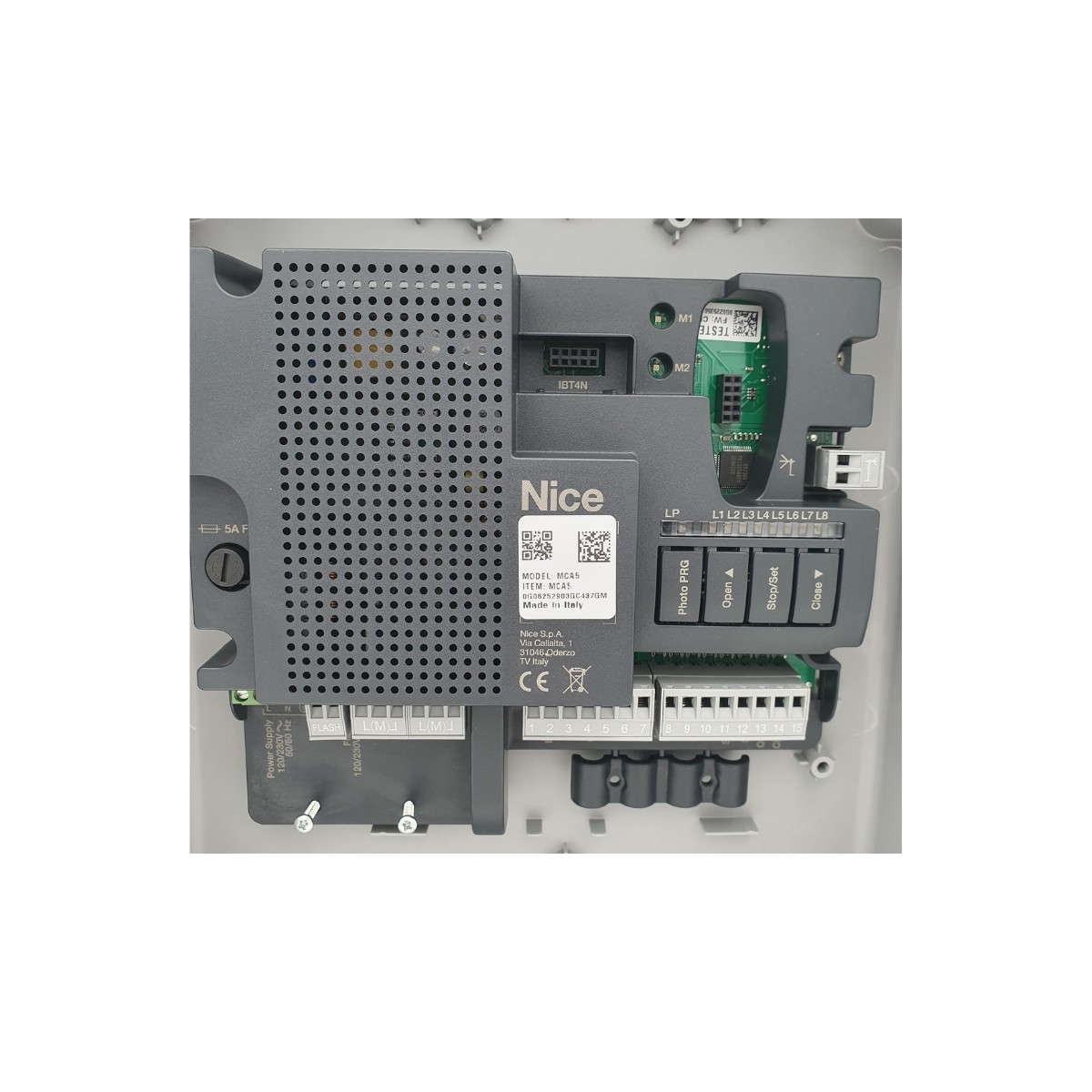

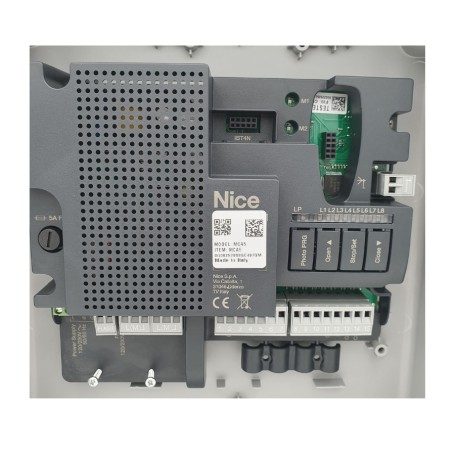

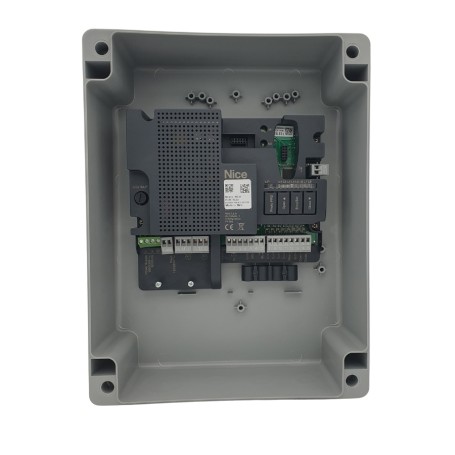

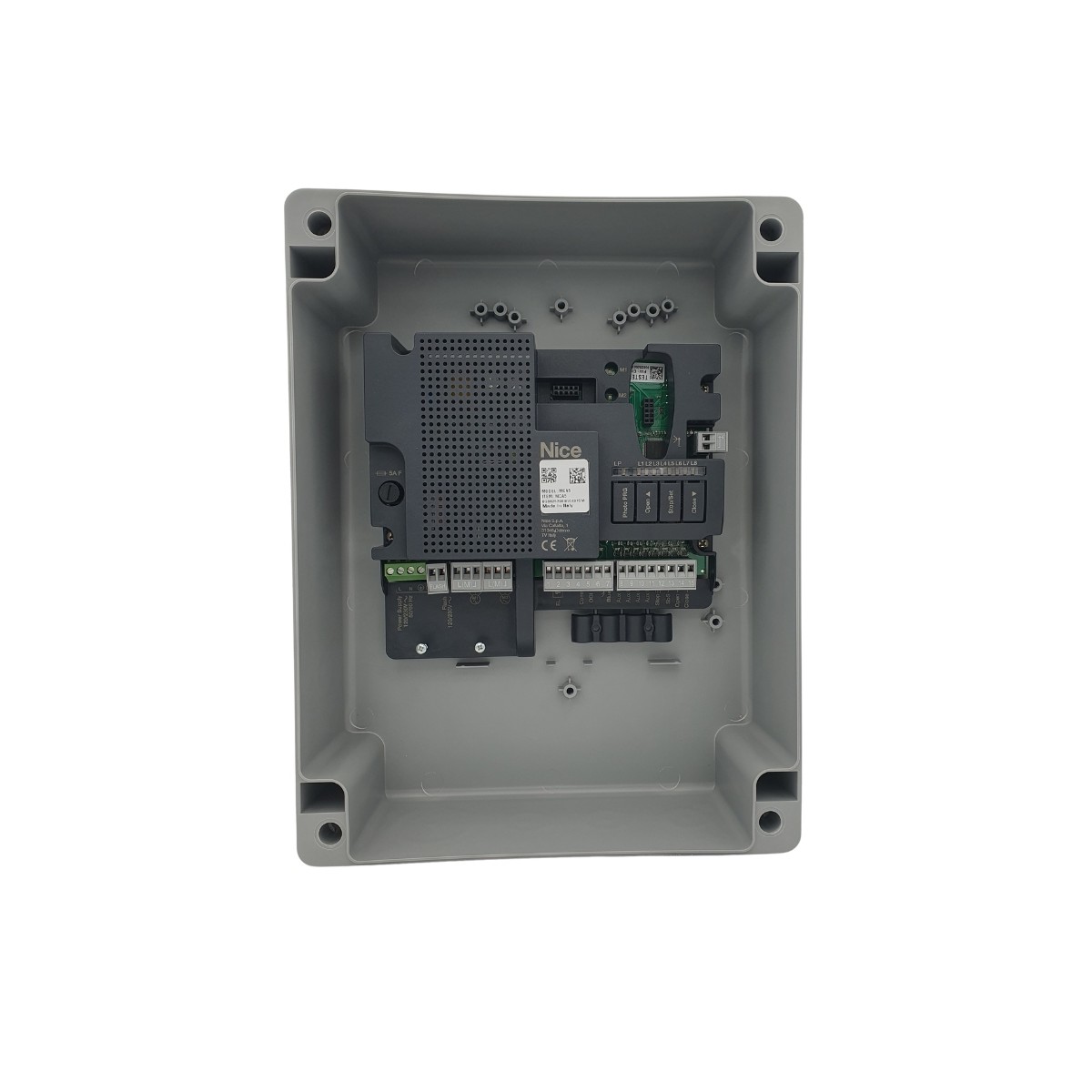

Central Control Board Two 2 motors 220V 230V Bus T4/B NICE MC800

NICE control unit for 230V operators replaces old control panels such as the A60/A that are no longer produced. The connector for the radio cards is the same so the receiver can be switched from the old to the new. The MC800 has all the features of the new NICE control panels but with some features that make it backwards compatible.

For example, it has the BlueBus for connecting equipment such as photocells, but through special programming we can also connect traditional photocells. So you don't have to change anything in the system if we integrate the MC800 in place of an old 230V NICE power plant.

What are the technical characteristics of the MC800 of the

• Mains power supply (Vac 50/60 Hz): 120/230
• Max motor power and current (W; A): 900; 5
• Max service current 24 V (A): 0.2
• Max flashing output voltage and power (V; W): 120/230; 21
• Max AC indicator light output voltage and power (V; W): 24; 4
• Maximum voltage and power output of the electric lock (Vac; VA): 12; 15
• TL Working Time(s): -
• TP Break Time(s): 5 - 180
• Delay time 1 motor in opening TRA (s): Programmable
• Delay time 2 motor closing TRC (s): Programmable
• TCOR Courtesy Light Time (s): 0:250
• TPRE Pre-Flash Time (s): 0:10
• Force Setting(%): -
• Container dimensions (mm): 230x120x300 h
