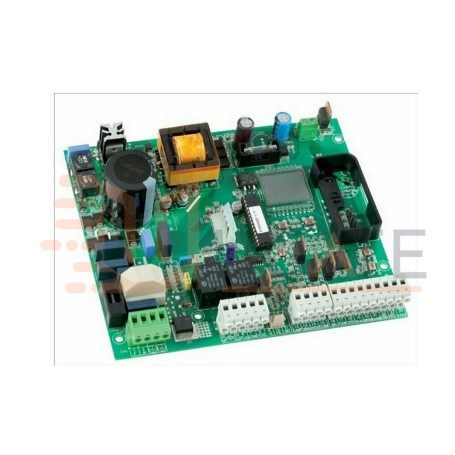

Central panel board Lynx 07 24V SW 6020560 Original Spare FAAC GENIUS

GENIUS 6020560

Electronic equipment for barriers
Incorporated into Rainbow Fast 324 C and Rainbow 524 C barriers

SPECIFICATIONS:
Supply voltage and frequency: 230 Vac 50 Hz / 115 Vac 60 Hz
Power consumption (W): 5
starting power (W): 280
load (mA): 500
Operating Temp (°C): -20 +55
Protection fuses: 2 replaceable fuses + 4 self-resetting fuses
Operating logic: Automatic (A) / Automatic step-by-step (AP) / Manual (E) / Manual step-by-step (EP) / Condominium (D)
Maximum opening/closing time (sec): 60
Pause time: Adjustable to 7 levels from 5 seconds up to 4 minutes
Encoder sensitivity: Adjustable on four levels
Terminal block inputs: Mains power supply (230/115 Vac) / FCA and FCC limit switches / Photocells / Stop / Open-Close / Open / Close / Safety test / Batteries
Quick connector: 3-pin molex socket for encoder / 3-pin input for receiver module
Terminal block outputs: Motor power supply 24Vdc / Flashing 24Vdc / Indicator lamp 24Vdc max. 5W / Rod lights 24Vdc / Synchronization of opposing barriers / Accessory power supply / Battery charger
Board dimensions (mm): 168 x 146

Warranty 24 Months
