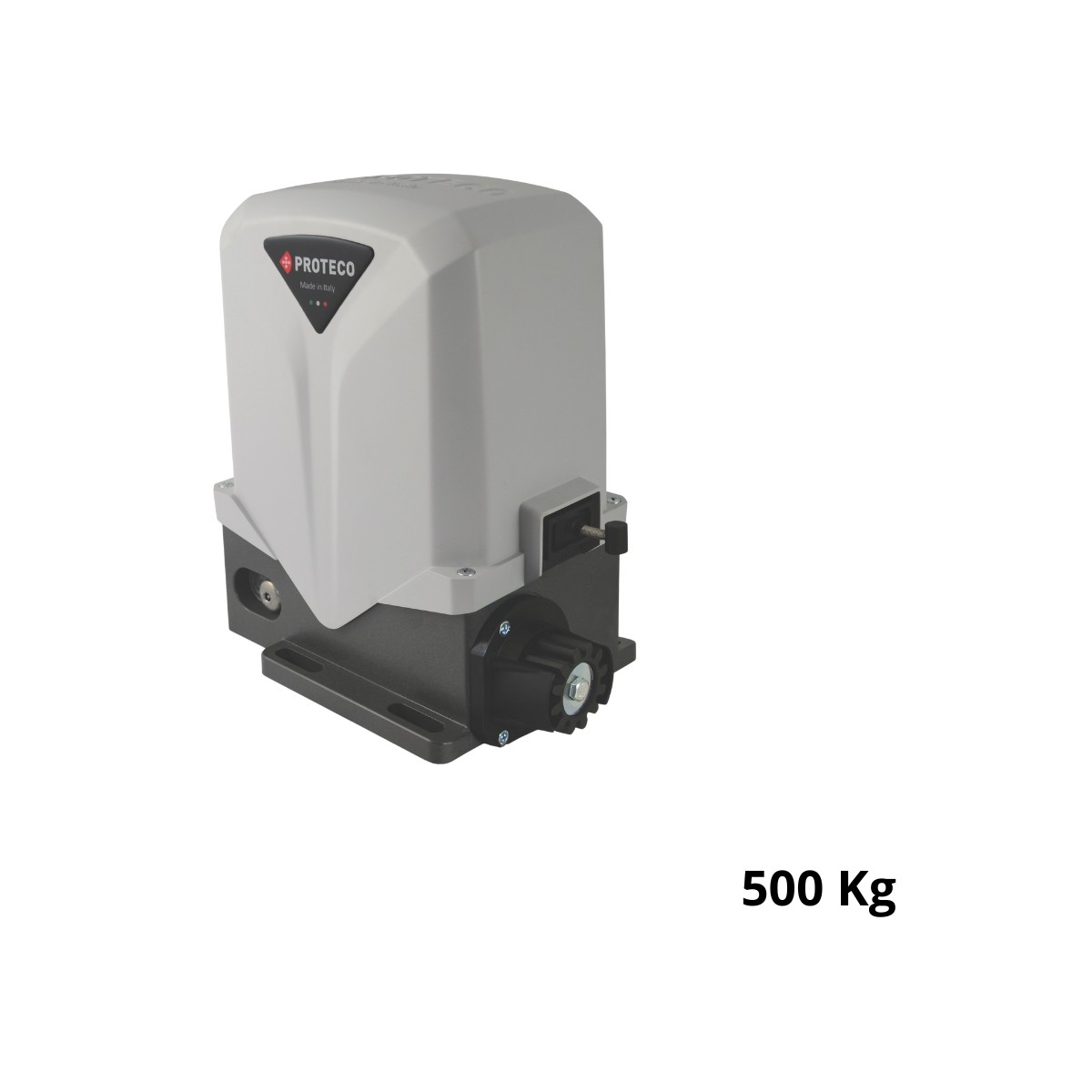

Mover 5 PROTECO - Motor for sliding gates up to 500 kg with built-in control unit

The Mover 5 by PROTECO is an electromechanical gearmotor designed to automate residential sliding gates up to 500 kg. Thanks to its compact design and small size, it is ideal for installations in limited spaces and is an excellent solution for replacing operators of other brands without the need to change the positioning of the rack.

Key features:

• Compactness and robustness: The Mover 5 combines a small footprint with a solid construction, allowing installation even in confined spaces without compromising durability and reliability.

• Internal metal mechanics: Equipped with bronze gears, it ensures efficient transmission and a long operating life.

• Adjustable anchor plate: The plate can be adjusted both horizontally and vertically, making it easy to install and precisely align the motor.

• Manual emergency release: In the event of a power failure, the manual release system allows for quick and easy opening of the gate.

• Mechanical limit switch: The Mover 5 is equipped with a mechanical limit switch for precise stopping of the gate in the desired position.

• Integrated management centre: The on-board control unit offers advanced functions such as anti-crush protection and a removable radio receiver for optimal automation management.

Specifications:

• Power supply: 230V~50Hz

• Power consumption: 1.2 - 1.7 A

• Power: 250 W

• Maximum thrust: 350 N

• Opening speed: 8.5 m/min

• Duty cycle: 40%

• Degree of protection: IP44

• Maximum gate weight: 500 kg

To further enhance the versatility of the Mover 5, it can be combined with the UNI-RXOD-2-BOX universal receiver, available on our website. This combination allows you to maintain your existing radio remote controls, offering a practical and cost-effective solution for upgrading your automation system.

By choosing the Mover 5 from PROTECO, you opt for a simple, reliable installation compatible with a wide range of accessories, ensuring safety and convenience in the automation of your sliding gate.
