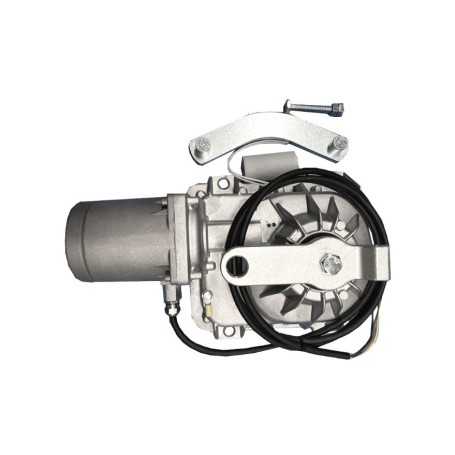

230V electromechanical underground operator motor compatible with FROG CAME

This operator is perfectly compatible with the underground motor of the CAME model: FROG and FROG A.

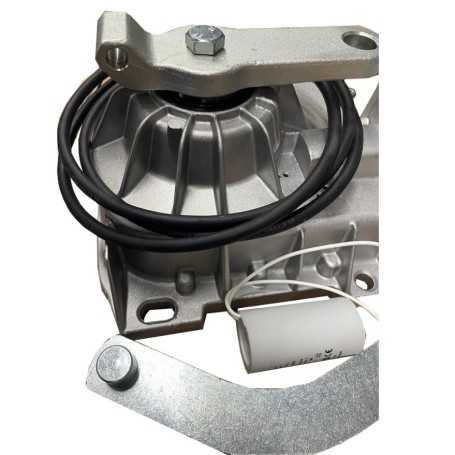

In the package there is also the lever and the capacitor as seen in our product photo.

For the sake of clarity, the FROG A is the CAME model with encoder. In the proposed compatible model there are fixing holes for mounting the encoder (which is not supplied). If you need to replace the original CAME product with the compatible one, you will have to disassemble the encoder from the FROG A and mount it on the compatible motor, or in the event of an encoder failure, buy the original CAME spare part.

This product does not have a right and left hand, it can be mounted indifferently in both directions.

SPECIFICATIONS

Line power supply: 230V AC - 50Hz

Motor power supply: 230V AC

Rated Power: 200W

Frequency of use: 30%

Torque: 300 N m

Operating temperature: -20+55°C

Degree of protection: IP67

Reducer Type: Irreversible

Manoeuvring speed: 1.2 Rpm

Opening time: 19 s

Motor temperature protection: 150°C

Limit switch: Mechanical fasteners

Encoder: Optional accessory

Maximum aperture: 105°

Power Cord Length: 2m

Main shaft bearing: Standard

Maximum product dimensions mm (L x W x H): 345 x 224 x 144

Packaged Product Weight (Kg): 13,6
