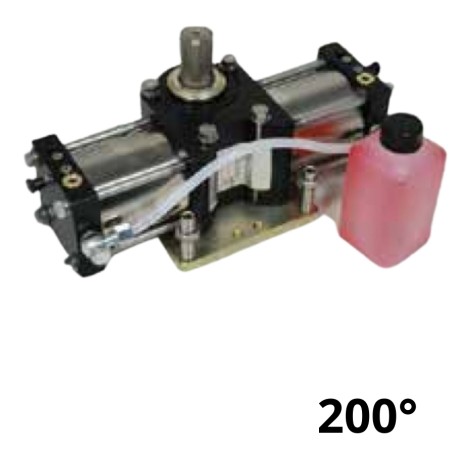

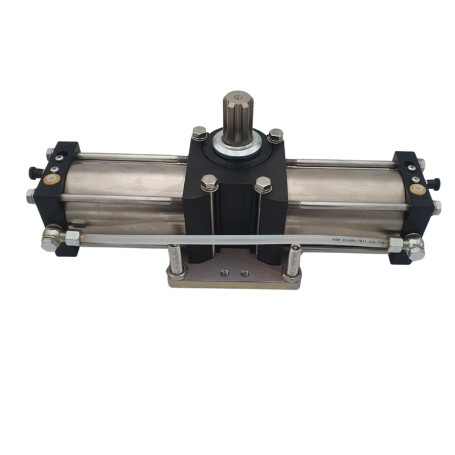

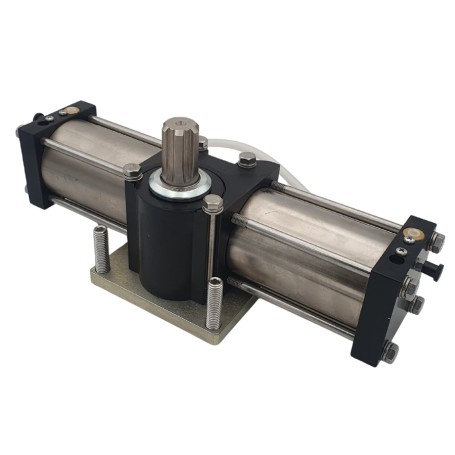

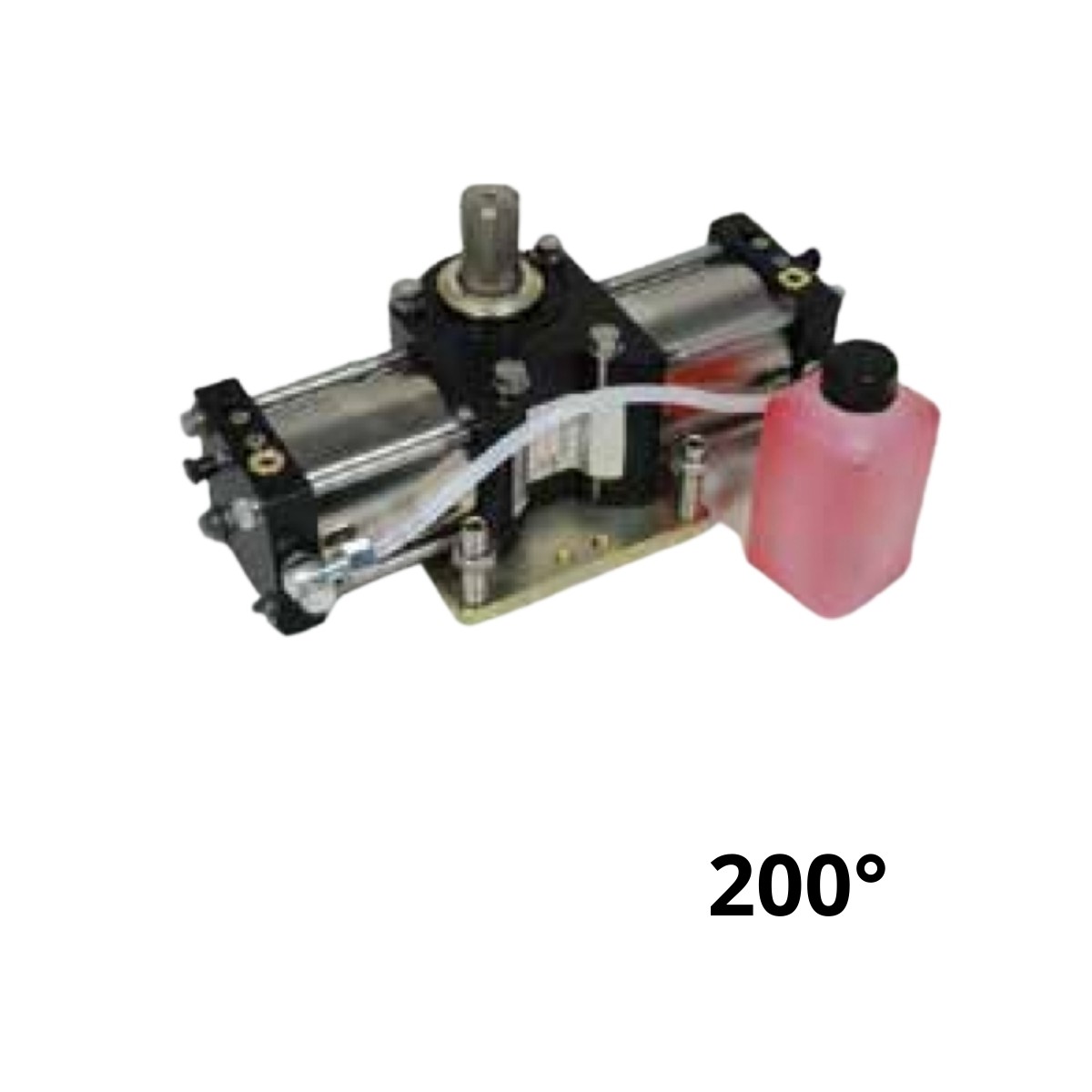

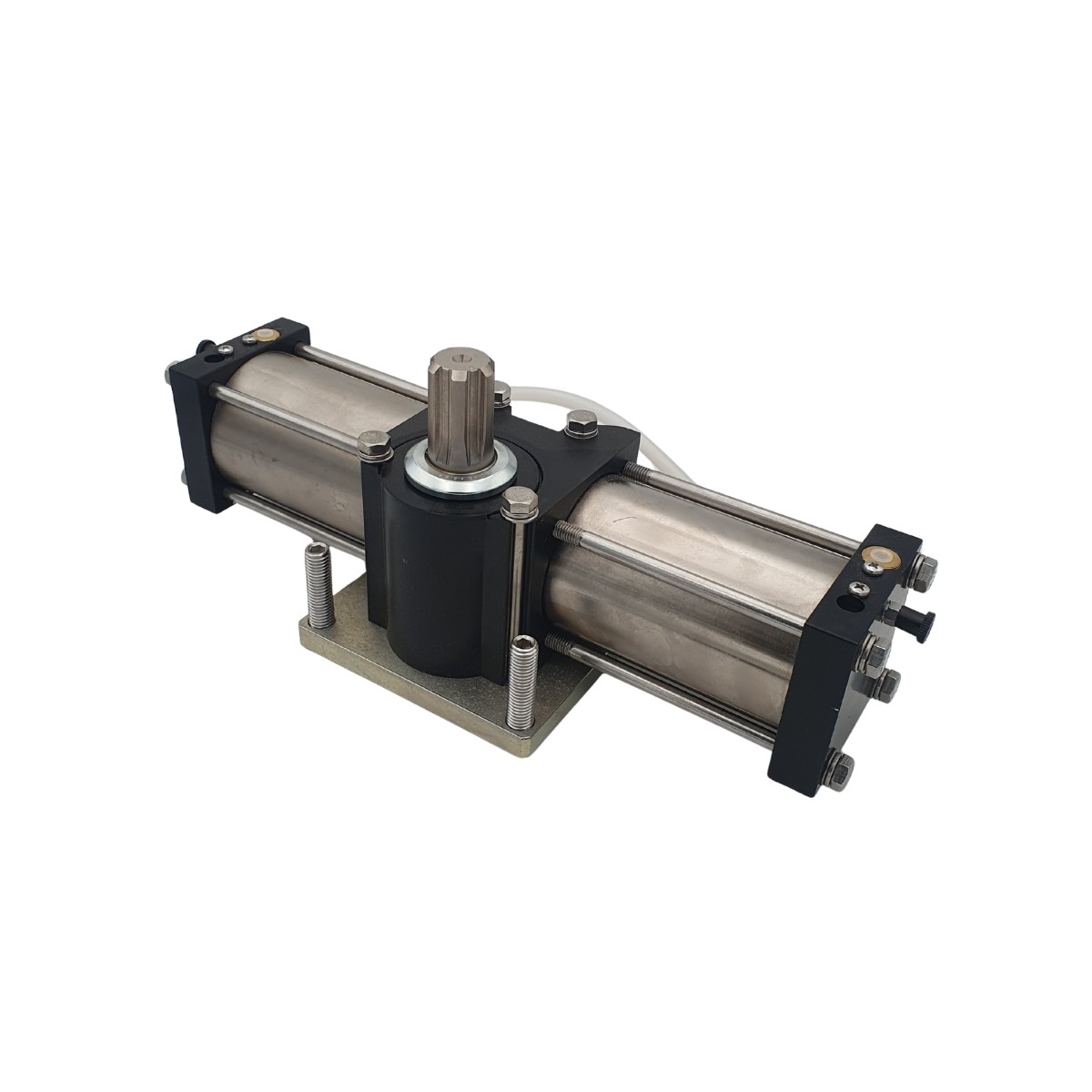

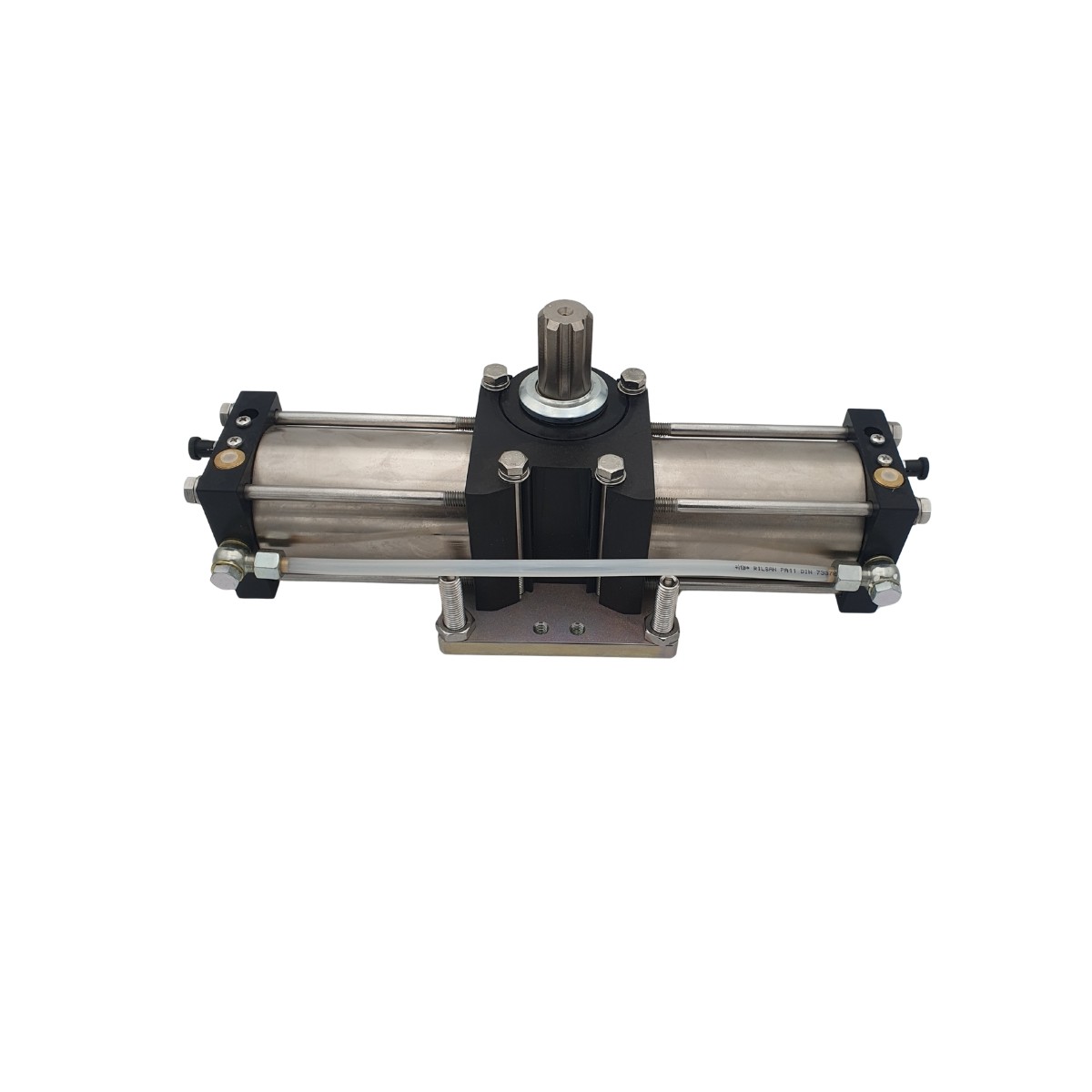

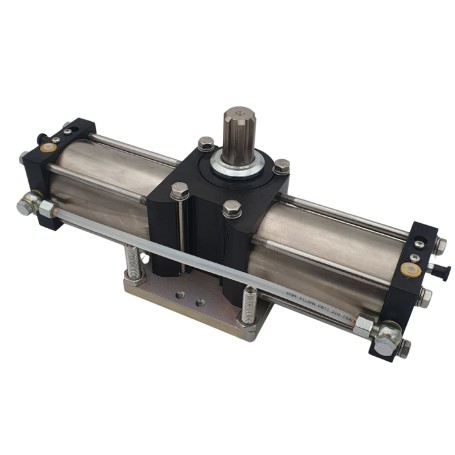

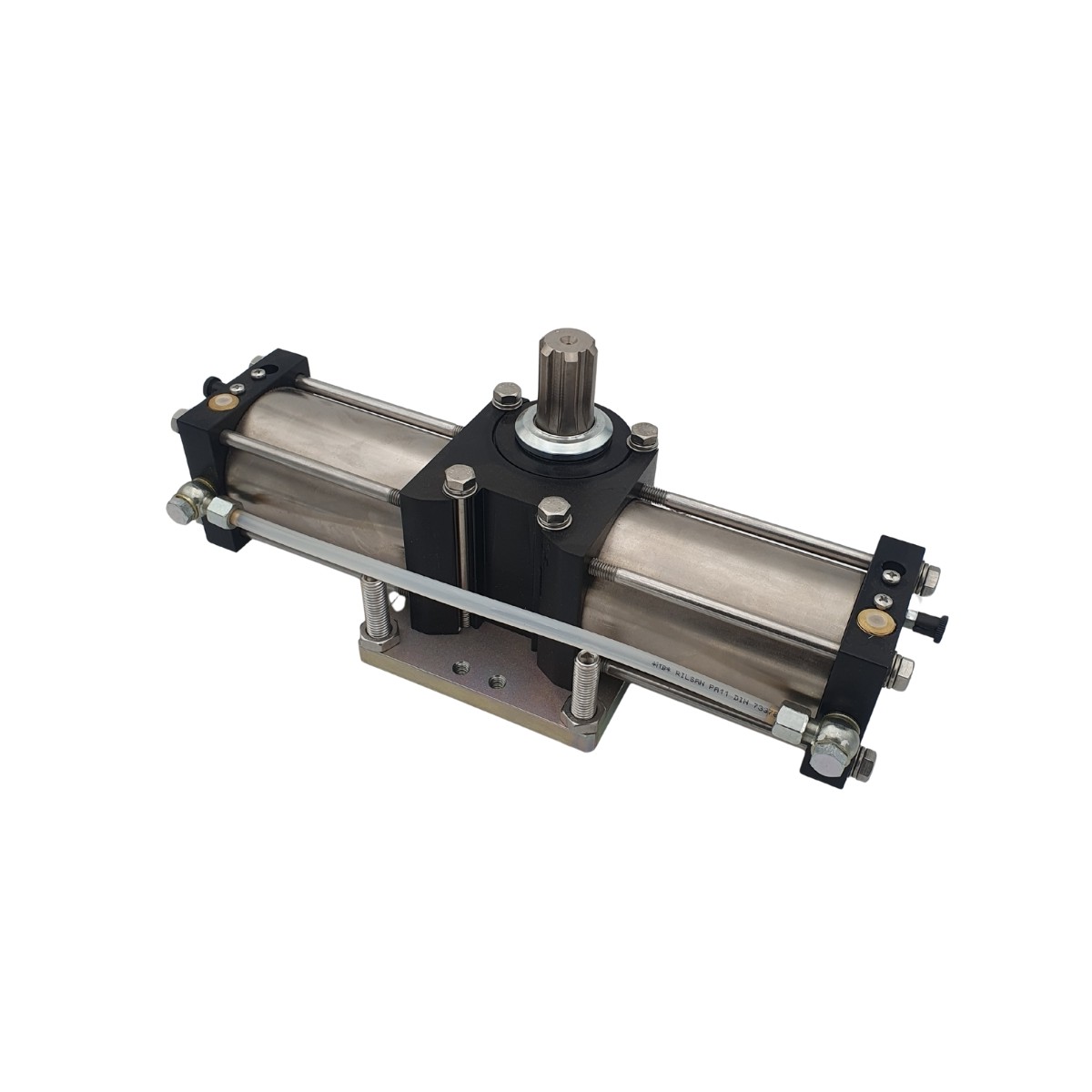

UNI-HYD-200 – AT176 APRIMATIC compatible hydraulic jack with opening/closing slowdowns (200°)

The UNI-HYD-200 is a hydraulic jack designed to replace the AT176 APRIMATIC operator directly and without adaptation.
Thanks to the identical output pinion and equivalent dimensions, installation is simple and does not require any modifications to the existing system.

Compared to the UNI-HYD-110, this model offers a larger opening angle of up to 200°, maintaining integrated opening and closing decelerations that ensure smooth, quiet and safe movement. It is the ideal solution for those looking for a reliable and compatible spare part, with improved performance even in the most complex contexts.

Key features:

• Direct compatibility with APRIMATIC AT176

• Same sprocket and dimensions as the original

• Integrated opening and closing deceleration

• Extended opening angle up to 200°

• Immediate installation without modifications

• Robust construction suitable for intensive use

• Reliability and long service life

Specifications:

• Power supply: 230 V

• Opening angle: 200°

• Thrust force up to 250 Nm

• Supported leaf weight: up to 500 Kg

• Max leaf length: 2.5 m

• 90° opening time: 16 seconds

• Degree of protection: IP67

• Operating temperature: -20°C ÷ +55°C

• Manual release with emergency key

• Supplied with leveling screws and hydraulic oil can (without canister and spline attachment)
