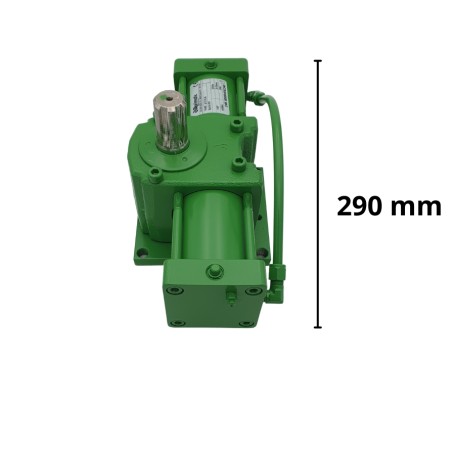

Hydraulic Underground Jack Motor Actuator APRIMATIC AT175N 41050/003

APRIMATIC 41050/003

EAN: 8032434034070

Underground hydraulic jack with APRIMATIC block AT175N for hinged doors with a maximum weight of 800Kg

and lengths of 4 m. Universal ambidextrous version with installation on both sides, usable with one or two doors.

The actuator is designed to work at an opening angle of 110 degrees with adjustable opening and closing slowdowns.

The sensitivity is managed by two flow valves, opening and closing, which regulate the torque in motion, adapting it to the installation.

The release system is simple and intuitive to be able to move the door even in the absence of power.

Oil already included in the product

The Jack is the mechanical part that supports the gate in movement, the installation necessarily includes the Control Unit (pump) APRIMATIC ZT70 B5, the CIA 170 self-supporting box and pipes with TF and RAC fittings.

Specifications:

• Max working angle 110 degrees
• Door weight max 800 kg
• IP67 degree of protection
• Torque 410 Nm
• Oil quantity 1 Lt
• Weight with oil 12kg
• Composition:
• 1 Jack AT 175
• 4 Installation Screws
• 1 Unlock key
• 1 Instruction Manual
