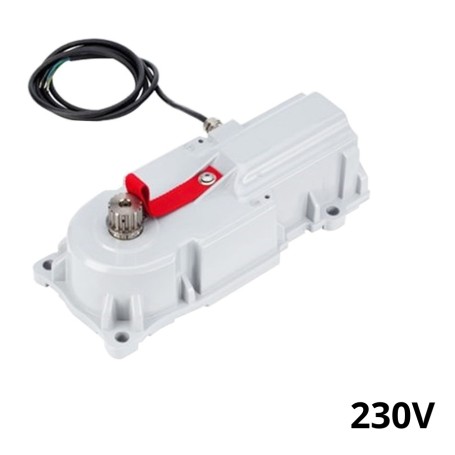

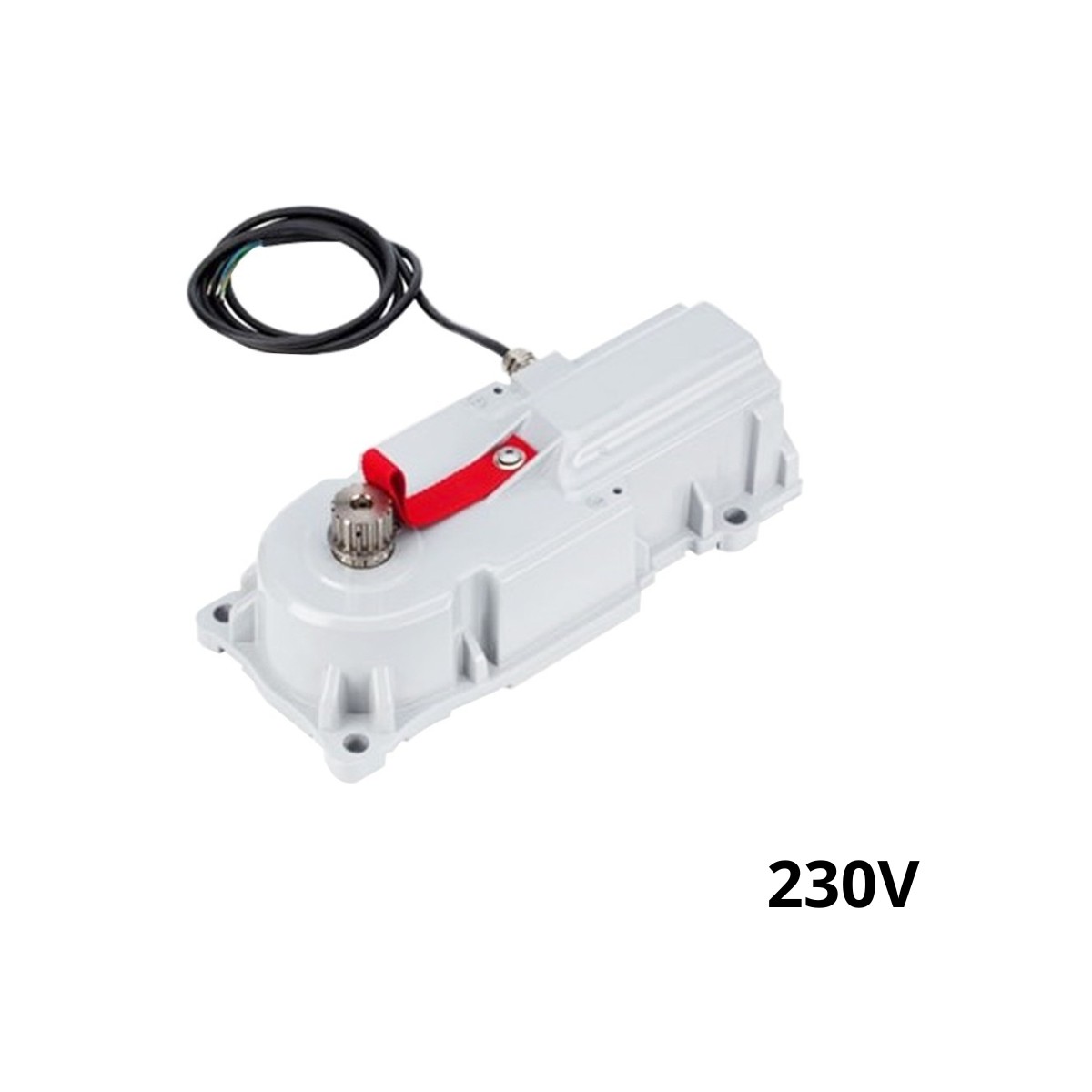

FAAC 10675201 770N – 230V Electromechanical Underground Actuator for Swing Gates up to 500 Kg

The FAAC 10675201 770N model underground actuator is a professional solution for the automation of swing gates, designed to ensure maximum reliability, robustness and durability even in harsh environmental conditions.

It is an irreversible 230V electromechanical motor, ideal for residential and condominium installations, capable of handling leaves weighing up to 500 kg and lengths up to 3.5 meters (with the use of an electric lock). The underground configuration allows for minimal aesthetic impact, making it particularly suitable for architectural contexts where discretion is required.

The internal mechanics are entirely made of metal and bronze, without the use of plastic components, ensuring superior resistance to wear and constant performance over time. The double-layer polyester painting also ensures high protection against corrosion and atmospheric agents, making the product also suitable for installations in saline environments.

The system provides a manual release with lever and personalized European key (not included), useful in the event of a power failure.

Important note on compatibility:
This operator is completely replaceable with the ROLLER model by GENIUS, a brand belonging to the FAAC group. The two products share structure, dimensions and technical characteristics, making them perfectly interchangeable. The GENIUS ROLLER model is often a cheaper alternative while maintaining the same construction standard.

Control unit compatibility:

• FAAC 452 MPS
• FAAC 462 DF
• FAAC 455 D
• FAAC E045 / E045S
• FAAC E145 / E145S

Package Contents:

• 1 FAAC 770N 230V Actuator
• 1 Capacitor 12.5 μF
• Sprocket attachment bracket
• Connecting rod bracket
• Accessory kit (nuts and bolts)

Technical features:

• Power supply: 220–240V ~ 50/60 Hz
• Motor: single-phase asynchronous
• Maximum power: 380 W
• Maximum torque: 330 Nm
• Angular velocity: 6°/s
• Maximum leaf weight: 500 Kg
• Maximum leaf length: 2 m (up to 3.5 m with electric lock)
• Opening angle: up to 110° (140° and 180° with accessories)
• Operating temperature: -20°C ÷ +55°C
• Temperature protection: 140°C
• Degree of protection: IP67
• Engine weight: 12 Kg (14 Kg with supporting case)
• Duty Cycle: S3 30%
• Motor dimensions: 362 x 153 x 127 mm
• Carrier case dimensions: 430 x 307.5 x 214 mm

Note:
The electronic control unit is not included and must be purchased separately.

Ideal solution for professional installers looking for reliable, powerful and durable underground automation, with high quality standards typical of the FAAC range.
