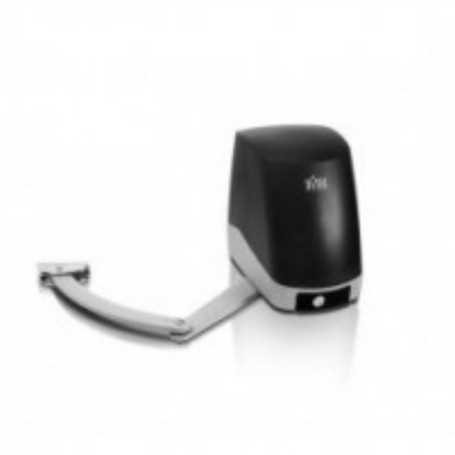

FACIL operator motor of the DITEC with 24V motor without on-board control unit

Irreversible electromechanical actuator, heavy-duty, 24 V motor, for leaf up to 2.3 m.

This operator is the version without on-board electronics. This operator can therefore be controlled by the LCU30H control panels or by the LCU40H control panels in single-leaf operation. In two-leaf operation, it is normally installed together with the operator FACIL3EH which incorporates the control unit.

The FACIL is an operator capable of handling doors with a maximum weight of 200 kg and can also withstand intensive use thanks to the 24V motor.

What are the technical characteristics of the FACIL of the DITEC?

• Service Class 3 - FREQUENT
• Intermittency S2 = 30 min S3 = 50%
• Motor power supply 24 Vdc
• Power consumption 6 A
• Torque 200 Nm
• Maximum opening 110°
• Release for manual key opening
• Operating temperature -20°C / +55°C (-35°C / +55°C with NIO on)
• IP54 degree of protection
• Product dimensions: 374x130x150mm
