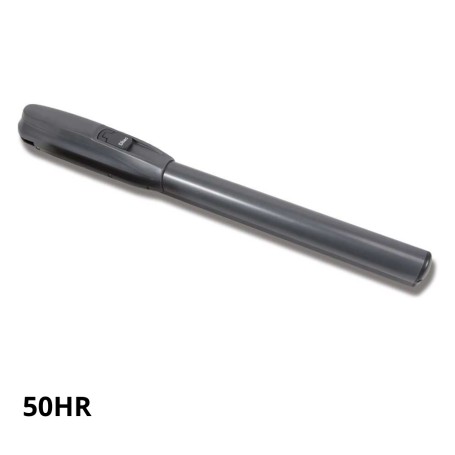

24 V reversible electromechanical actuator for swing gates up to 5 m, super intensive PWR50HR

The DITEC-ENTREMATIC PWR50HR (code NAPWR50HR) is a latest-generation reversible electromechanical actuator, designed to ensure high performance in super-intensive work contexts, such as residential complexes, apartment buildings, industrial areas and high-traffic parking lots.

This model, powered by 24 Vdc, is complete with:

• Robust fixing brackets

• Integrated PWRFM mechanical stop stops for precise stroke management

• Dust-proof brushes to protect the movement screw, for greater durability

Thanks to its reversibility, the PWR50HR offers safety and reliability in the event of an emergency or power failure, with manual key release.

Main features

• Sash length: up to 5 m

• Maximum capacity: 800 kg (1.75 m) – 280 kg (5 m)

• Thrust: 6,000 N to move heavy doors effortlessly

• Opening speed: adjustable 14÷80 s / 90°

• Maximum stroke: 500 mm

• Maximum aperture: 120°

• Service class: Super Intense, up to 600,000 cycles

• Protection: IP44 against dust and splash water

• Operating temperature: –20°C to +55°C (up to –35°C with NIO function on)

• Actuator weight: 10.5 kg

Electrical Specifications

• Motor power: 24 Vdc

• Nominal power consumption: 65 W

• Maximum power: 288 W

• Maximum current: 12 A

Strengths

• Intensive use: perfect for applications with numerous daily cycles

• Built-in mechanical stops: simplify installation without additional accessories

• Screw protection: dust-proof brushes that extend the life of the actuator

• Reversibility: for maximum safety in the event of a blackout

• Compatibility: LCU40H control panel for advanced function management
