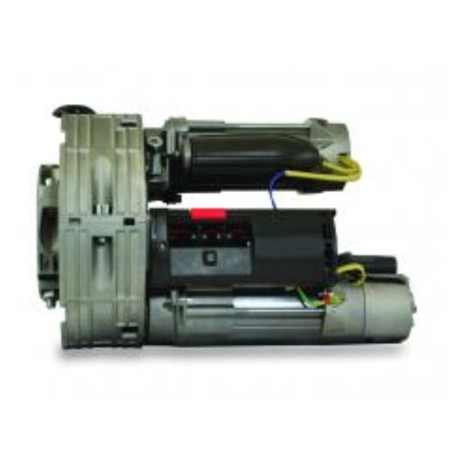

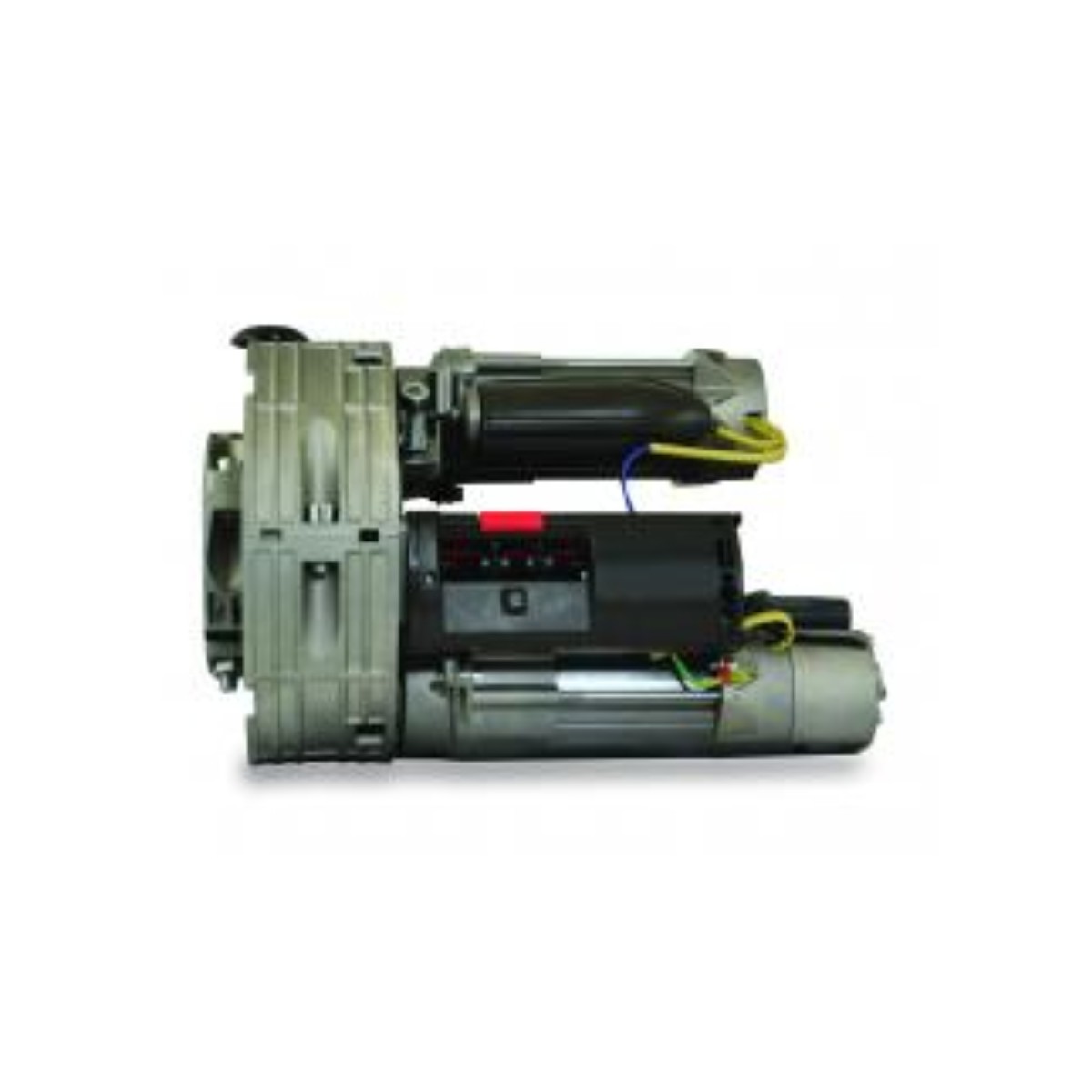

PSE22N – UNIVERSAL B-2M 230V motor for industrial dampers

The UNIVERSAL B-2M 230V motor, code PSE22N, is a professional solution designed for the automation of large roller shutters in commercial and industrial settings.
The irreversible twin-motor configuration guarantees high performance and maximum reliability even in heavy-duty applications, with a maximum torque of 443 Nm and a lifting capacity of up to 360 kg.

The motor is equipped with an integrated electric brake, essential for keeping the damper in place in total safety, and a manual release system, which allows the damper to be operated even in the event of a power failure.
The integrated limit switches allow precise adjustment of the opening and closing points, making installation and commissioning easier.

The UNIVERSAL B-2M is compatible with shafts from 76 to 101 mm and spring holders from 240 to 280 mm, making it extremely versatile and suitable for most professional installations. It is also designed for integration with automation and safety accessories, such as control units, photocells, flashers and wireless keypads.

Technical features

• Power supply: 230V AC

• Type: Irreversible twin-engine

• Maximum torque: 443 Nm

• Maximum capacity: 360 kg

• Electric brake: integrated

• Manual unlock: present

• Limit switches: integrated and adjustable

• Shaft compatibility: Ø 76 – 101 mm

• Spring carrier compatibility: 240 – 280 mm

• Applications: Commercial and industrial dampers

• Accessory arrangement: photocells, control panels, flashers, wireless keypads

Motor suitable for professional installers who need a robust, safe and high-performance solution for heavy duty and high duty cycle dampers.
