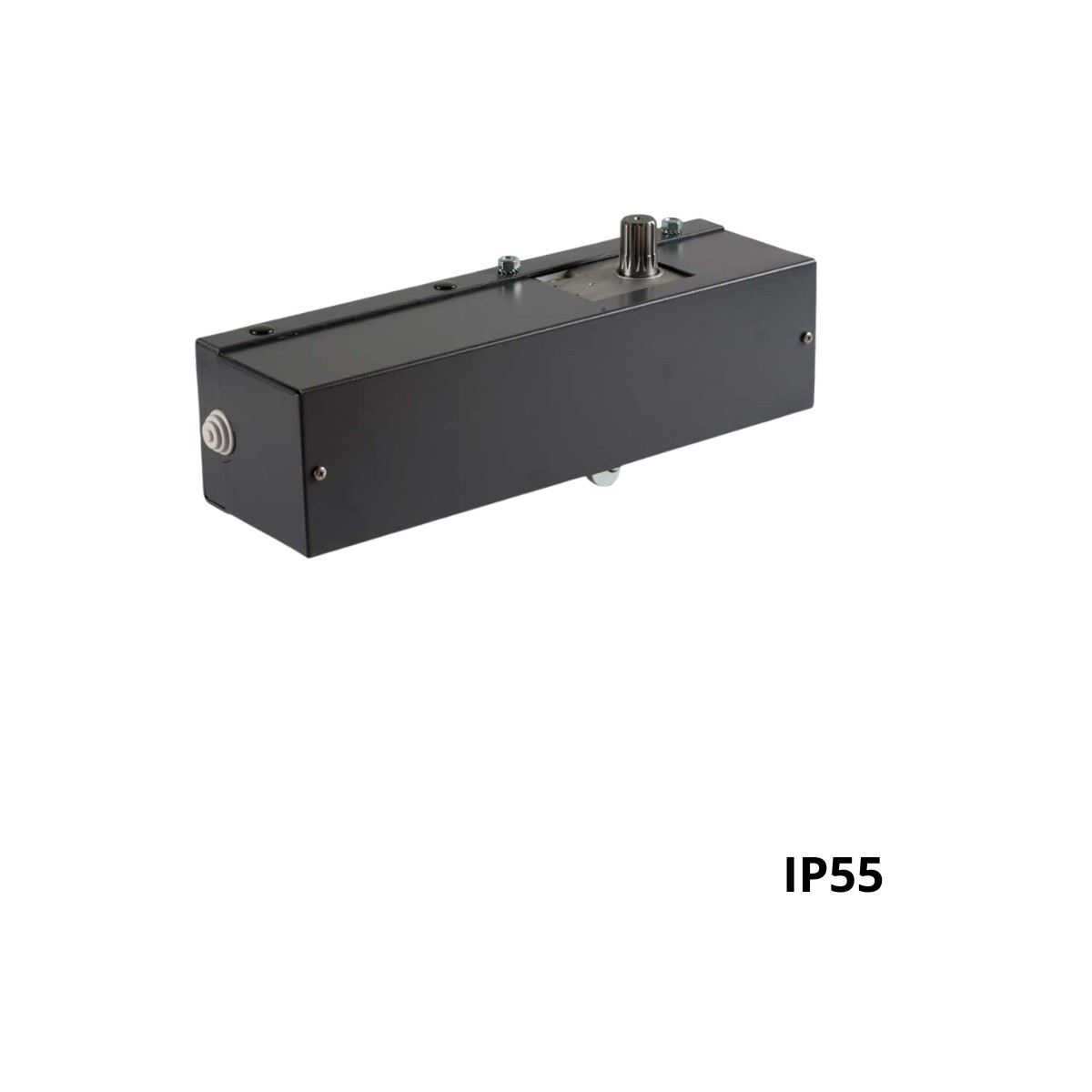

Engine Doors Book 24V 500KG Irreversible Intensive DITEC ENTREMATIC DOR1BHS

DITEC ENTREMATIC DOR1BHS NADOR1BHS

IRREVERSIBLE ELECTROMECHANICAL BOOM ACTUATOR, FOR INTENSIVE USE, MOTOR 24V

ALSO AVAILABLE IN IP55 VERSION.

SINGLE MODEL FOR RIGHT AND LEFT DOOR

IT IS ALREADY PROVIDED FOR AN EMERGENCY CORD RELEASE SYSTEM

IN CASE OF TEMPORARY BLACKOUT

THANKS TO THE POSSIBILITY OF CONNECTING THE BATTERIES TO THE PANEL

CONTINUITY OF SERVICE IS GUARANTEED

ALLOWING THE PLANT TO PERFORM NUMEROUS MANEUVERS

WAITING FOR THE RESPRITINO OF THE NETWORK

Electromechanical actuator for folding doors

Maximum capacity 500 kg (1.5 m + 1.5 m)

Service class 4 - intense

Intermittency S2 = 30 min S3 = 50%

Power supply 24 Vdc

Absorption 12 A

Torque / Thrust 300 Nm

Drive shaft revolutions 2.5 RPM

Release for manual rope opening

Operating temperature -20°C / +55°C (-35°C / +55°C with NIO activated)

Degree of protection IP 55

Product dimensions (mm) 400x120x107

Control panel LCU40H

Warranty 24 Months
