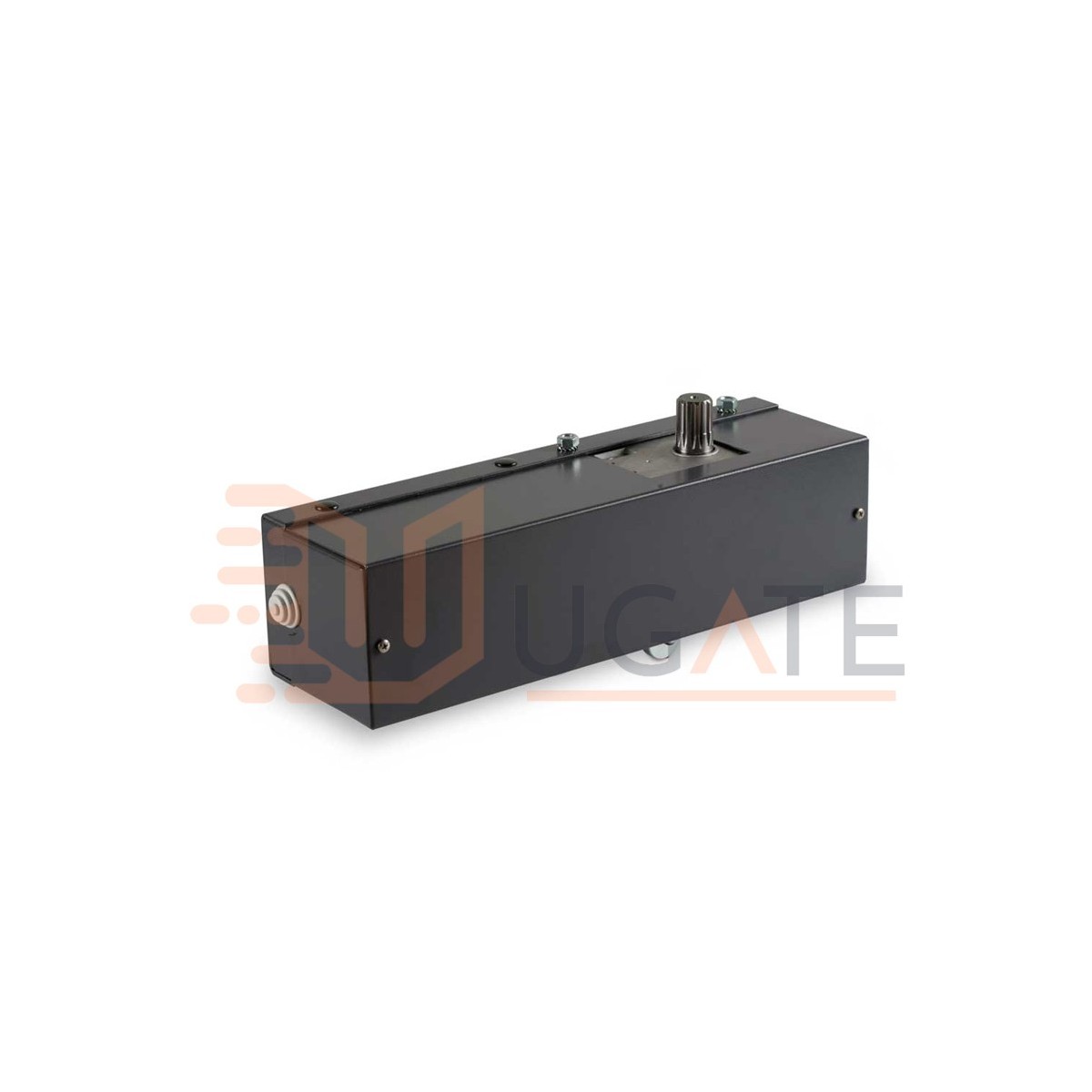

Book Doors Motor 24V 500KG Irreversible Intensive DITEC ENTREMATIC DOR1BH

DITEC ENTREMATIC DOR1BH NADOR1BH

Ditec Dor is an external automation, arm, for folding doors with articulated doors. Positioned above the doors opens and closes gently.

MOTOR FOR FOLDING DOORS VERSTATILE 500KG FOR INTENSIVE USE, MOTOR 24V.

IT IS AN IRREVERSIBLE ELECTROMECHANICAL BOOM GEARMOTOR

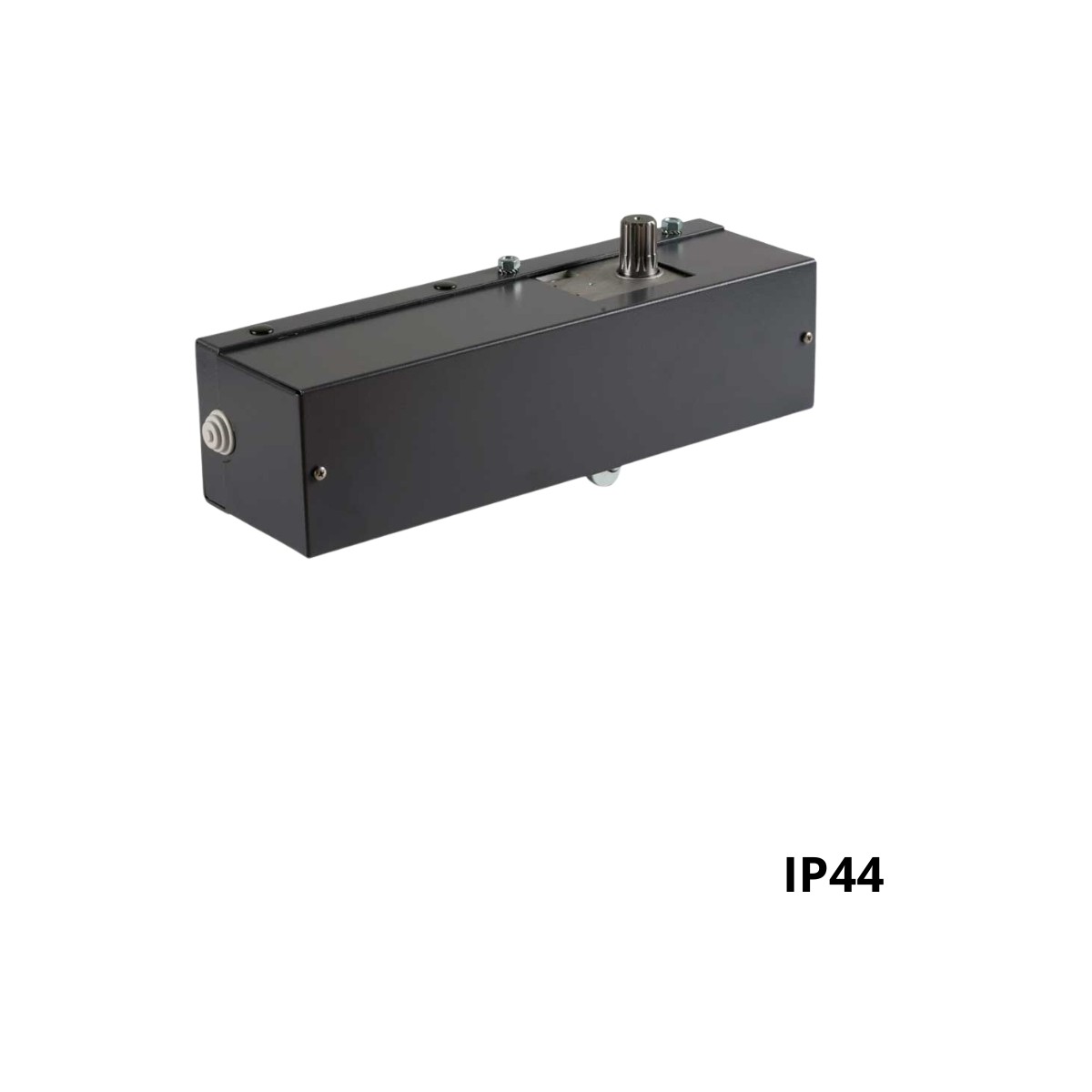

ALSO AVAILABLE IN IP55 VERSION.

SINGLE MODEL FOR RIGHT AND LEFT DOOR

IT IS ALREADY PROVIDED FOR AN EMERGENCY CORD RELEASE SYSTEM

IN CASE OF TEMPORARY BLACKOUT

THANKS TO THE POSSIBILITY OF CONNECTING THE BATTERIES TO THE PANEL

CONTINUITY OF SERVICE IS GUARANTEED ALLOWING THE PLANT

TO CARRY OUT NUMEROUS MANEUVERS, WAITING FOR THE RESPRITINO OF THE NETWORK

Internal knob release system.

Automatic limit switches on obstacle.

Tested and reliable mechanics and engine.

Electromechanical actuator: for folding doors

Maximum Capacity: 500 kg (1.5 m + 1.5 m)

Class of service: 4 - intense

Intermittence: S2 = 30 min, S3 = 50%

Power supply: 24 V=

Absorption: 12 A

Torque/Thrust: 300 Nm

Drive shaft revolutions: 2.5 RPM

Release for manual opening: rope

Operating temperature: -20°C / +55°C (-35°C / +55°C with NIO activated)

Protection degree: IP 44

Product size (mm): 400x120x107

Control panel: VIVA H / LCU40H

Warranty 24 Months
