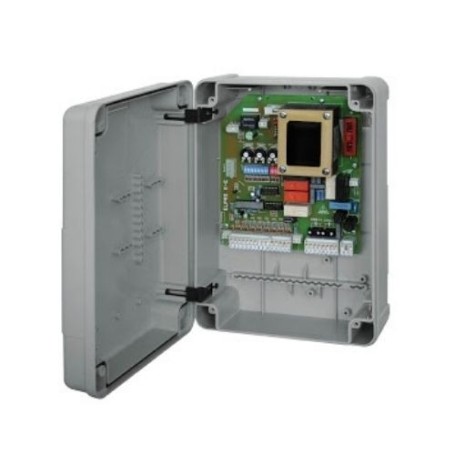

ELPRO XE ECU for Motors with and without Limit Switch – 230V – IP64 - 7271L

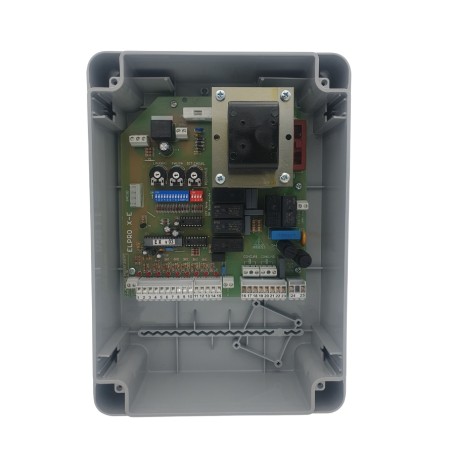

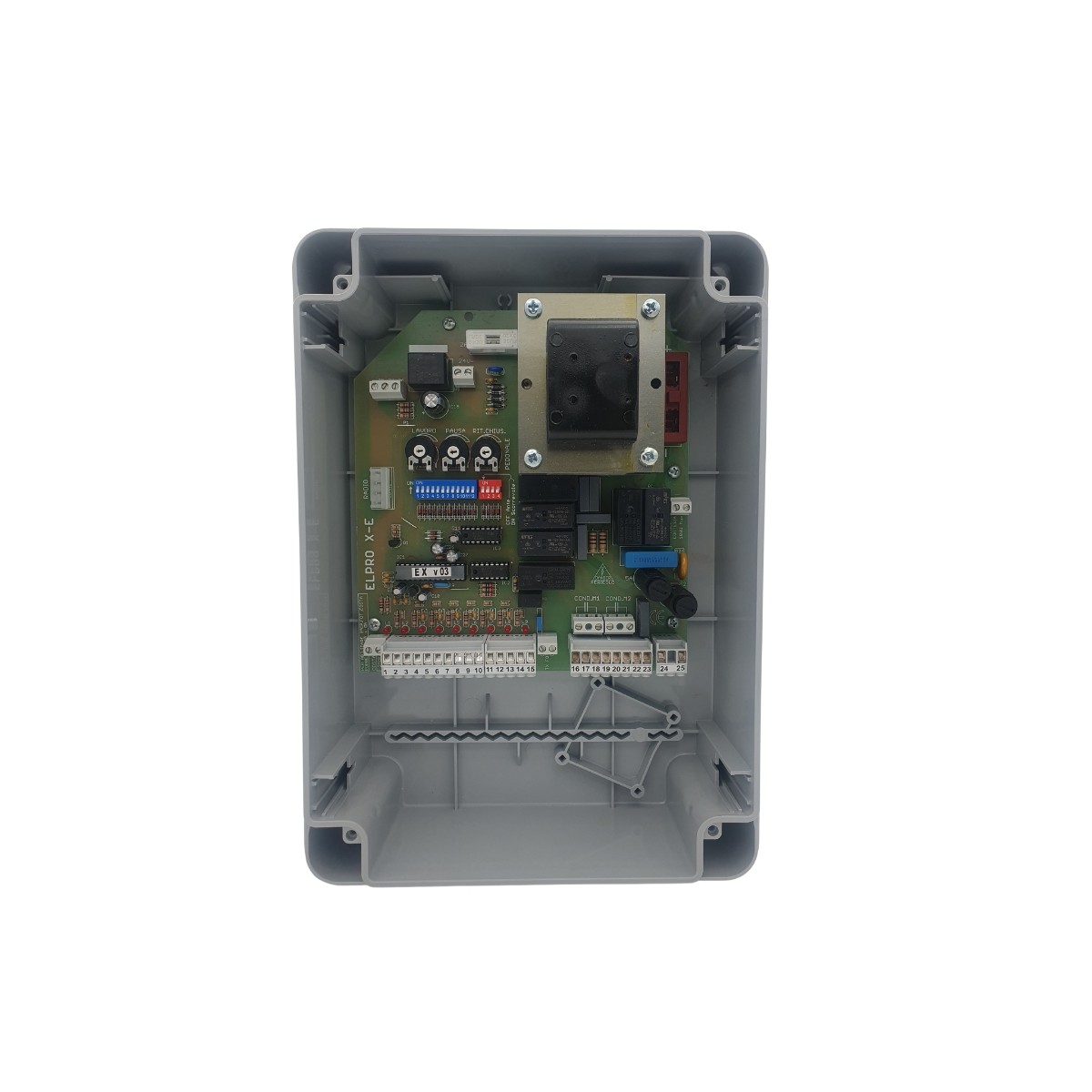

The ELPRO XE CONTROL UNIT (SKU: 7271L) is a 230V single-phase electronic programmer for gate and gate automation, designed to manage motors with or without mechanical limit switches. It stands out for its high versatility in operating logics and for simple adjustments via trimmer and dip-switch, ideal for professional installations.

Compatibility:
It supports electromechanical motors with and without mechanical limit switches, making it suitable for different residential and industrial automation configurations.

Configurable operating logics:

• Automatic

• Semiautomatic

• Automatic step-by-step

• Man present

• Pedestrian opening

• Water hammer

• Pre-flashing

Main functions:

• Force adjustment via trimmer (motor torque)

• Dedicated output for electric lock

• Automatic storage of opening/closing times

• Compatible with external clock for timed management

• Traffic light management for up to 3 lights

• Immediate diagnostics via green/red LEDs

• Output for courtesy light, flashing light, warning light and DSA

• IP64 rating, suitable for outdoor use

• Rugged housing: 210 × 295 × 110 mm

• Operating temperature: -20°C to +55°C

Specifications:

• Board power supply (single-phase): 230 Vac – 50 Hz

• Maximum motor power: 750 W

• Courtesy light output: 230 Vac – 100 W

• Output for photocells, selector and radio receiver: 24 Vac

• Signal light output: 24 Vac – 3 W

• Output for DSA control: 24 Vac – 150 mA

• Flashing output: 230 Vac – 25 W

• Adjustable working time: 0 – 120 s (for sliding motors)

• Adjustable pause time: 0 – 60 s (for swing motors)

This control unit is a complete and reliable solution for automation systems that require flexibility, advanced protection and ease of installation.
