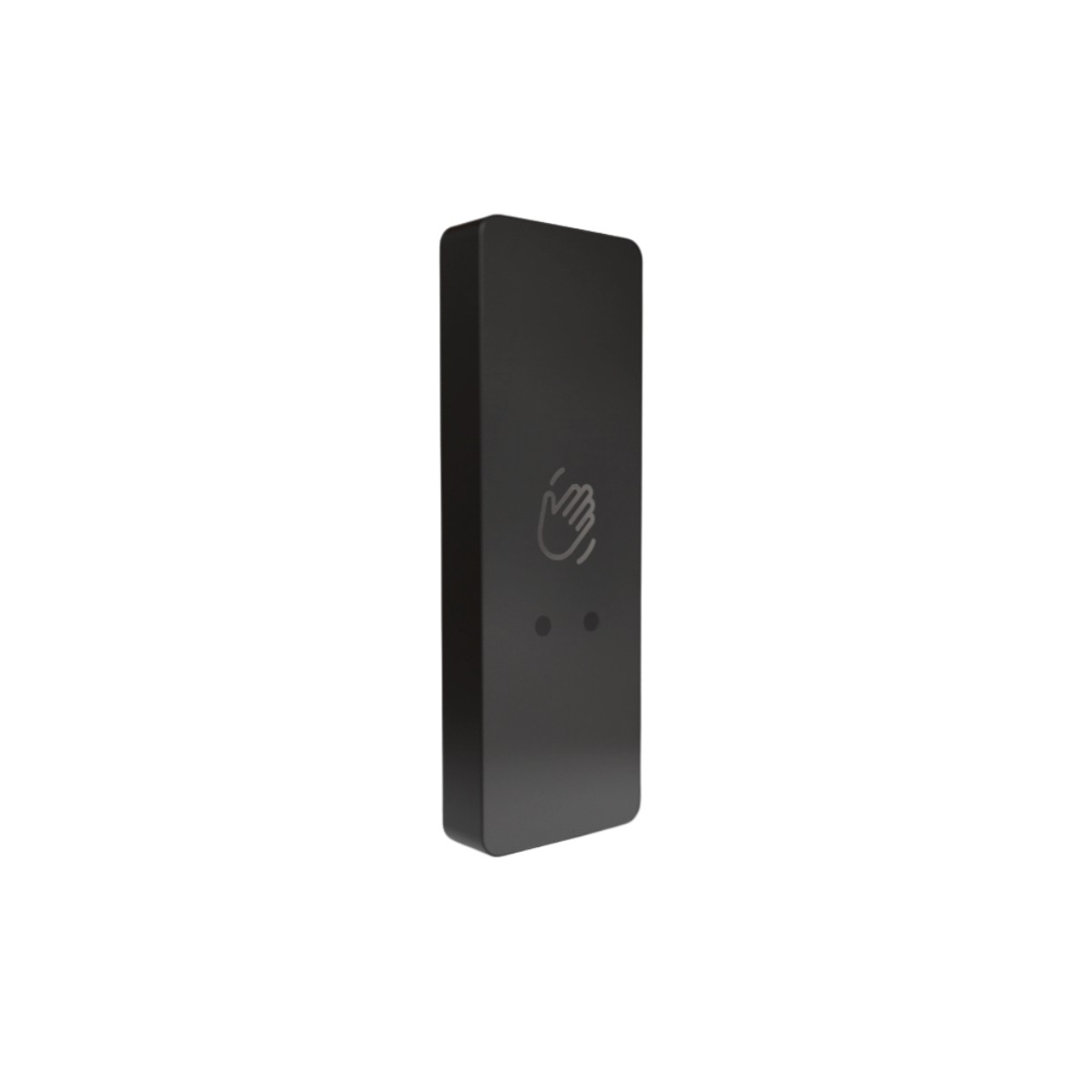

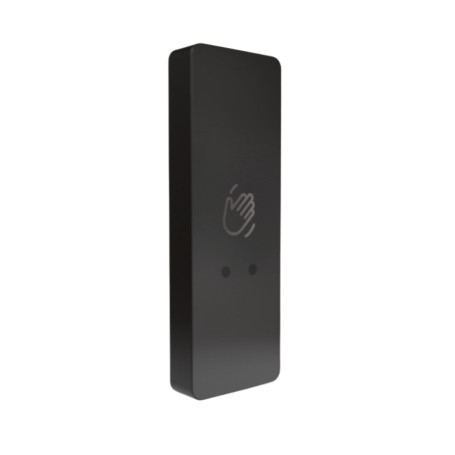

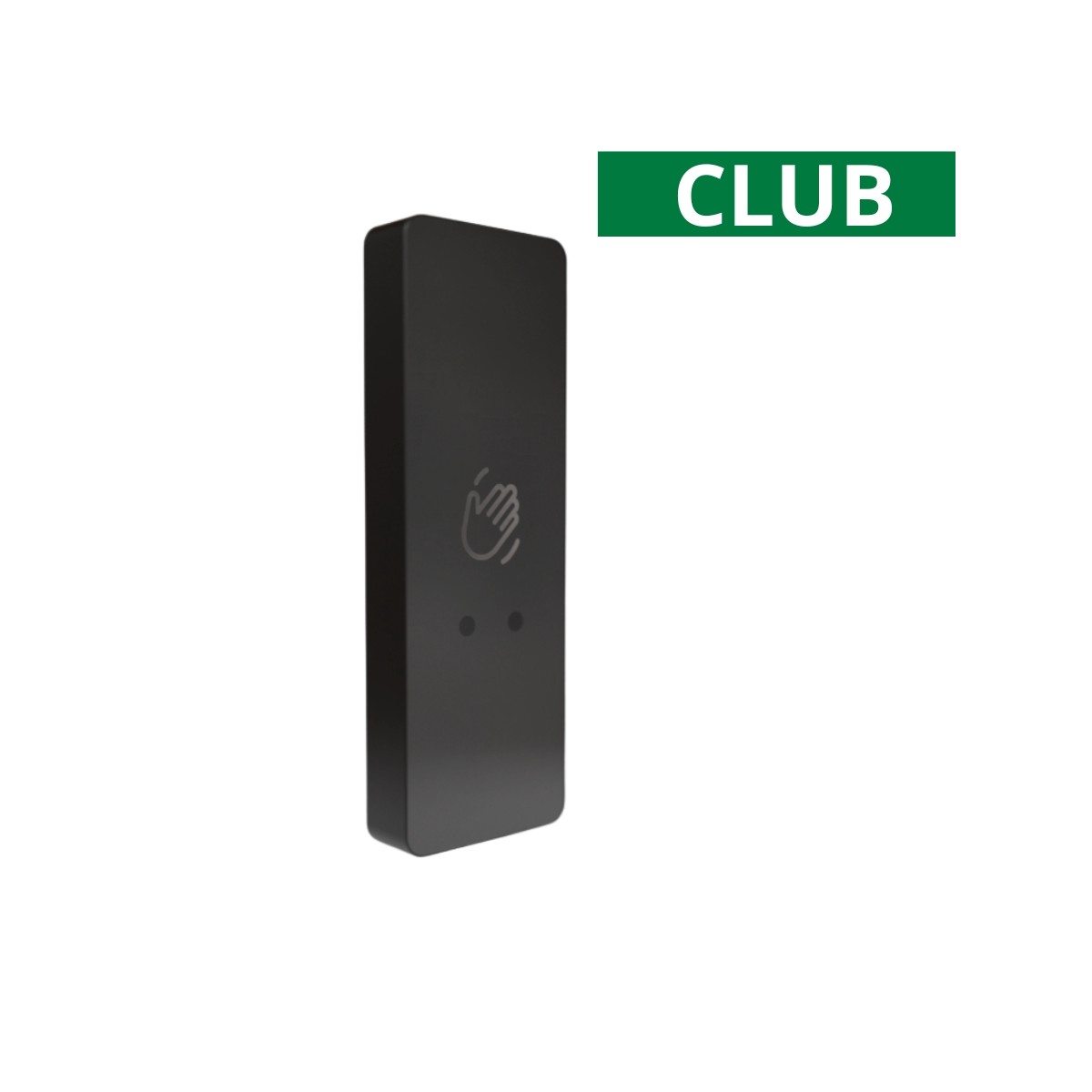

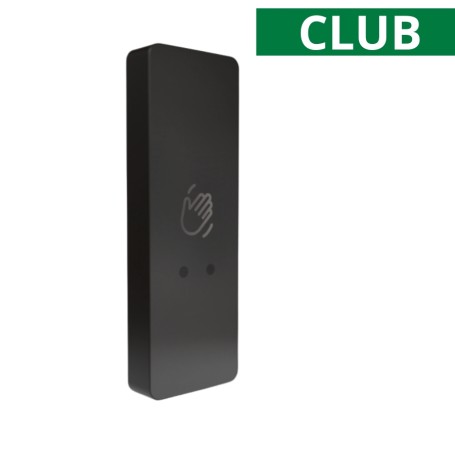

The PROX-GO YAW-001000225 is a contactless proximity push button designed for the opening control of automations for doors, gates and access control systems.

Thanks to the integrated sensor, the device detects the movement of the hand at an adjustable distance between 5 and 20 cm, allowing the activation of the control without the need for physical contact. This feature makes it particularly suitable for public, professional and high-traffic environments, where it is important to reduce direct contact with surfaces.

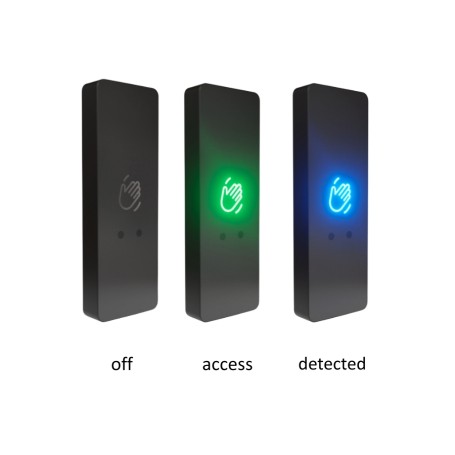

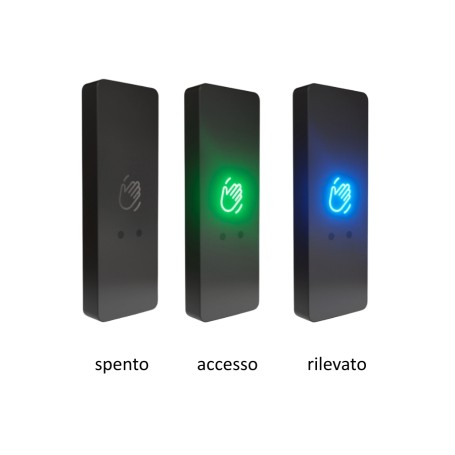

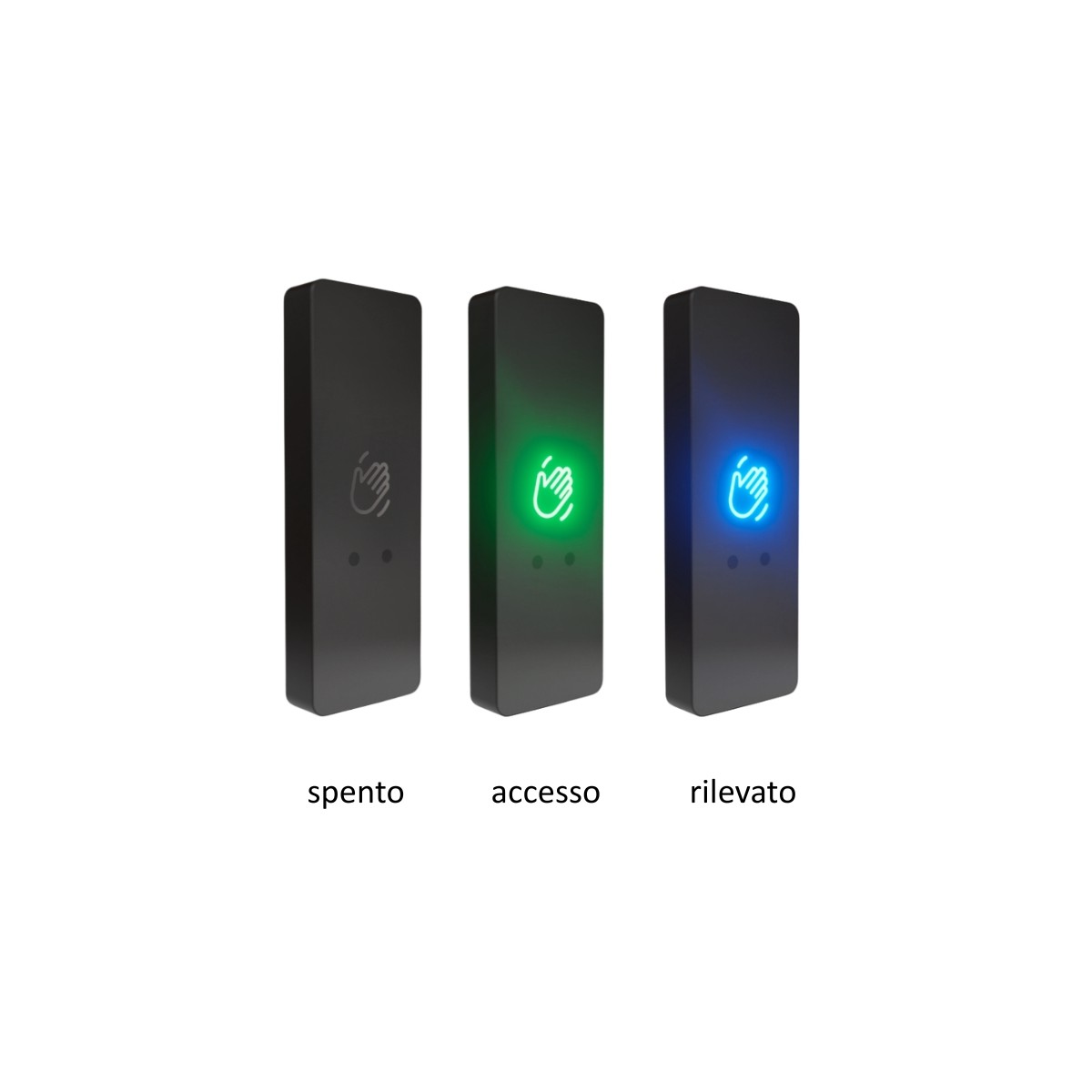

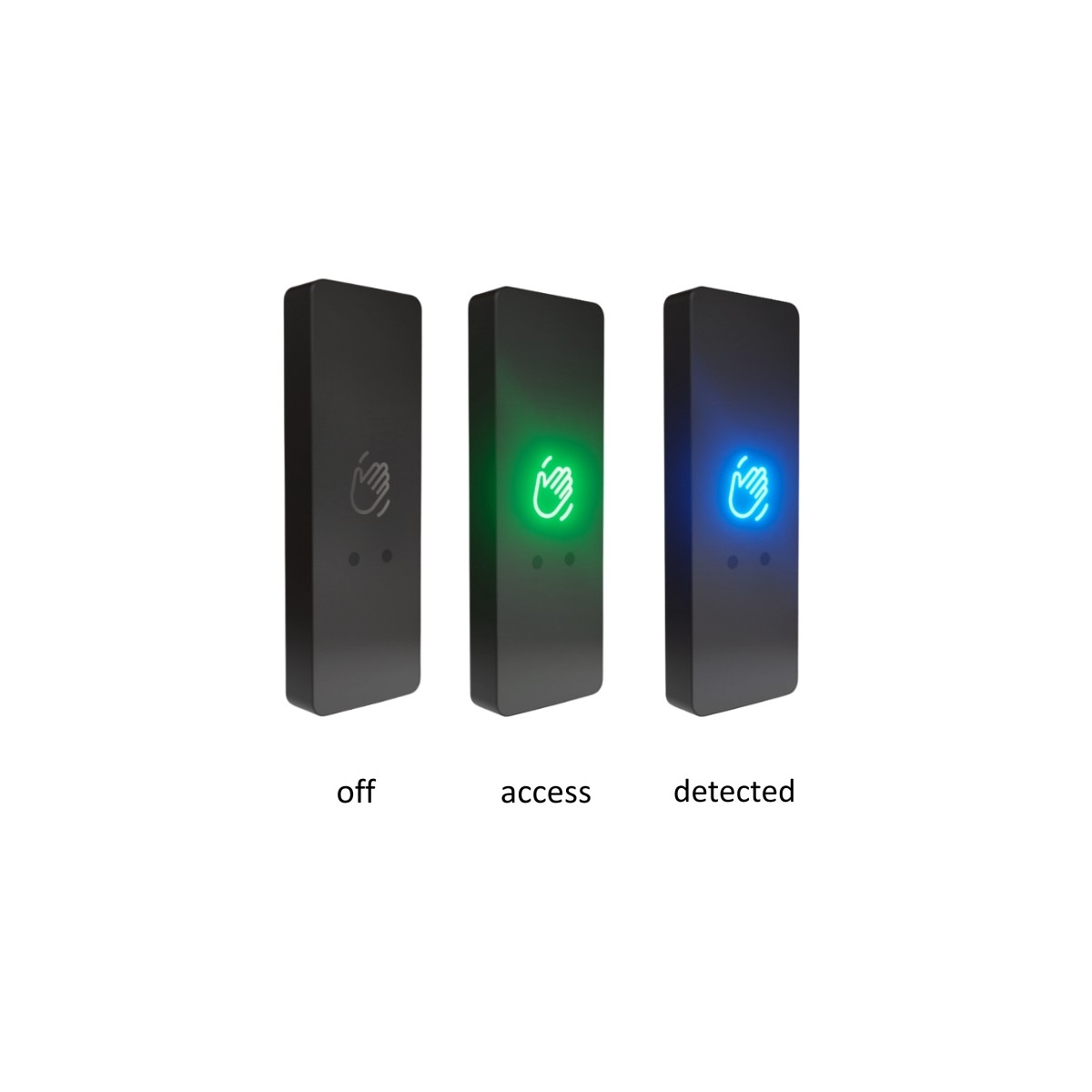

The compact and modern design, combined with the LED status lighting, allows an immediate understanding of the operation:

• Light Off: Device Idle
• Light On: Device Ready
• Active light: Detecting

The PROX-GO is easily surface-mounted and has NO/NC/COM contacts, making it compatible with most automation control panels on the market.

Key features:

• Contactless touch activation
• Adjustable proximity sensor
• Ideal for automatic doors and gates
• NO/NC/COM contacts for maximum compatibility
• Simple surface installation
• Built-in LED status indication
• Compact and elegant design

Technical data:

• Power supply: 12–24 V DC
• Maximum consumption: 100 mA
• Contact load capacity: 2A – 24V DC
• Contact Type: NO/NC/COM
• Installation Type: Surface
• Delay: 0–20 s adjustable via potentiometer
• Detection range: 5–20 cm adjustable
• Operating temperature: -20°C / +55°C
• Material: ABS
• Degree of protection: IP44
• Dimensions: 115 x 40 x 14.5 mm
• Weight: 40 g

Recommended Applications:

• Automatic pedestrian doors
• Automatic gates
• Access control systems
• Public environments (offices, studios, shops)
• Installations where hygiene and absence of contact are required

Operational advantages:
The absence of physical contact reduces wear and tear on the device and improves hygiene in shared environments. The possibility of adjusting both the detection distance and the activation time allows for a highly customizable installation according to the needs of the system.
