Electronic equipment for swing gates BRAIN 19 GENIUS 6100328

GENIUS 6100328

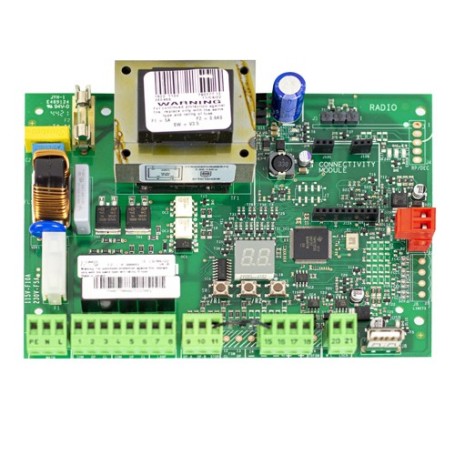

Original control unit FAAC GENIUS BRAIN 19 code 6100328. New model that replaces the BRAIN 17.

Electronic spare card for swing automations GENIUS G-BAT, SIROCCO, MISTRAL, ROLLER and TRIGON 02.

Adjustable via display, equipped with 3-pin connector for RQFZ quick plug receivers, USB port

for download / upload radio codes and firmware update and 12Vac output for the management of electro-lock.

Possibility of encoder management and adjustment of the thrust force via display on 50 levels for each motor.

Dimensions 165x120mm

SPECIFICATIONS:
Supply voltage (Vac): 230 (+6% -10%) 50Hz
Power consumption (W): 4.3 W in Stand By
motor load (W): 800
load (mA): 500
Operating Temp (C): -20 +55
Protective fuses: 2
Operating logic: Semi-automatic / Semi-automatic Step-by-step / Automatic Step-by-step safety / Automatic Step-by-step / Semi-automatic B / Man Present
Opening / Closing Time: Programmable via learning button
Break time: 0 to 9.5 min.
Closing leaf delay time: from 0 to 1.3 min.
Opening door delay time: 2 sec. (excludable via display)
Thrust force: Adjustable via display on 50 levels for each motor
Terminal block inputs: Open / Open release door / Stop / Limit switch / USB Opening and closing safety / Power + ground / BUS G-WAY
Terminal block outputs: Flasher / Motors / Accessory power supply 24Vdc / Failsafe / Power supply electro-lock 12Vac / Indicator lamp 24Vdc
Quick connector: 3 pins for RQFZ GENIUS receiver module / Built-in decoding
Selectable functions: Logic and pause time / Thrust force / Door delay in opening and closing / Reversing stroke / Failsafe / Closing safety logic / Pre-flashing / Use limit switch / PROcoder encoder use
Programming keys: Learning working times, with or without limit switches or encoders, with or without slowdowns and programming radio codes
USB input: Firmware Update / Upload and Download system configuration / Upload and Download radio codes

Warranty 24 Months
