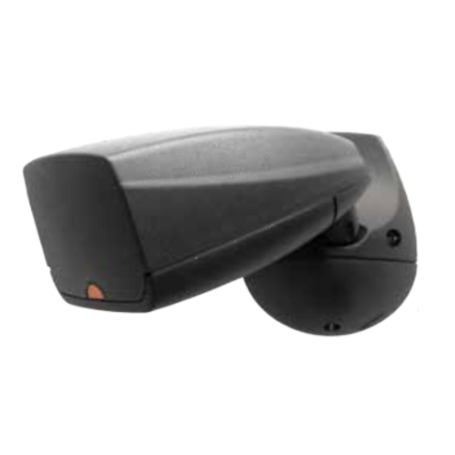

SI-M-6 Microwave radar for industrial doors. Replaces PRASTEL APRO20 and DM60

The microwave radar for industrial doors is the ideal solution for automating the opening of large doors and entrances, ensuring reliability and high performance even in harsh environments.

Thanks to microwave technology, this sensor accurately detects the movement of vehicles or people in the vicinity of the gate, activating the automation quickly and safely. The device is designed to be installed at a height of between 3.5 and 6 meters, ensuring maximum coverage and sensitivity even in high-traffic industrial areas.

Key features:

• Microwave technology for precise motion detection

• Installation from 3.5 to 6 meters in height

• Adjustable range to suit different coverage needs

• Excellent environmental resistance, ideal for indoor and outdoor industrial environments

• Easy to install and configure

Compatibility and replacements:

This radar is a perfect replacement for the following models:

• PRASTEL APRO20

• PRASTEL DM60

It is therefore the ideal choice for those who want to replace obsolete or no longer functional sensors, without modifying the existing system.

The main features are:

• Power supply: 12-24Vac / 12-30Vdc
• Power consumption: 50 mA max
• Operating Frequency: 9.90GHz
• Output power: <= 14dBm
• Relay Contact: 1A - 24Vac/dc
• Relay Control Time: 1-6 sec adjustable
• Mounting height: 3.5 to 6 m
• Detection speed: 0.1 m/s min
• Range: 1'10 m adjustable

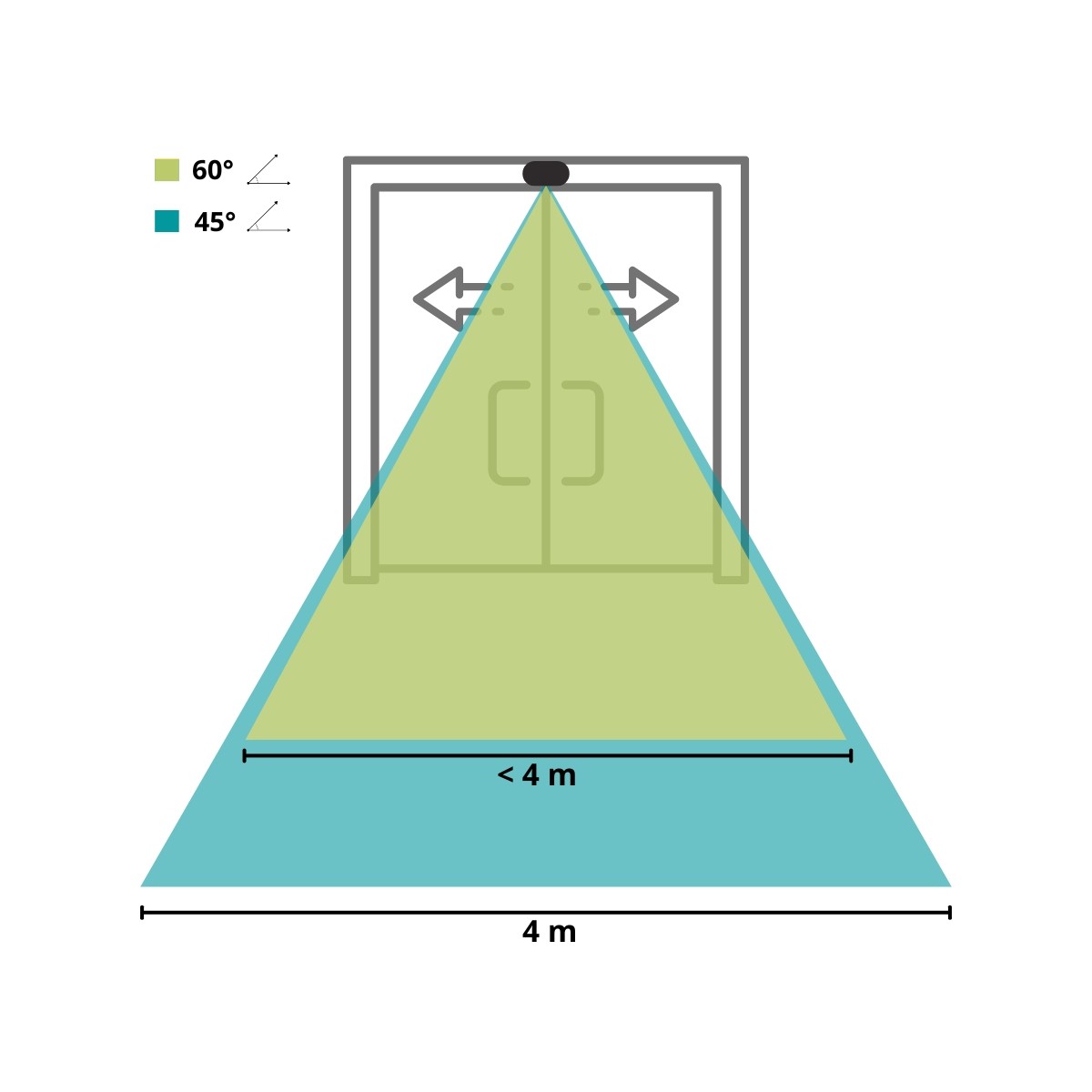

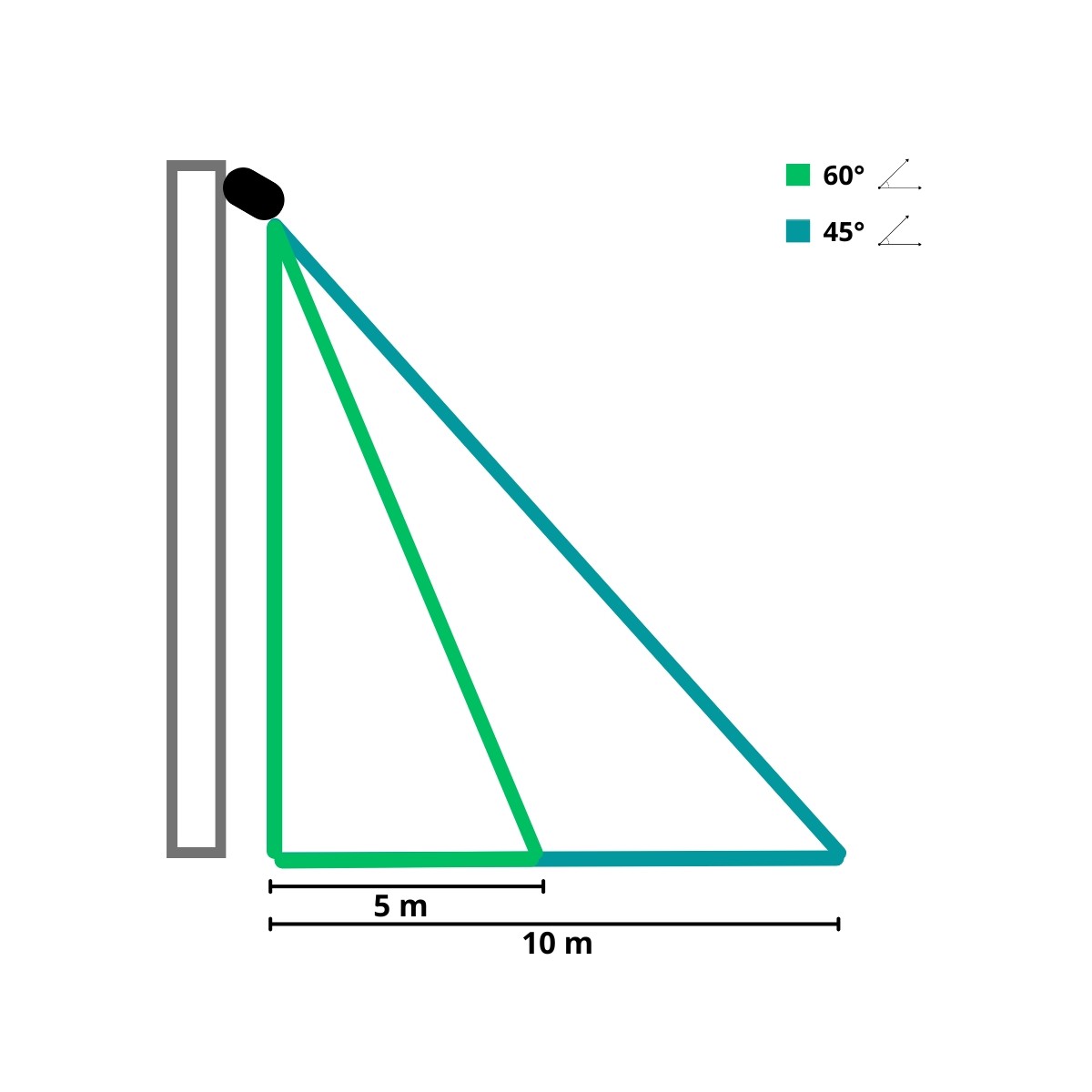

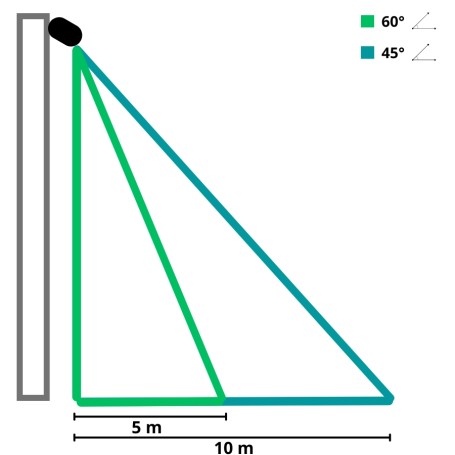

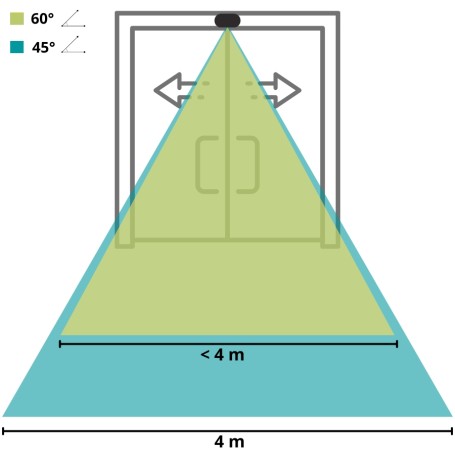

• Vertical adjustability: 0-60°
• Horizontal swivel: +/- 45°
• Maximum consumption: 40mA
• Transmitting Power (EIRP): <=20dBm
• Operating temperature: -20°C +50°C
• Dimensions: 160x95x110 mm
