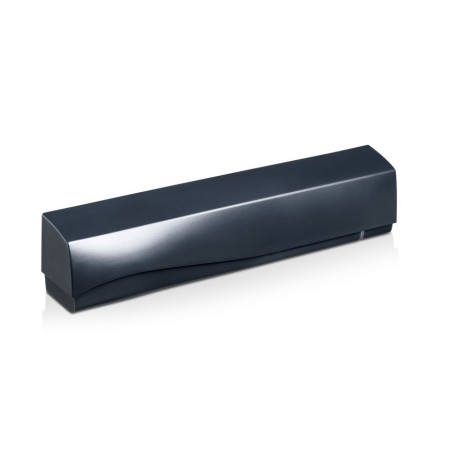

IXIO-DT Dual technology sensor aperture, safety and presence

The IXIO-DT sensor is extremely advanced and has very sophisticated technology. One of the best performing dual-technology sensors on the market, it is used in commercial and industrial contexts, when the setting of the detection areas must be very fine.

The detection of motion for the opening is entrusted to a radar sensor and is unidirectional. This means that it only detects people who are passing in the correct direction. This reduces the opening time of the door and thus also the possible heat loss.

Safety and presence detection is entrusted to 2 infrared curtains that are set through 4 light spots on the ground that effectively signal the limits of detection.

Finally, programming is done through a display.

SPECIFICATIONS:

Technology: Doppler Radar + Infrared

Detection: Motion + Safety

Output: Relay

Power supply: 12-24Vac +/-10% 12-30Vdc +/-10%

Installation: 2.0 - 3.5 m

Operating temperature: -25° +55° C

Certification: EN16005:2012; DIN 18650-1:2010
