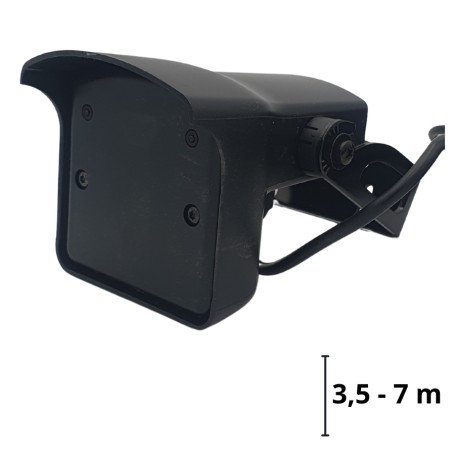

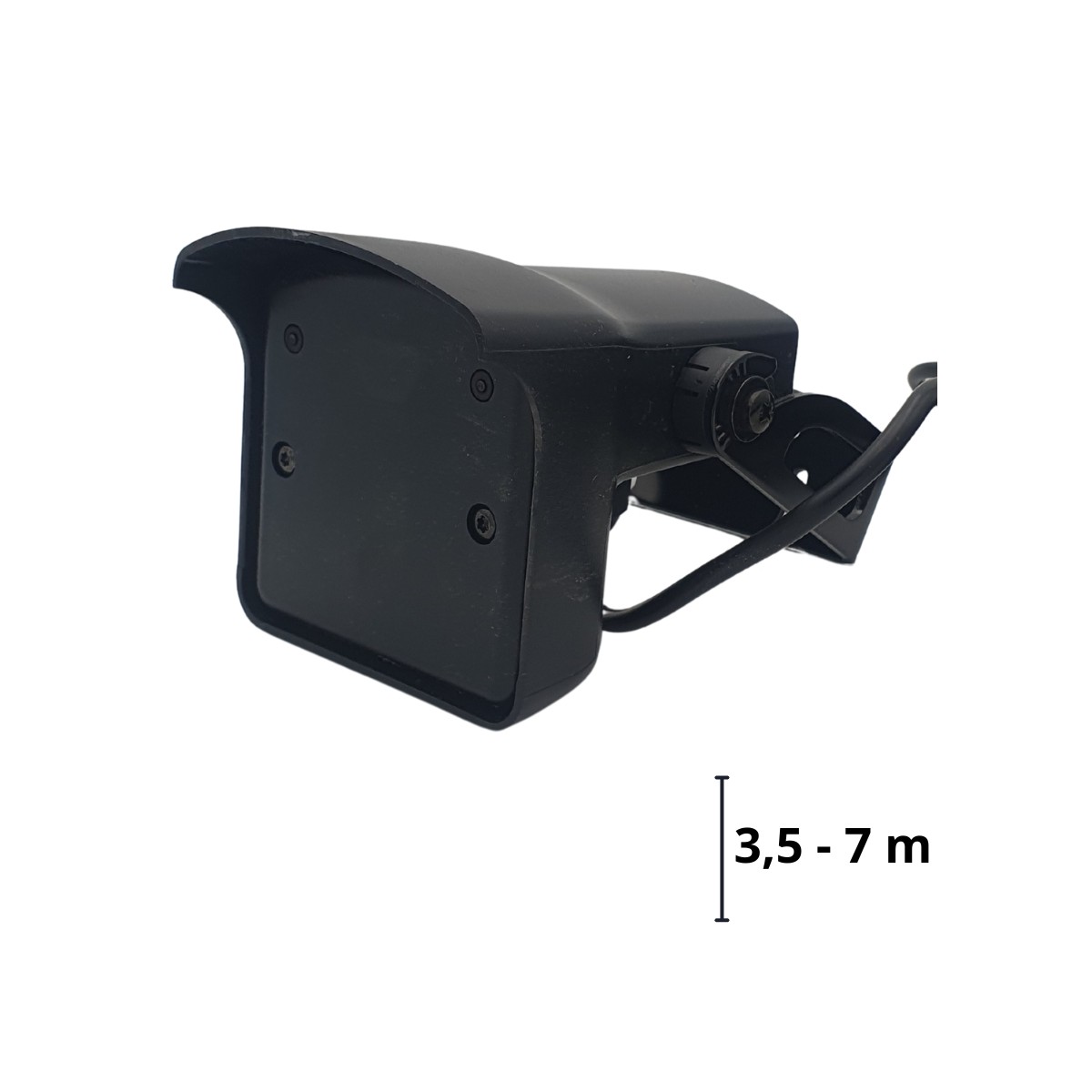

FALCON – One-way radar sensor for industrial doors

The FALCON is a professional opening sensor designed for industrial automatic doors where reliability, speed and advanced filtration are essential.
It uses microwave Doppler radar technology capable of detecting people, vehicles and slow movements as early as 5 cm/s. The vehicle identification feature eliminates parallel traffic and reduces unnecessary door opening, improving cycle times and energy consumption.

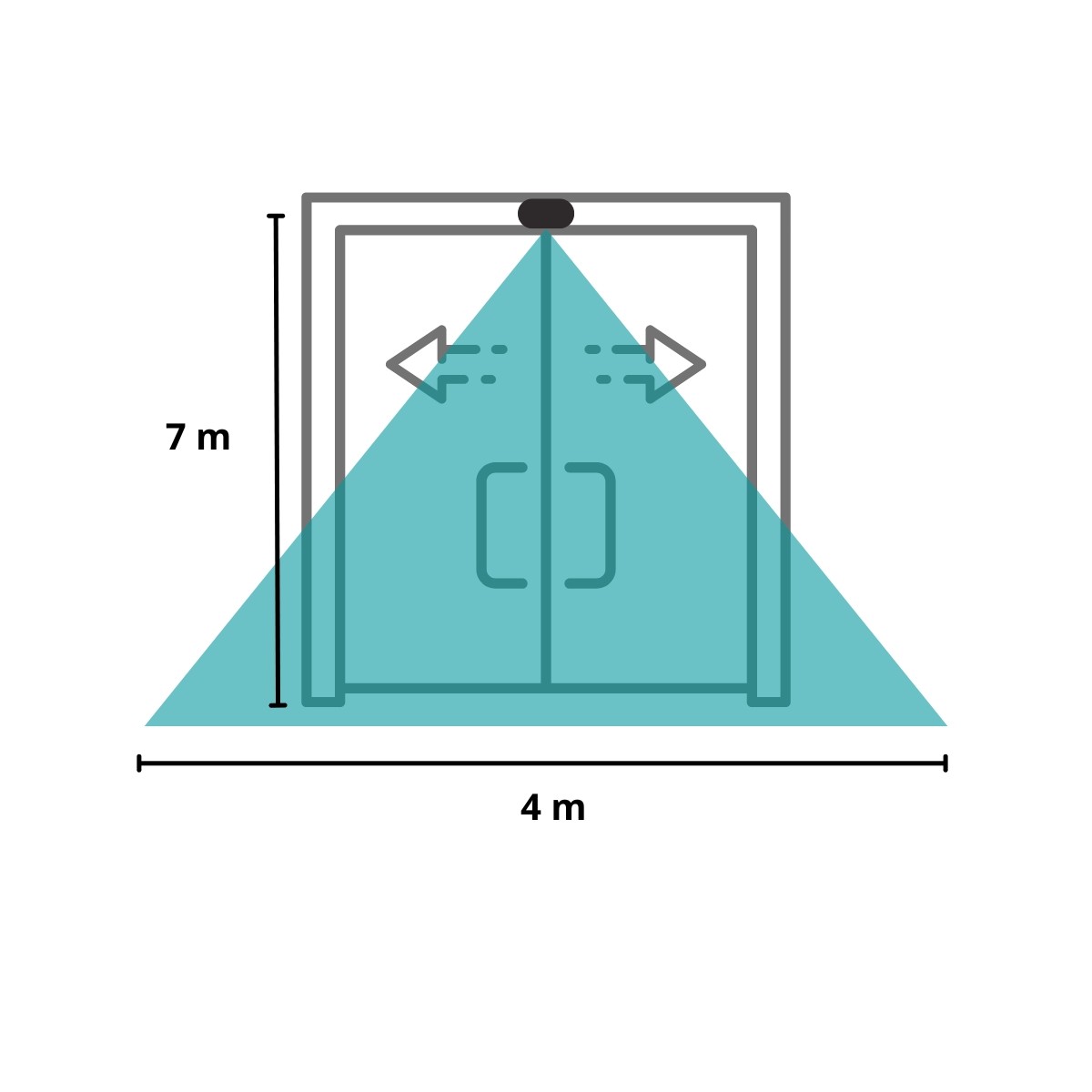

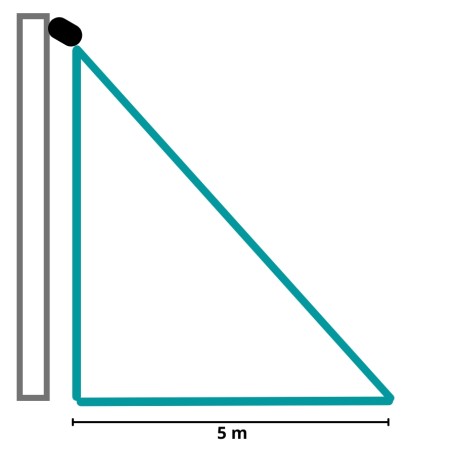

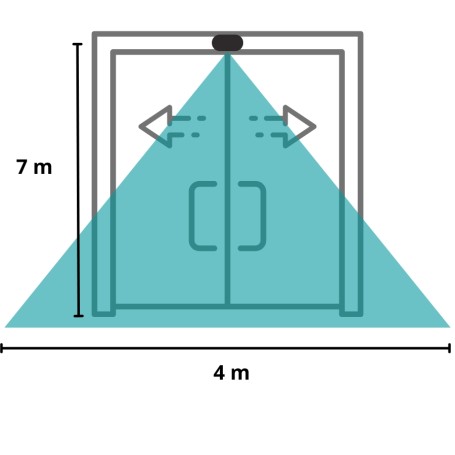

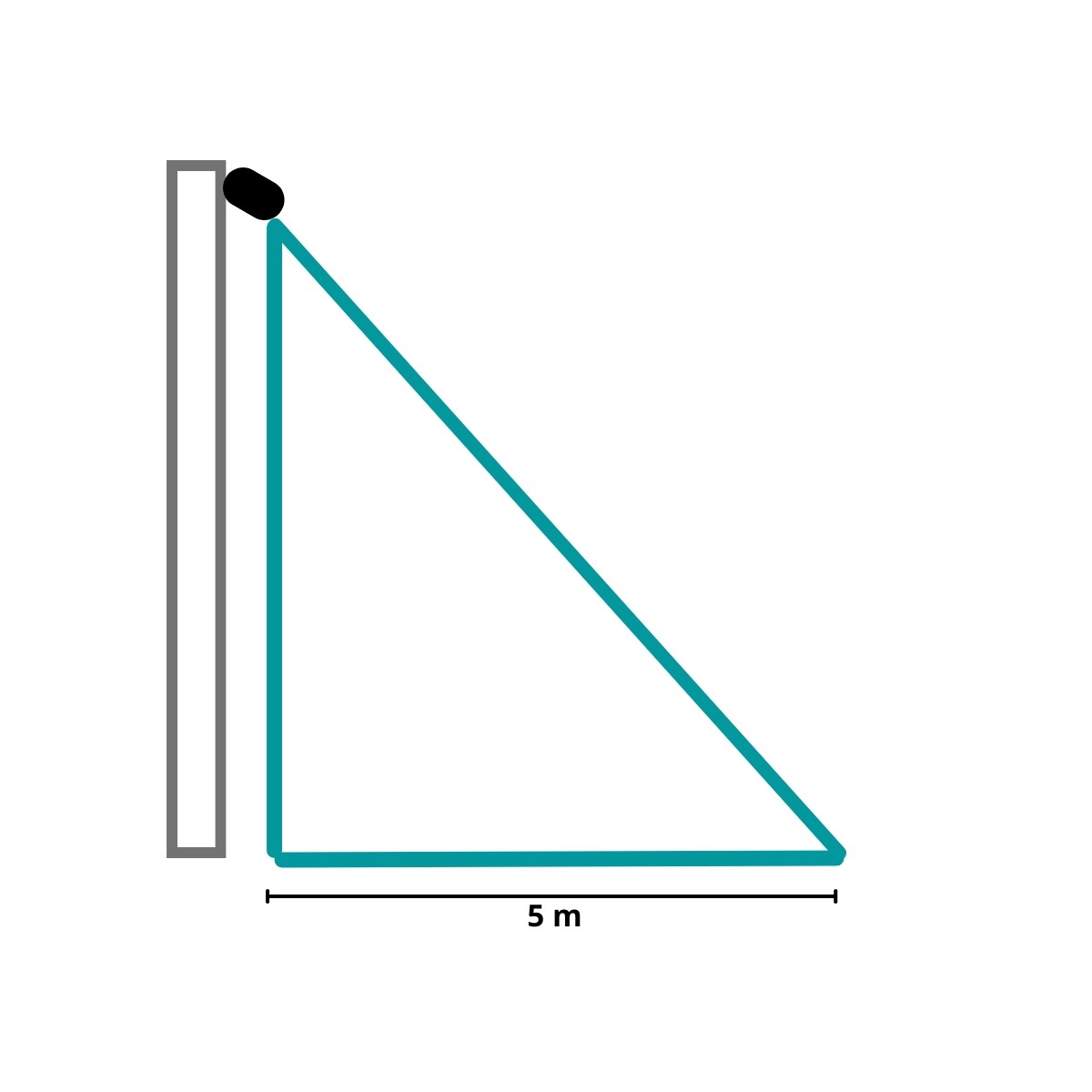

Mounted at a height of between 3.5 and 7 metres, it offers a typical detection area of 4 x 5 metres, making it perfect for loading bays, logistics accesses and industrial gates.

The compact ABS and polycarbonate construction, the IP65 degree of protection and the wide thermal range (-30°C / +60°C) guarantee high performance even in the harshest environments.

Technical features

• Technology: Microwave Doppler Radar

• Output Frequency: 24.150 GHz

• Output Power: < 20 dBm EIRP

• Emitted power density: < 5 mW/cm²

• Detection Mode: Motion

• Detection range (typical): 4 × 5 m

• Minimum detectable speed: 5 cm/s

• Installation height: 3.5 m to 7 m

• Power supply: 12–24V AC ±10% (50–60 Hz) / 12–24V DC +30% / -10%

• Power consumption: < 2W

• Relay Output (Dry Contact):

  • Max voltage: 30V AC / 42V DC

  • Max Current: 1A (Resistive)

  • Breaking Capacity: 30W

• LED Indicators:

  • Red → detection status and parameters

  • Green → operating values

• Degree of protection: IP65

• Operating temperature: -30°C / +60°C

• Tilt angle: 0°–180° vertical

• Sizes: 127 × 102 × 96 mm

• Material: ABS + Polycarbonate

• Weight: 400 g

• Cable: 10 m or 15 m

• Compliance: Complies with applicable European regulations
