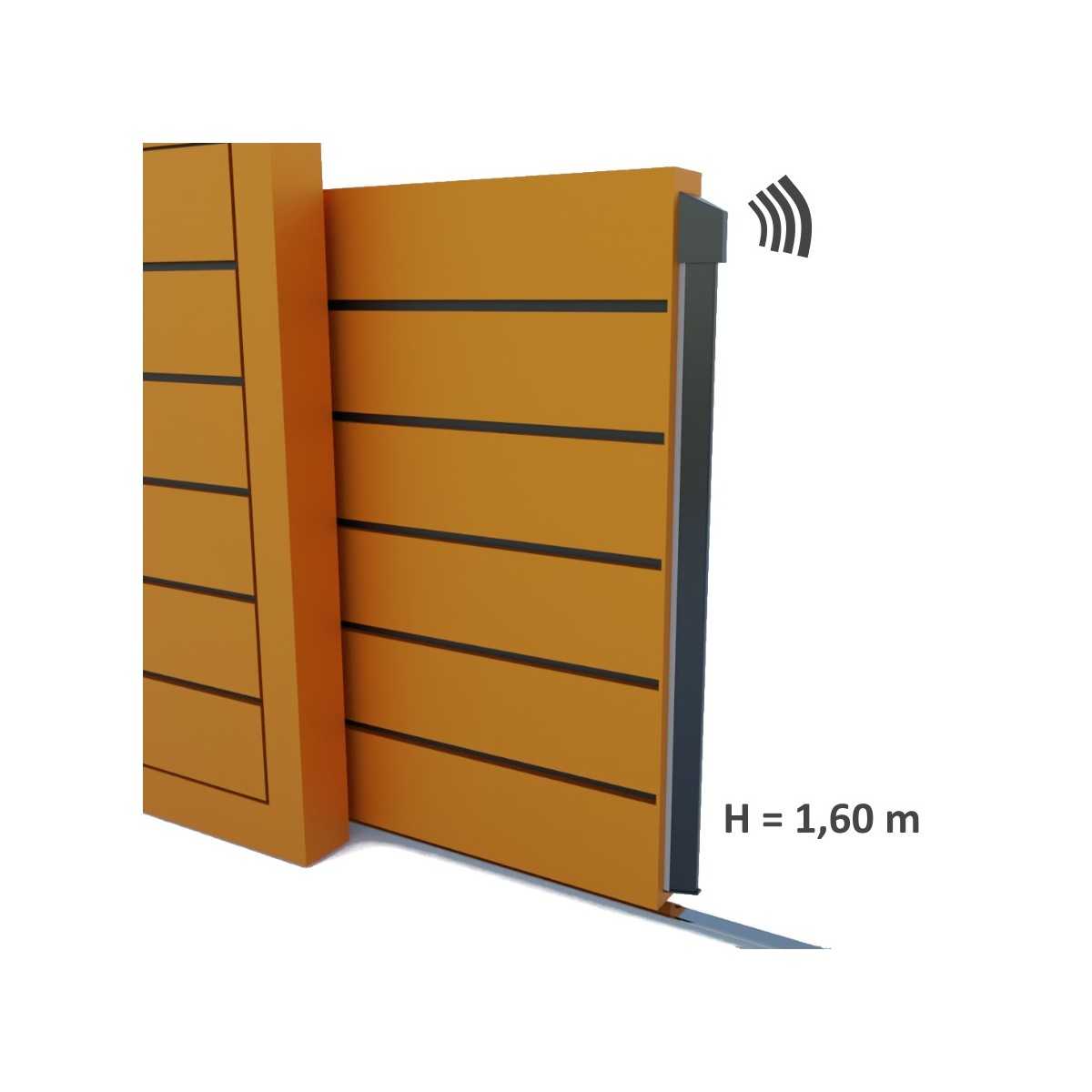

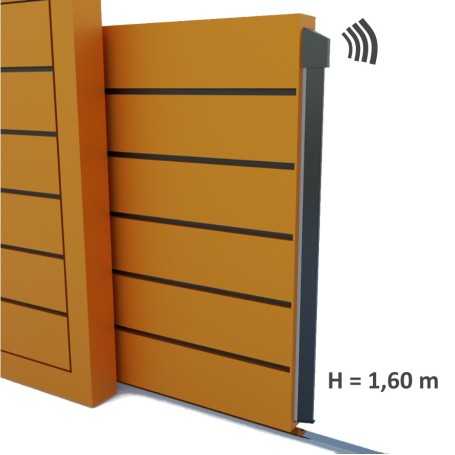

Radio wi-fi safety board with built-in transmitter length 1.60m

Conductive safety edge with built-in radio transmission system. Unlike normal safety edges, the advantages are as follows:

1. No connection cable to the control panel
2. High immunity to disturbances
3. Certified Radio Transmitter
4. Radio connection with 8k2 output for connection of automatic control boards

This type of wireless coast only works with a YAW-001000139 receiver. The receiver is not included in the scope of delivery.

Length 2.00 m

What are the technical characteristics of the radio safety edge?

• Operating Temperature: -20C, +55C
• Degree of protection: IP65
• Range: 40 mt
• Frequency: 868 MHz
• Built-in bi-directional 868 Mhz transmitter
• Power supply: two 3.6V lithium batteries - code BATT3.6V (included)
• Battery life: approx. 2 years (the duration is approximate and depends on many factors)
