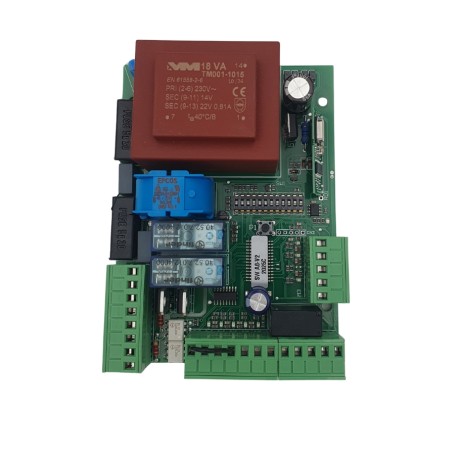

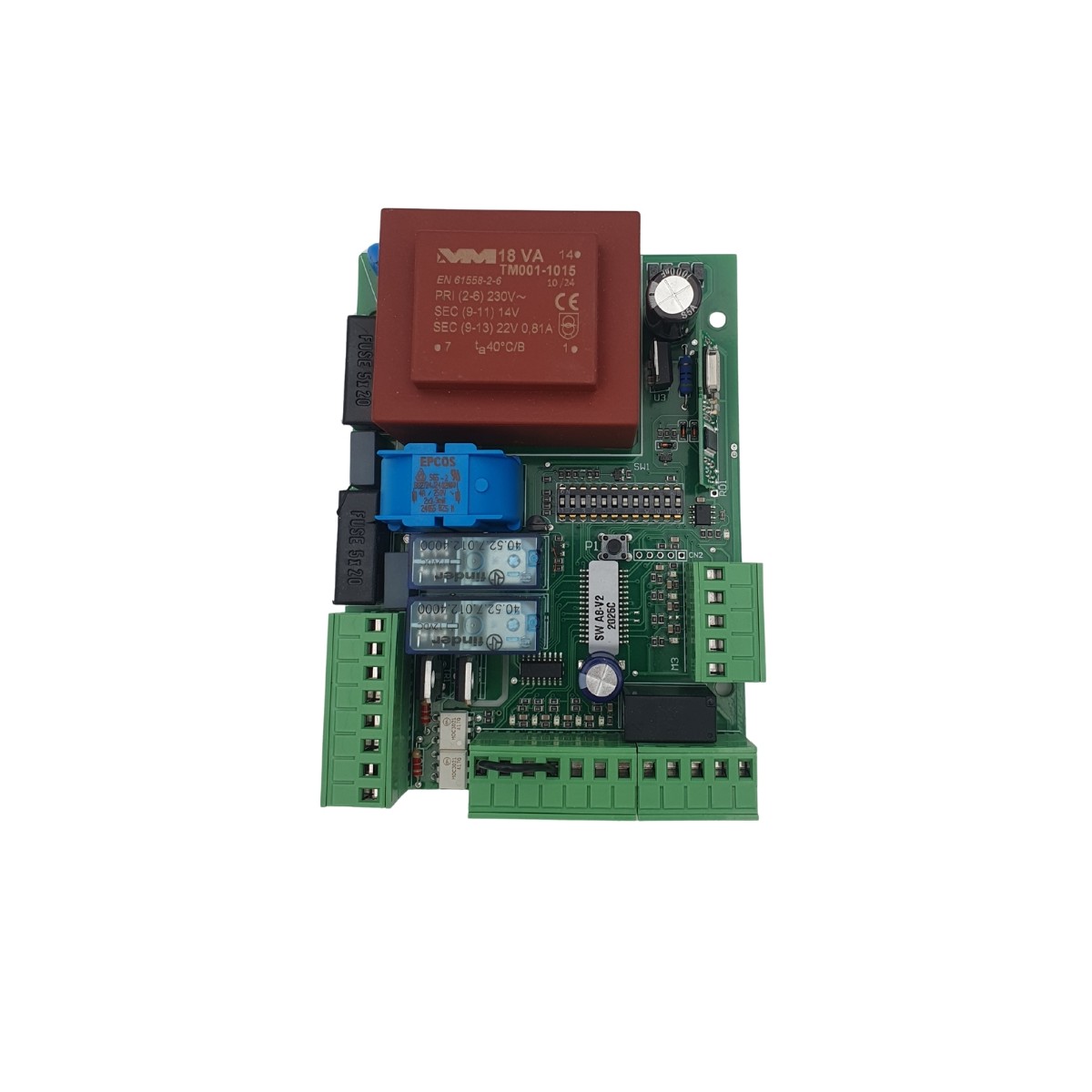

SW810-PCB ex ALCOR of BFT Central Electronic Panel Board 230v YAW-001000104

CODE: YAW-001000104 ex D113706 00002

ITEM: SW810-PCB

Replacement electronic card compatible with all old ALCOR control panels of the BFT those with green terminal blocks.

In particular, this control panel can be replaced, without changing the connections or terminal blocks, to the following models:

• ALCOR
• ALCOR 3
• ALCOR 6
• ALCOR N

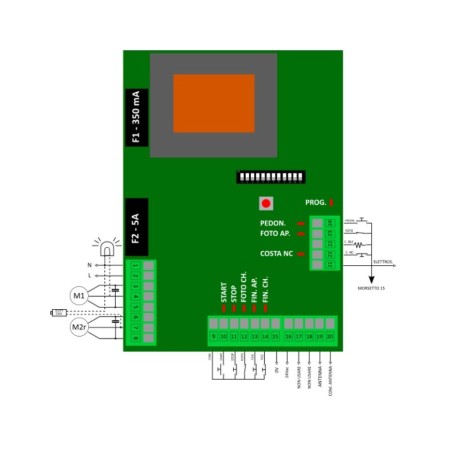

This control unit has been designed to be housed and fixed to the box in the same places as the old ALCOR. In addition, the terminal blocks are the same and therefore you will not even have to disconnect the wires but only detach the terminal blocks from the old control panel and put them in the new one.

Important improvements have been made starting from the delay of the door in opening that was not present in the old ALCOR control panels of the BFT .

There are also additional terminals where to connect the electric lock if present. In this way you will also remove the old ME board and the operation of the electric lock will be better and on time.

Remember that if you need to buy new remote controls you can buy our OPEN4 specially designed and manufactured for our radio electronics.

CHARACTERISTICS OF THE CARD

• Machine learning
• Automatic closing
• Condominium function
• Slowdown function (for electromechanical pistons)
• Water hammer when opening (facilitates the release of the electric lock)
• Final blow in closing (maximum power to close the electric lock correctly)
• Maintenance of the block (when the gate is stopped and closed every 180 minutes, it activates the motors. Function for hydraulic pistons)
• Photocell input excludable with DIP
• Limit switches excludable with DIP
• Thrust force adjustment
• Total Start
• Pedestrian start (opens only one door)
• Quick Close function
• Clock function (by connecting a timer the gate remains open for a pre-set time)
• Automatic closing when power returns
• Radio receiver - accepts 433MHz fixed code and rolling-code remote controls including MITTO of the BFT (max 200)

The plant is exclusive to UGATE, designed and manufactured in Italy, so the warranty period is 24 months.
