KIT-BE20/210 Heavy-duty Swing Gate Automation Kit 24V for Leaves up to 2.8 Meters

The BE20/210 kit by ROGER Technology is a professional solution for the automation of residential and condominium swing gates, equipped with super-intensive 24V BRUSHLESS motors with native digital encoder.

Thanks to brushless technology and advanced electronic management, this kit guarantees high performance, long life and a high number of daily cycles, making it suitable not only for private homes but also for small condominiums with frequent traffic.

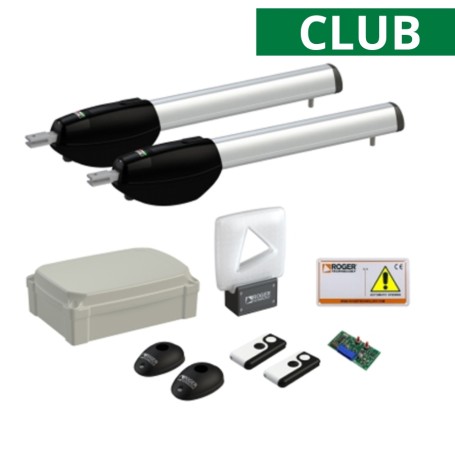

Composition of the BE20/210 kit

As reported in the official technical sheet

KIT-BE20210

, the kit consists of:

• 2x BE20/200 – Electromechanical BRUSHLESS actuator with low voltage, super intensive use, with native encoder on board, irreversible, for leaves up to 2.8 m with mechanical stops when opening and closing, complete with short brackets to be screwed on

• 1x B70/2ML/BOX – 24V digital controller for the management of 2 BRUSHLESS motors, in plastic case, with integrated 2-channel radio receiver

• 2x SYNUS/2 – 433.92 MHz bi-code radio remote control (fixed or rolling code), 2 channels, copy function

• 1x R90/F4ES – Pair of 24V AC/DC synchronised outdoor photocells (up to 4 manageable pairs)

• 1x FIFTHY/24 – 24V LED flashing light with integrated antenna

• 1x R99/C/001 – "Automatic Opening" signage

Main technical features

Technical data extracted from the official product sheet

KIT-BE20210

:

• Line power supply: 230V AC – 50/60Hz

• Motor power: 24V

• Power: 200W

• Stand-by consumption: 0.5W

• Frequency of use: Intensive use

• Thrust: 100 – 2200 N

• Gearbox type: Irreversible

• Manoeuvring speed: 1.66 cm/s

• Opening time: 15 – 25 s

• Stroke: 400 mm

• Encoder: Native digital SENSORLESS at 48 PPR

• Manoeuvring cycles: up to 800 cycles/24h non-stop

• Operating temperature: -20°C / +55°C

• Degree of protection: IP44

• Actuator dimensions: 867 x 105 x 155 mm

• Packed kit weight: 20.3 kg

Brushless technology: why it's superior

BRUSHLESS motors represent a technological leap compared to traditional brushed motors:

• longer life

• Less mechanical wear

• Better torque control

• precision in slowing down and reversing

• Intelligent management via digital encoder

The native SENSORLESS digital encoder with 48 pulses per revolution allows extremely accurate control of the movement of the leaf, increasing safety and reliability.

Ideal for small condos

Thanks to the ability to reach up to 800 manoeuvring cycles per day (24h non-stop), this kit is perfectly installable:

• in private homes with frequent use

• in semi-detached houses

• in small apartment buildings with shared access

The irreversible structure guarantees the mechanical locking of the door when closing without the need for additional electric locks (except in special cases).

Compatible with ROGER solar system

A further advantage of this automation is the possibility of integration with the ROGER solar system, which allows the system to be autonomous from the electricity grid.

This solution is particularly suitable for:

• in contexts where 230V power supply is not available

• in rural or isolated areas

• to reduce energy consumption

• with a view to sustainability and energy independence

The 24V power supply and the very low stand-by consumption (0.5W) make the BE20/210 kit technically compatible with dedicated solar energy systems.

Installation

The kit is designed for swing gates with:

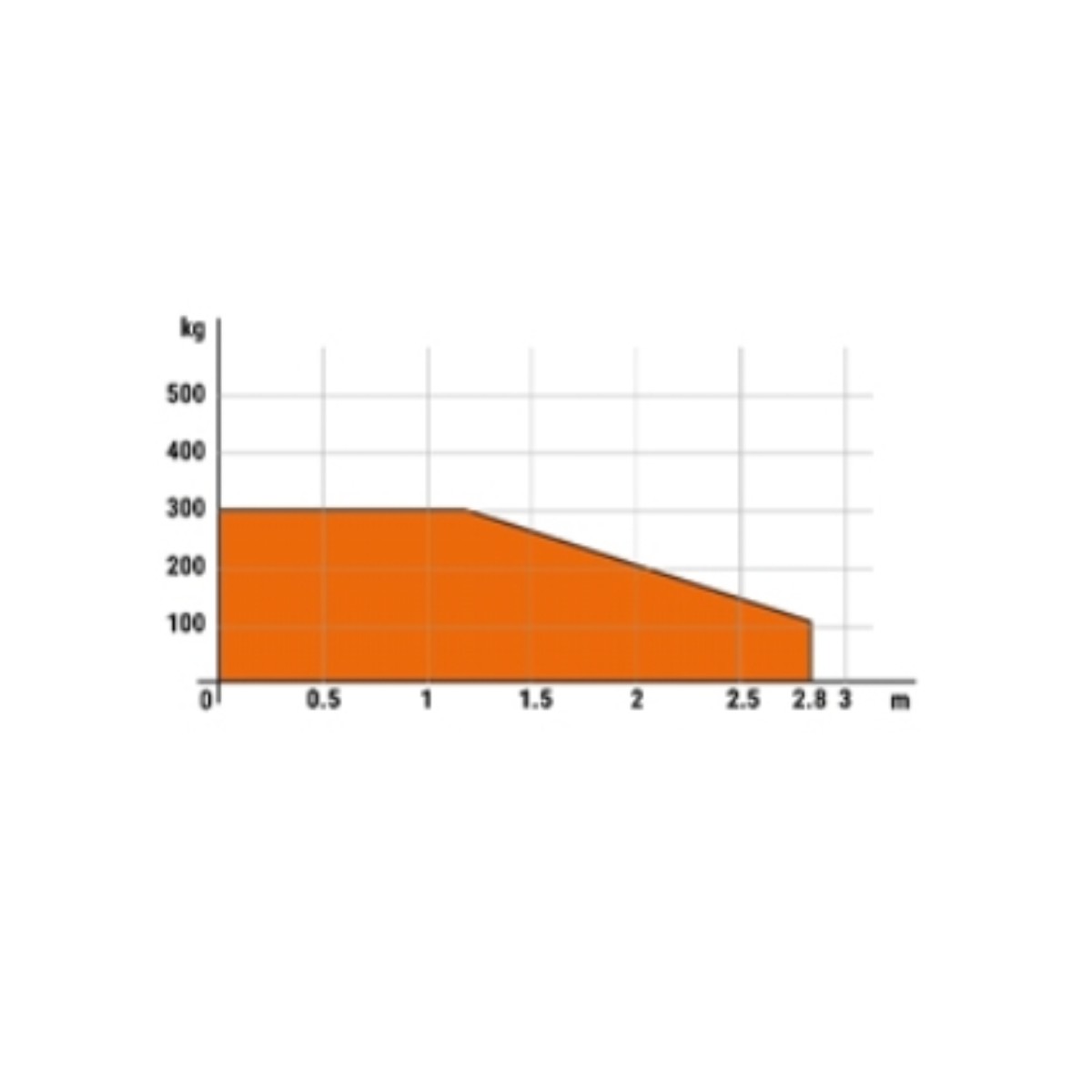

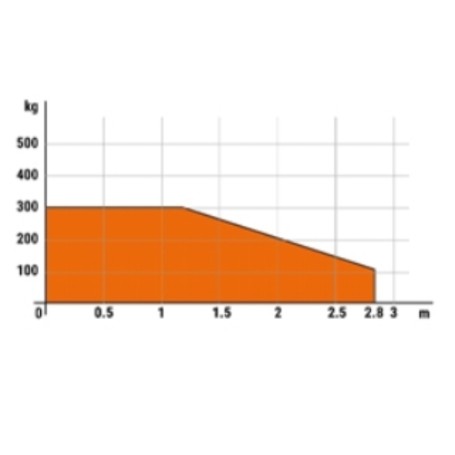

• Sash up to 2.8 meters

• presence of mechanical stops when opening and closing

Dedicated accessories are available such as the short bracket kit to be welded (KT206) for special installations.

It is a professional product, recommended for qualified installers who work in the residential and condominium sectors.

The BE20/210 kit is a high-tech solution, ideal for those looking for reliable, intensive automation designed for advanced integrations such as the solar system.
