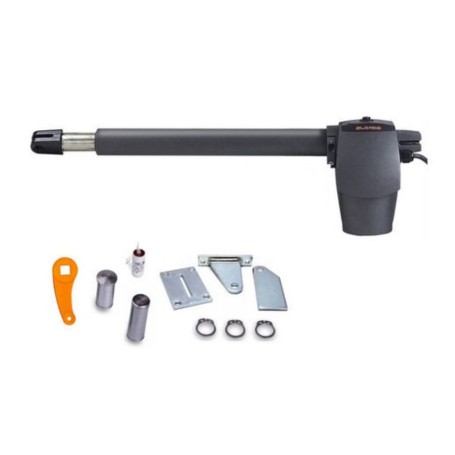

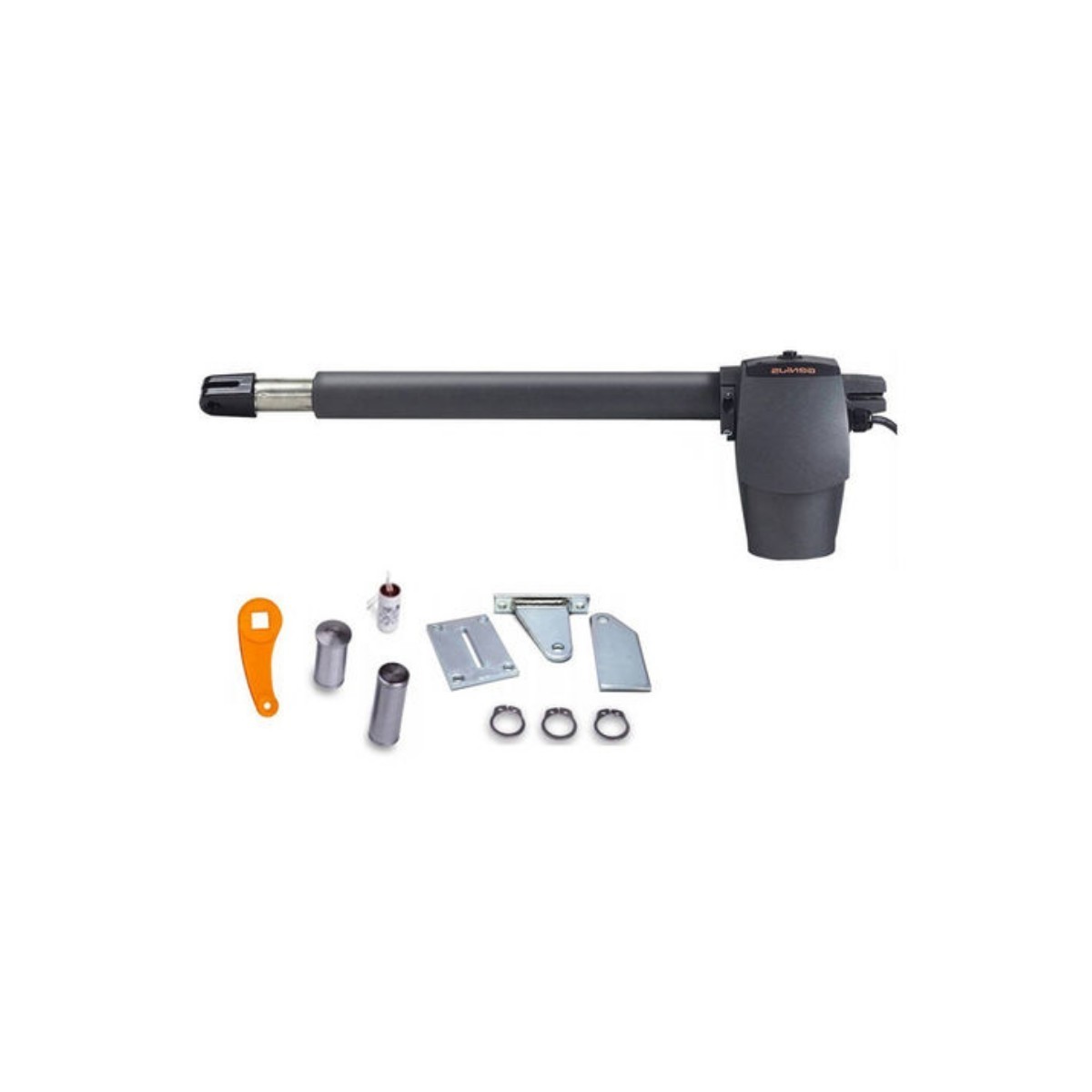

Motor Actuator for swing gates G-BAT 400 DX 6170030 230v FAAC GENIUS

GENIUS 6170030 G-Bat

EX 00058K0140 BAT 400 DX EURO

- Available in 230V and 24V version
- The 24V model incorporates the ENV function (Virtual Nominal Encoder) - PATENT
- Doors up to 3 (230V and 24V) and 4 meters (only 230V)
- G-WAY system in the 24V version (with Brain 15 card) or in the 230V version (with Brain 19 board)
- Safety PRO-CODER (with Brain 19 board)
- Easy to use lever unlock
- Internal kinematics composed of bronze crown and steel worm screw
- Slowdowns in opening and closing in both versions
- Optional stem cover crankcase.

SPECIFICATIONS:
Power supply (V): 230
Electric motor (V): 230
Nominal power (W): 280
Current (A): 1.2
Thermo-protection (°C): 140
Inrush capacitor (μF): 8
Thrust (from N): 350
Stroke (mm): 400
Speed (cm/sec.): 1.6
Frequency of use at 20°C: S3 - 30%
Operating Temp (°C): -20 +55
Degree of protection: IP54
Weight (kg): 7

Warranty 24 Months
