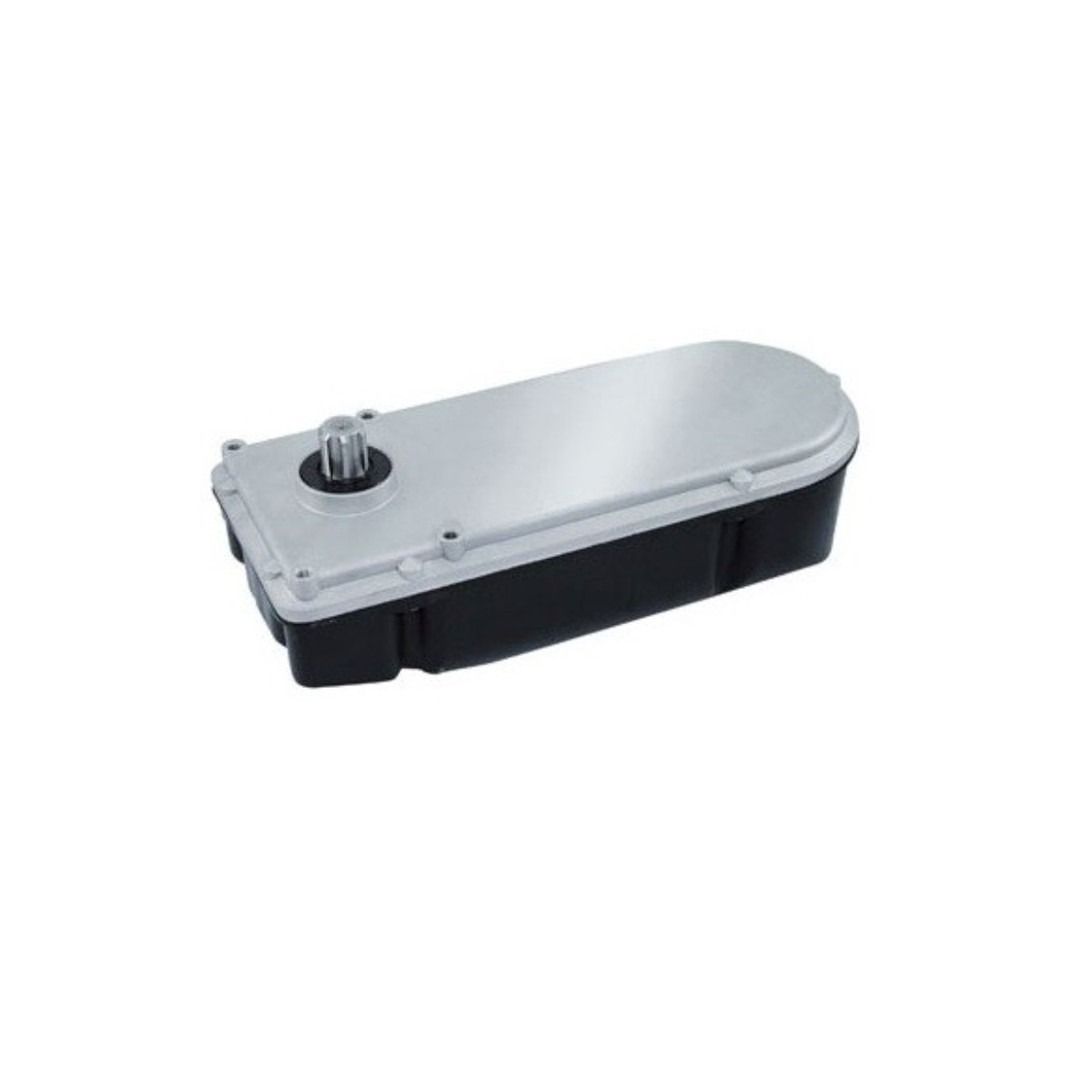

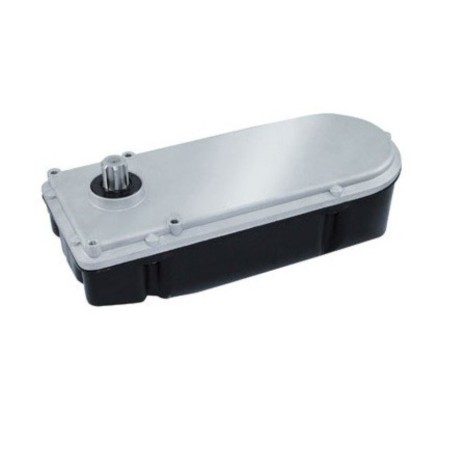

P-650R18L – 230V Underground Gearmotor for Hinged Doors up to 1.8 m – 5 m Cable

The P-650R18L is the 5-meter cable version of the R18 series 230V underground gearmotor, designed to automate residential swing doors up to 1.8 meters. The 230V electromechanical technology offers superior thrust compared to low-voltage motors, while maintaining compact dimensions and a completely invisible aesthetic.

Thanks to the longer cable, this version is particularly suitable when the control unit cannot be located near the motor installation point. The door opening is smooth and stable, with an average time of about 22 seconds. The 360° rotation allows maximum flexibility without additional accessories.

Technical features

• Motor power supply: 230 V AC – semi-intensive use

• Maximum leaf length: 1.8 m

• Maximum leaf weight: 200 kg

• Installation: underground

• Technology: electromechanical

• Opening time: approx. 22 seconds

• Connection cable length: 5 meters

• Rotation possible: up to 360°

• Built-in manual release

Benefits

• Version with extended cable, ideal for systems with longer distances

• Compact and completely invisible motor

• More power thanks to 230V operation

• Unlimited door opening (360°)

• Manual release to ensure opening even in an emergency

• Perfect for residential installations with high reliability needs

Important Notes

• Foundation box and release system NOT included

• Compatible with 230V AC control panels

• Ideal solution when the distance between the control unit and the motor exceeds the standard cable length
