FAAC 107721 – Underground hydraulic actuator 750 SB LT 0.75 (230V, 800 kg per leaf)

The FAAC 107721 actuator – model 750 SB LT 0,75 is an underground hydraulic device for swing gates, designed to combine power, silence and aesthetic invisibility.
It is the ideal solution for heavy gate automations or prestigious doors, where architectural integration is a fundamental requirement.

Thanks to its robust and compact design, the underground control unit offers high mechanical efficiency and smooth, quiet operation.
The integrated hydraulic system ensures continuous lubrication and cooling, minimizing maintenance and ensuring constant performance over time, even in extreme weather conditions (from -20°C to +55°C).

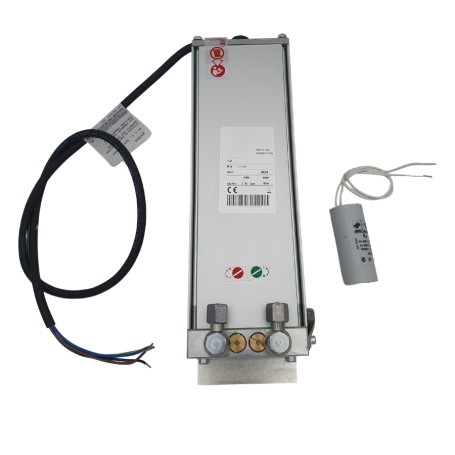

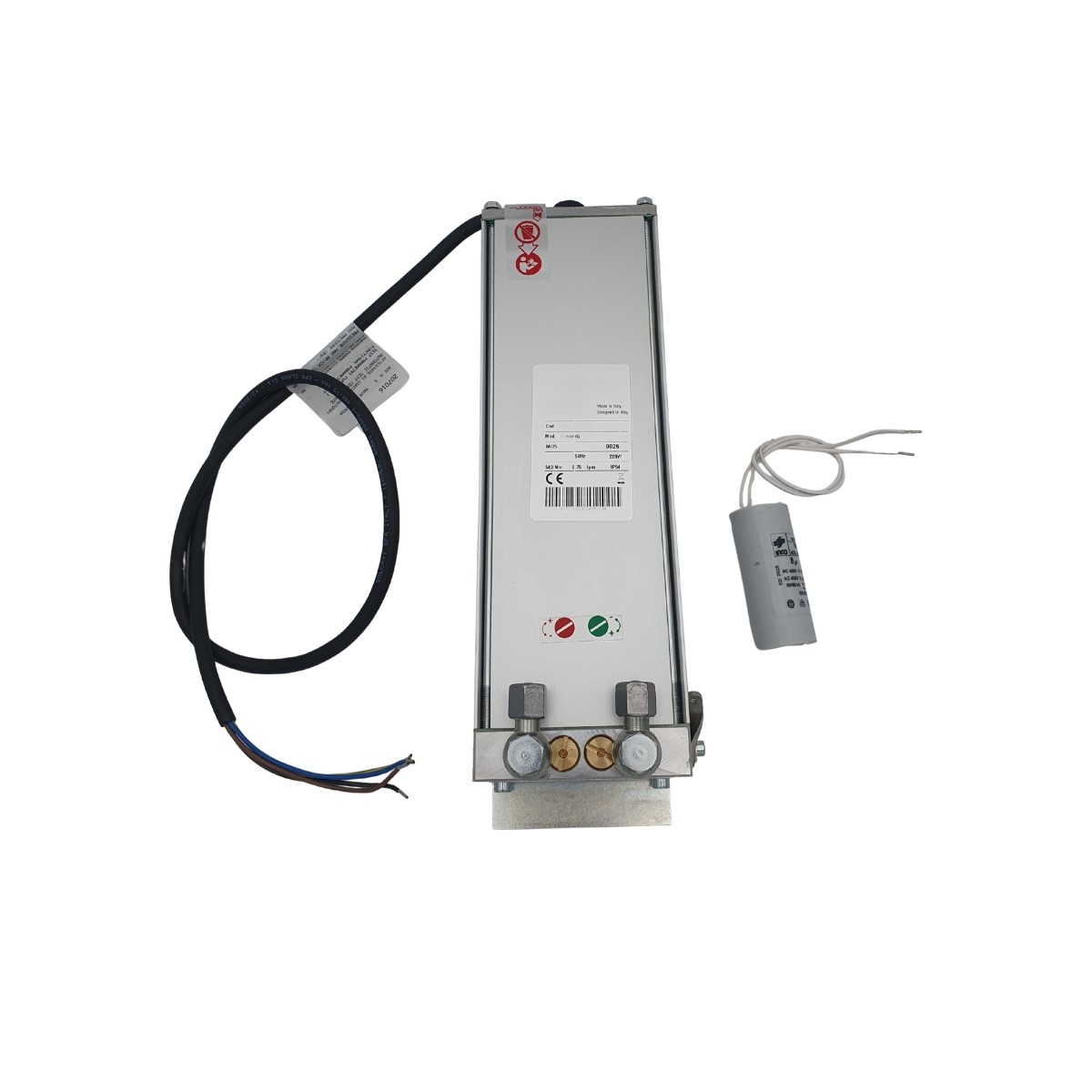

The 750 SB model is the version without hydraulic lock, supplied complete with an 8 μF 400V condenser.
Safety is guaranteed by high-sensitivity by-pass valves, which protect against any shocks or obstacles, and by a manual release system with key, for emergency use.

Thanks to FAAC hydraulic technology, this actuator ensures reliability and low consumption, making it ideal for high-end residential and condominium applications.

Main technical features

• Model: FAAC 750 SB LT 0.75

• Product code: 107721

• EAN: 8055195002966

• Engine type: Single-phase asynchronous

• Supply voltage: 230 V~ 50 Hz

• Power consumption: 220 W

• Motor-pump flow rate: 0.75 l/min

• Maximum angular velocity: 7.8°/s

• Operating temperature: -20°C ÷ +55°C

• Temperature protection: 120°C

• Degree of protection: IP55

• Weight: 7.5 kg

• Oil type: FAAC HP OIL

• Module dimensions (L × D × H): 353 × 245.6 × 141.5 mm

• Maximum leaf length: 2.5 m

• Maximum leaf weight: 800 kg

• Hydraulic Block: Absent (SB version)

• Equipment: Control unit + Capacitor 8 μF 400 V

Strengths

• Invisible and silent underground system

• Suitable for large or prestigious gates

• Anti-crush safety with integrated by-pass valves

• Extreme reliability and minimal maintenance

• Weatherproof and stable operation in all conditions

• Technology FAAC synonymous with quality and durability

Recommended Applications:
Automations for single or double swing gates, residential and condominium, with high aesthetic requirements or invisible installations.
