FAAC 108760 Underground Hydraulic Jack for 760 – Original Spare Part (Ex 108758)

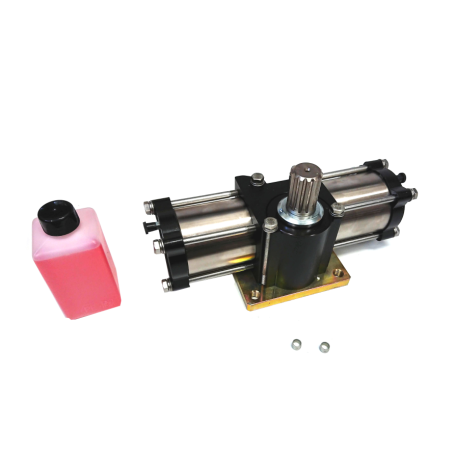

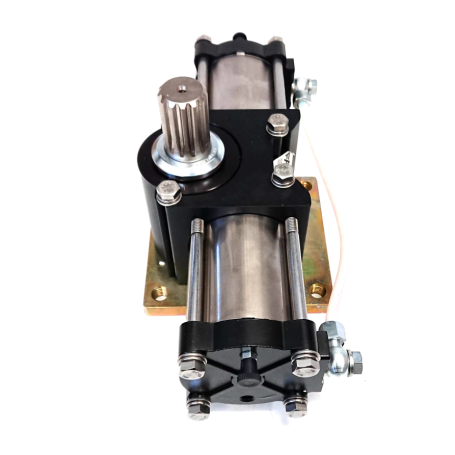

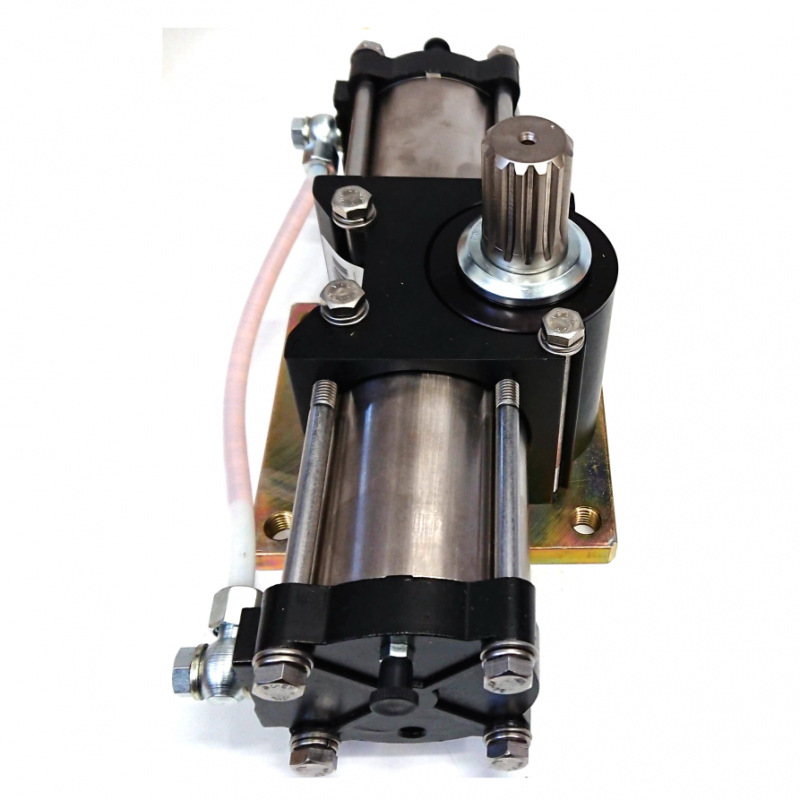

The underground jack FAAC code 108760 is the original spare part designed for hydraulic operators of the FAAC 760 series. This component replaces the previous 108758 code, maintaining all the technical and dimensional characteristics to ensure perfect compatibility.

It is an essential spare part for maintenance work on existing systems, ideal when the original jack is worn, damaged or no longer efficient. The replacement takes place without the need for structural modifications, making it a quick and safe solution for automation restoration.

The FAAC hydraulic system is known for its high reliability and durability, and this jack maintains the manufacturer's quality standards, ensuring constant performance even on dated systems.

Technical features

• Original FAAC underground hydraulic jack
• Product code: 108760
• Previous code: 108758
• Compatibility: 760 Series FAAC Operators
• Maximum opening angle: up to 180°

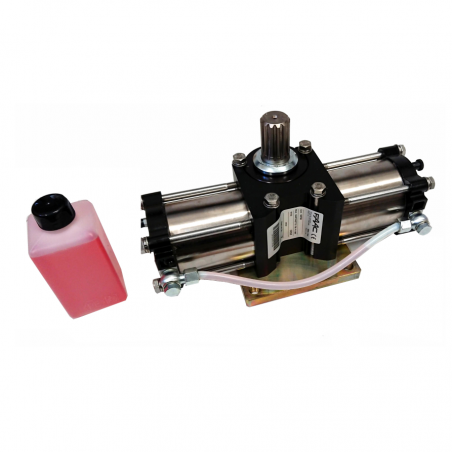

• Supplied with circuit top-up oil
• Warranty: 24 months
• EAN: 8055195003086

Content and important notes

• The product is supplied without a load-bearing box (foundation box)
• Does not include grooved bushing

Installation and Maintenance Warnings

Before installing the new jack, it is essential to check the condition of the existing load-bearing body. Any sludge residue, oxidation, or debris must be removed thoroughly to avoid abnormal wear or malfunction.

During the replacement of the jack, it is normal for part of the hydraulic oil to be dispersed: for this reason, FAAC provides a sufficient amount of oil for the correct topping up of the circuit.

To ensure optimal system performance, it is recommended to also check the associated electrical components. In particular, on older systems, replacing the capacitor can significantly improve the starting phase of the motor. The recommended value is 8 μF (microfarad).
